Cruise Control - Inoperative/Malfunctioning

CRUISE CONTROL INOPERATIVE/MALFUNCTIONING

DIAGNOSTIC AIDS

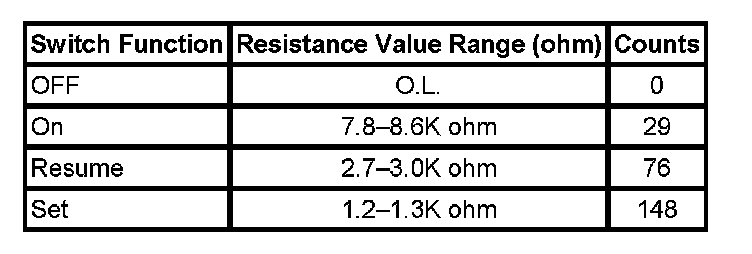

The following are the correct switch resistance value ranges and the correct counts that are displayed in the Cruise parameter in the Body and Accessories / Cruise Control / IPM / Inputs data list, when each switch is pressed individually. If no switch is pressed the resistance value should be infinite.

For an intermittent condition, refer to Diagnostic Aids for Circuit Testing and Wiring Repair procedures.

TEST

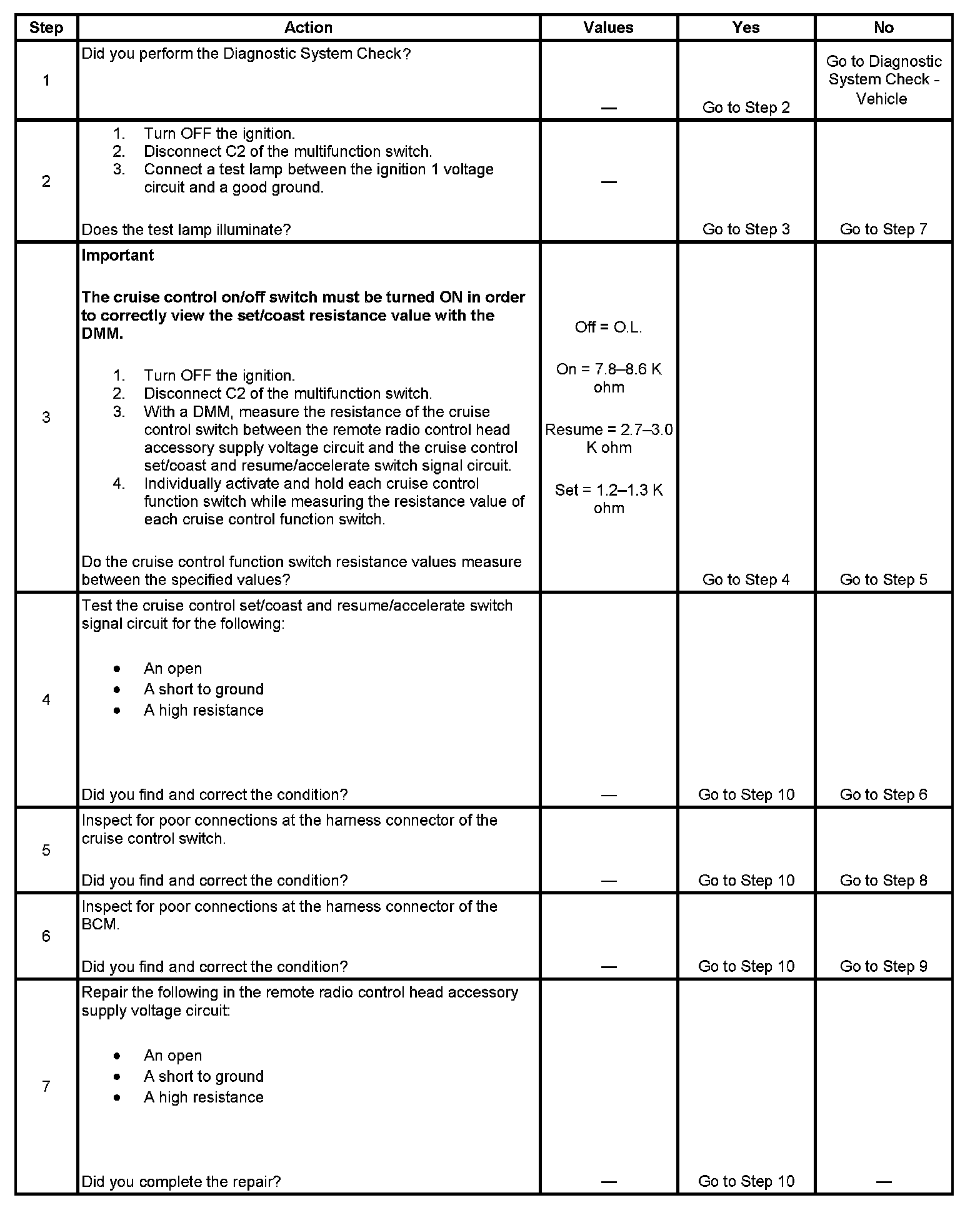

Steps 1 - 7:

Steps 8 - 10:
