Audio Amplifier - C2

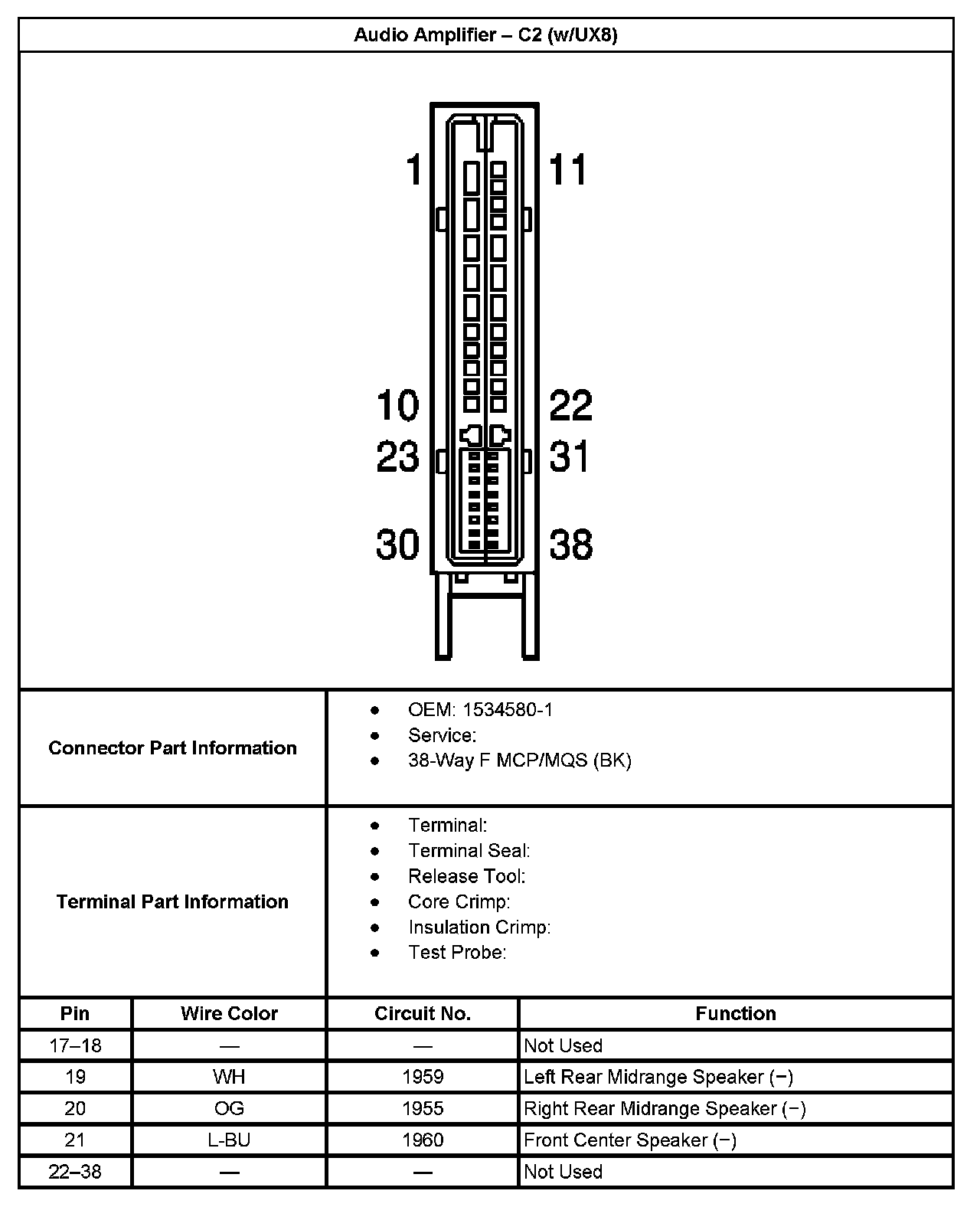

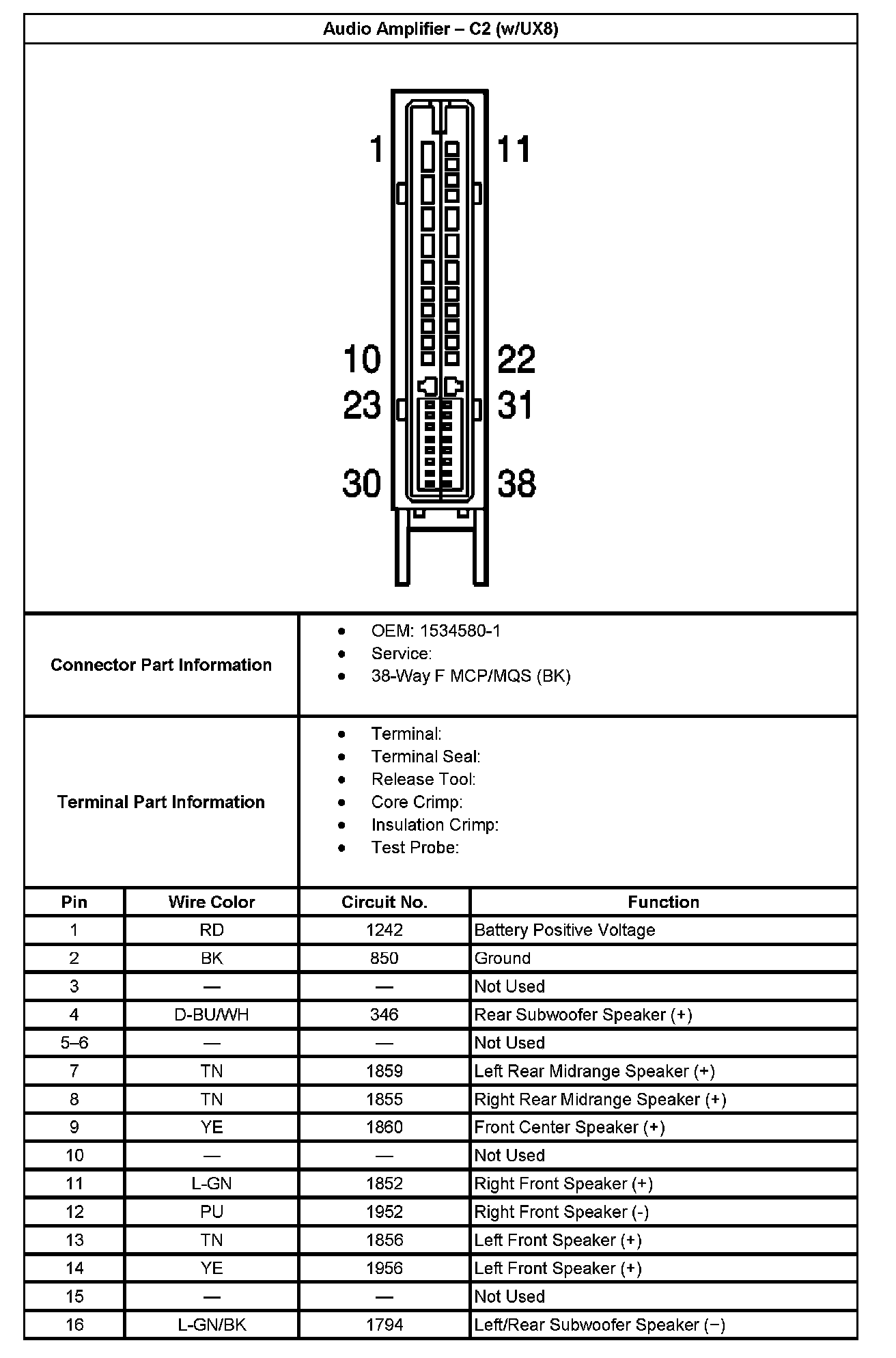

Audio Amplifier - C2 (With RPO Code UX8):



Audio Amplifier - C2 (With RPO Code UX8):

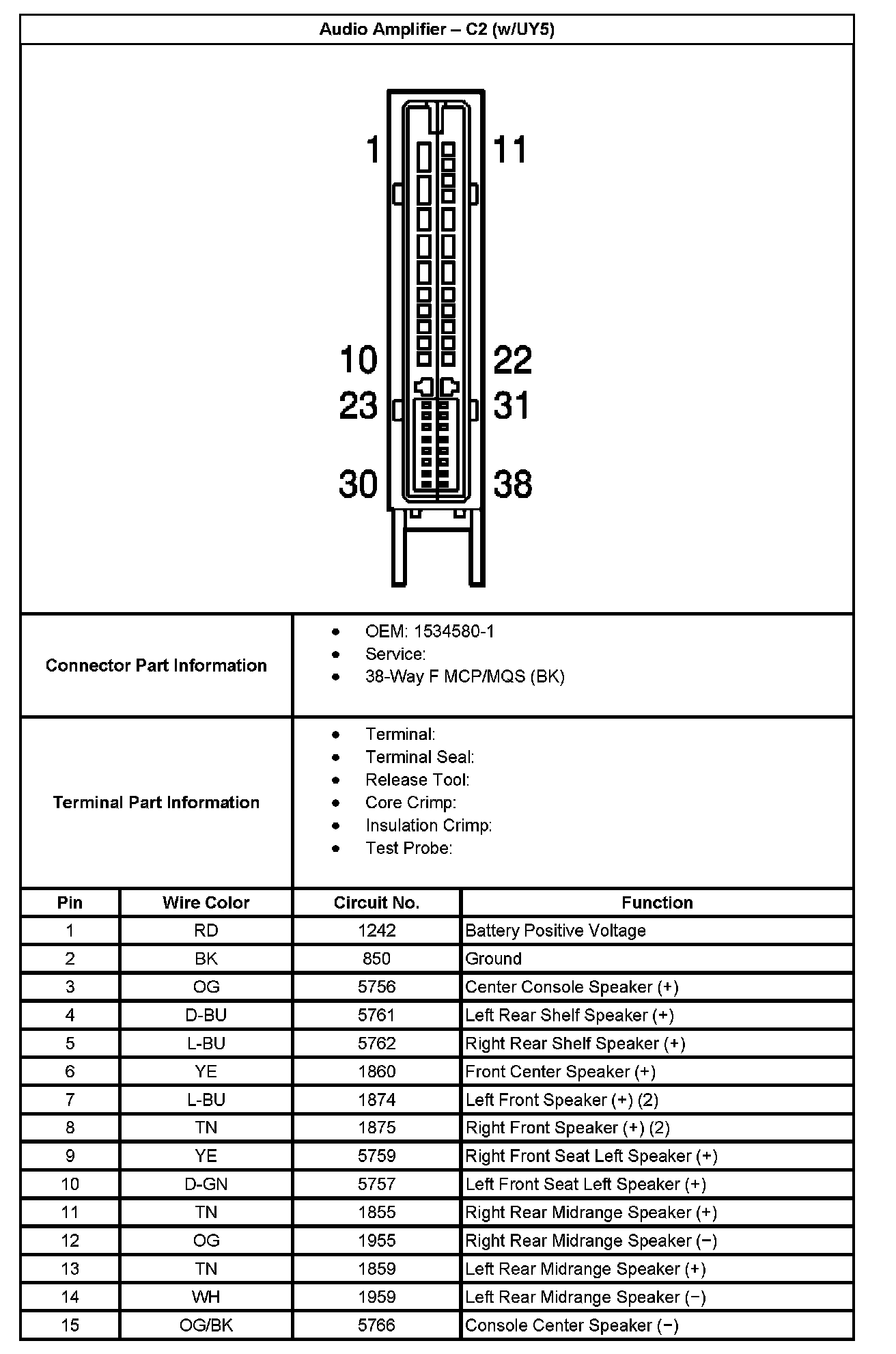

Audio Amplifier - C2 (With RPO Code UY5):

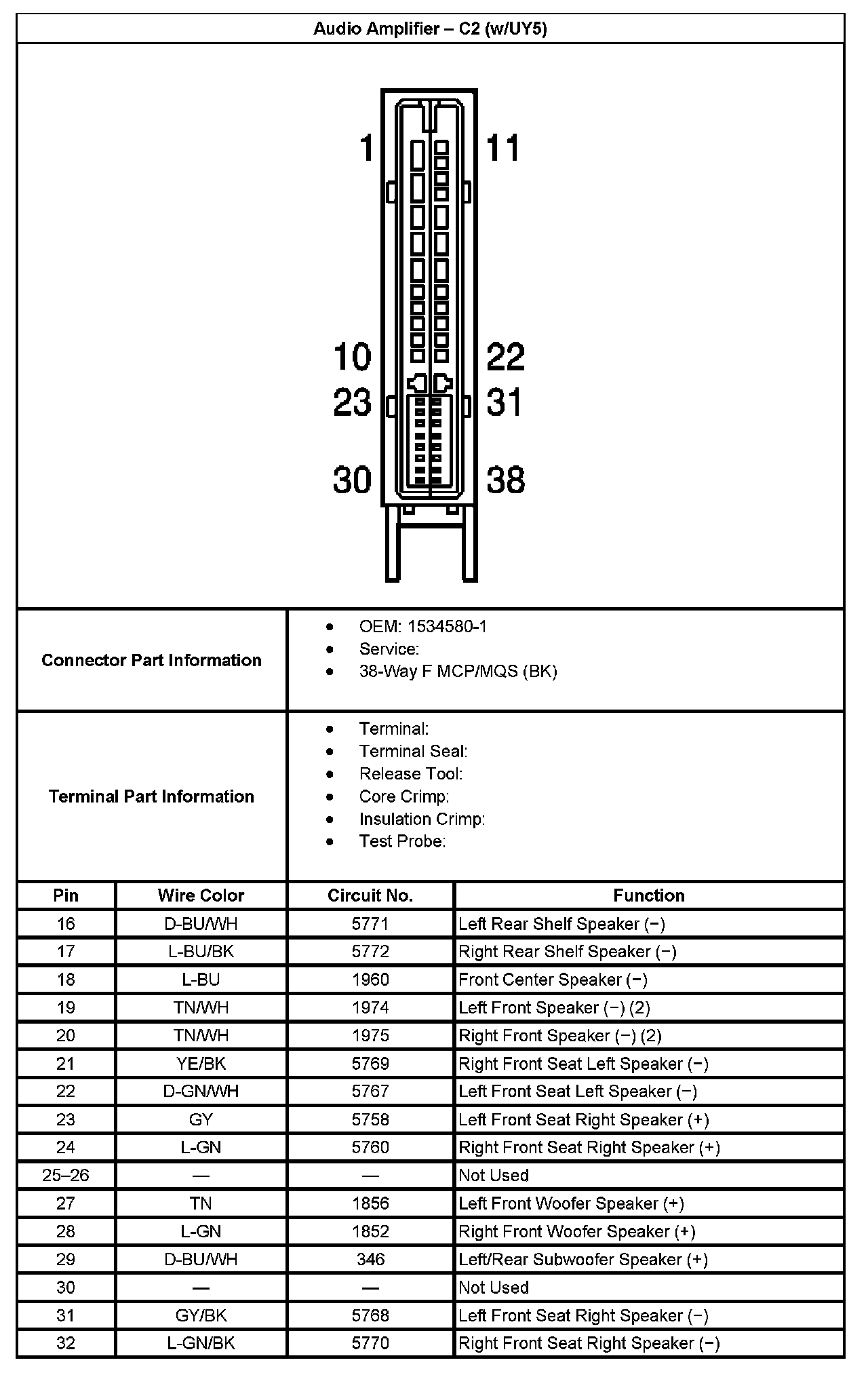

Audio Amplifier - C2 (With RPO Code UY5):



Audio Amplifier - C2 (With RPO Code UY5):
