Radiator Cooling Fan
Radiator Cooling Fan

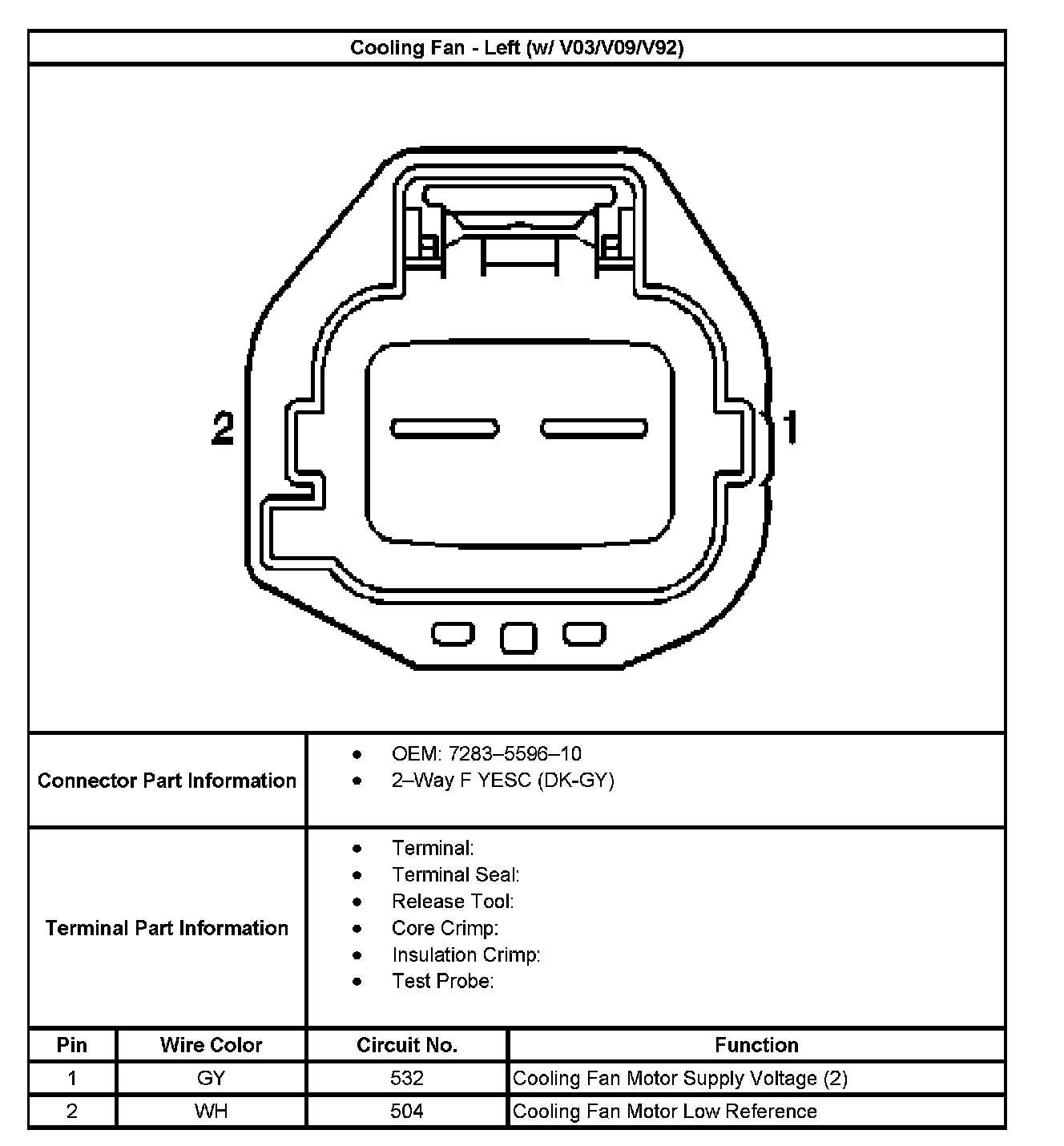

Cooling Fan - Left (w/ V03/V09/V92):

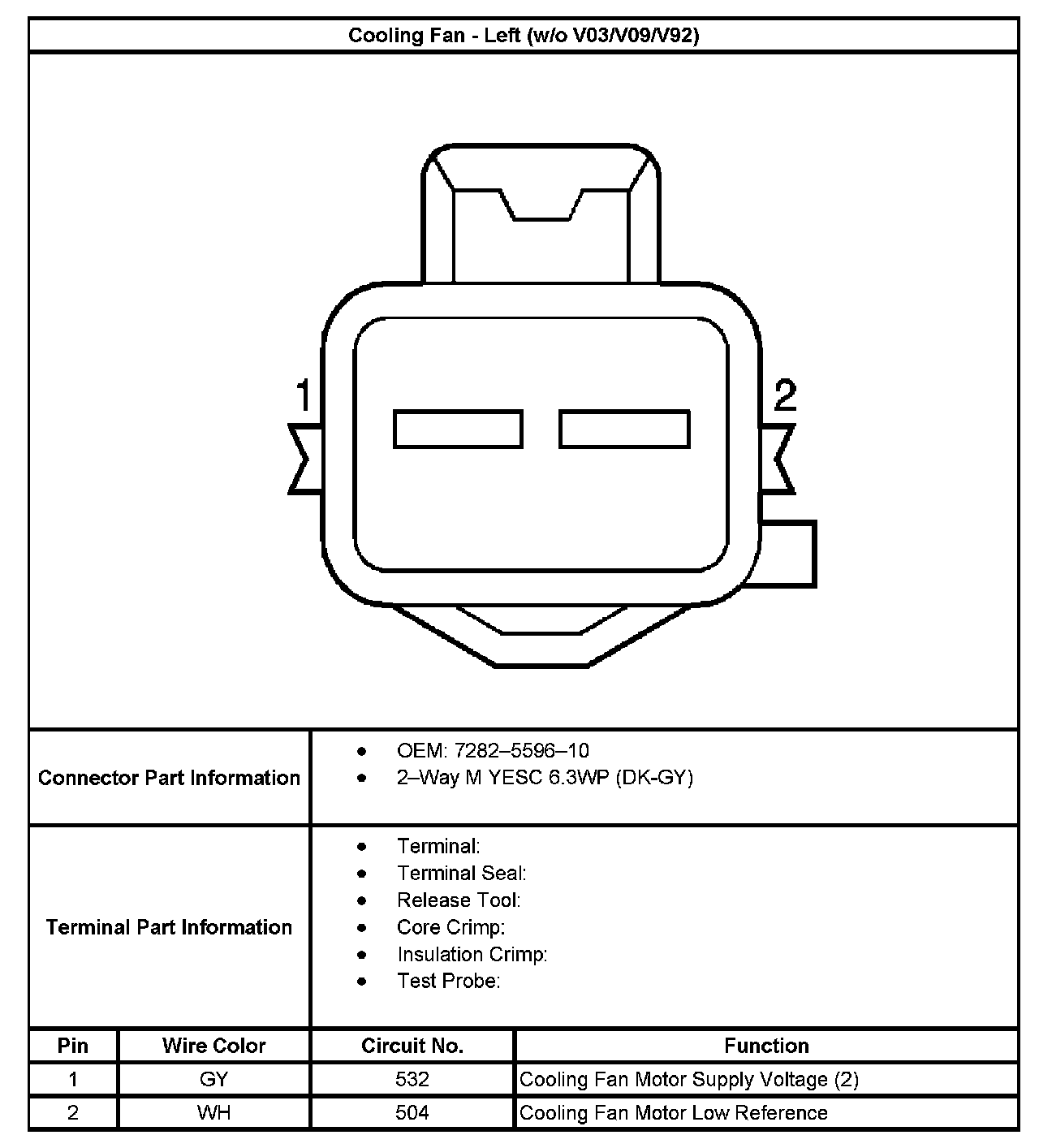

Cooling Fan - Left (w/o V03/V09/V92):

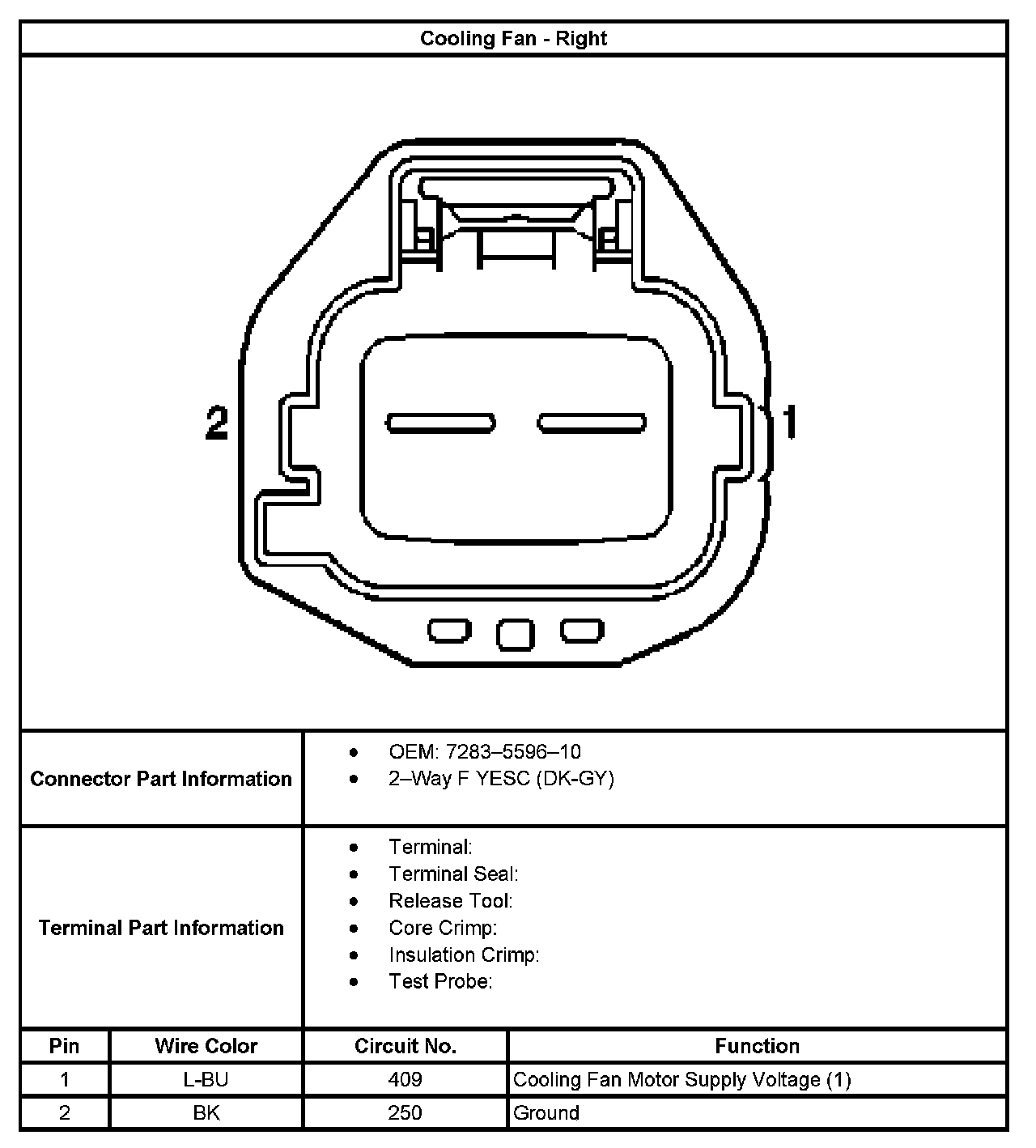

Cooling Fan - Right:
