Home >> Cadillac >> 2005 >> STS V8-4.6L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> Center I/P

Center I/P

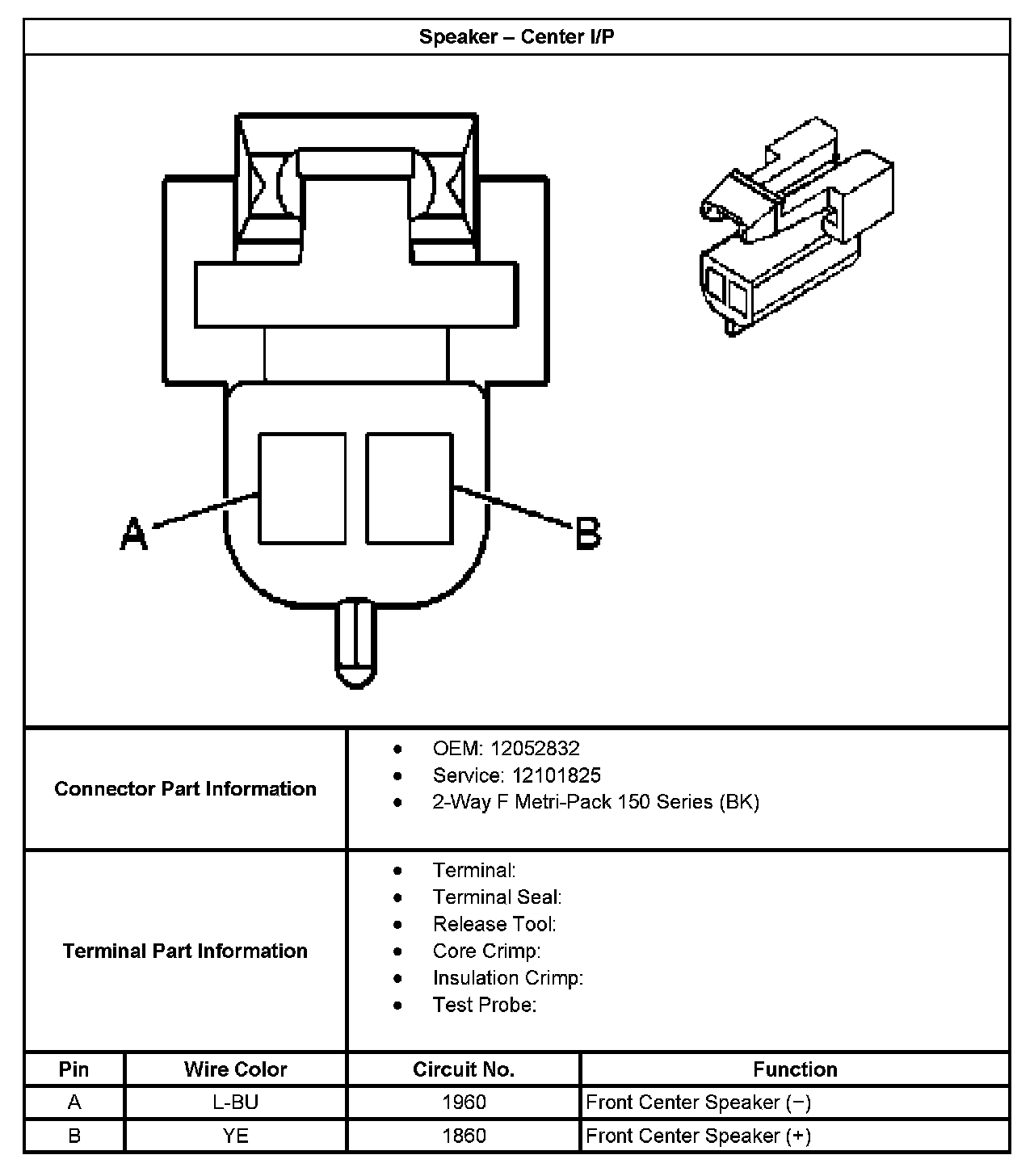

Speaker - Center I/P:
