Home
>>
Cadillac
>>
2005
>>
STS V8-4.6L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wiper and Washer Systems
>>
Rain Sensor
Rain Sensor

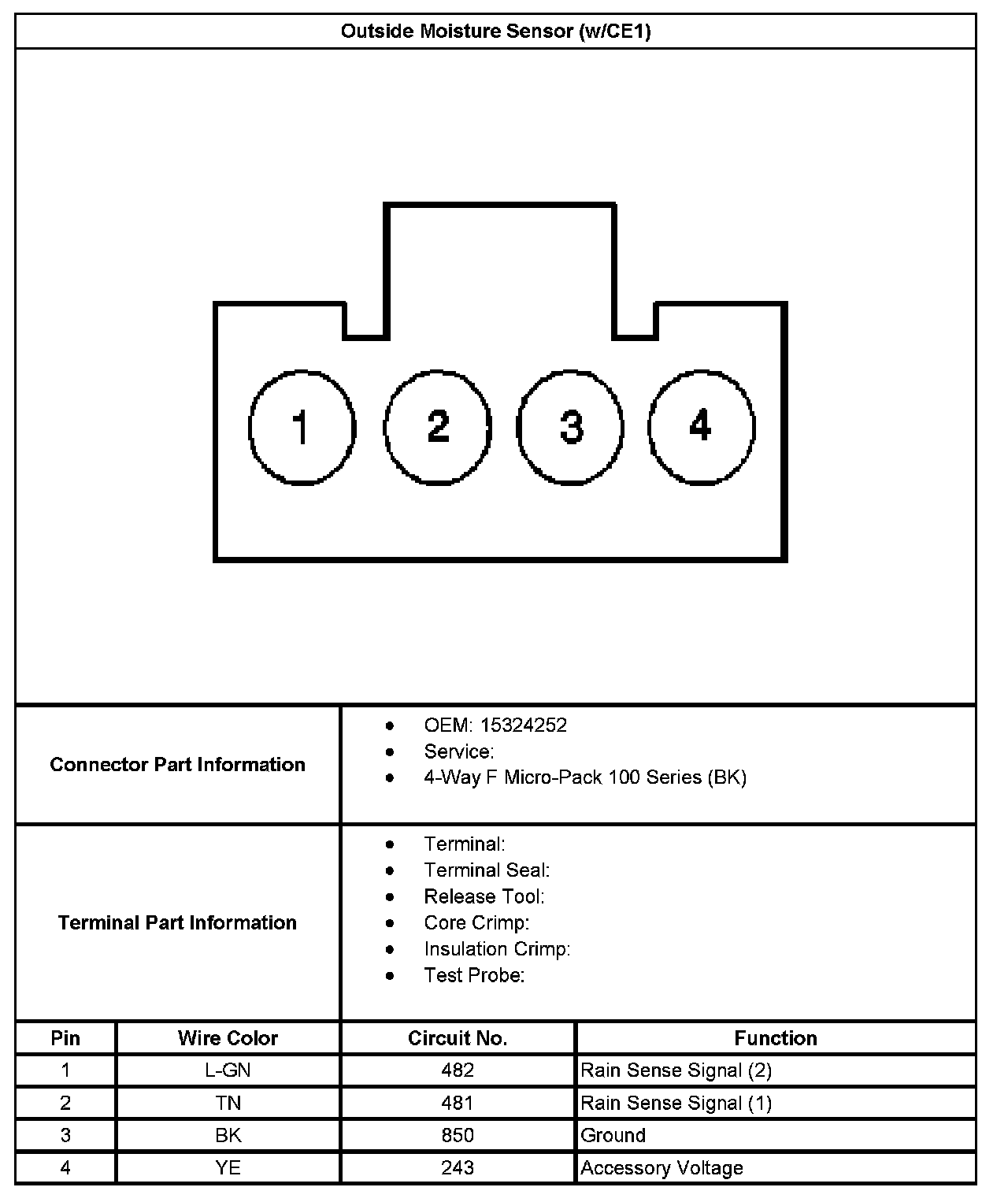

Outside Moisture Sensor (with RPO Code CE1):
