Scan Tool Data List
Scan Tool Data List

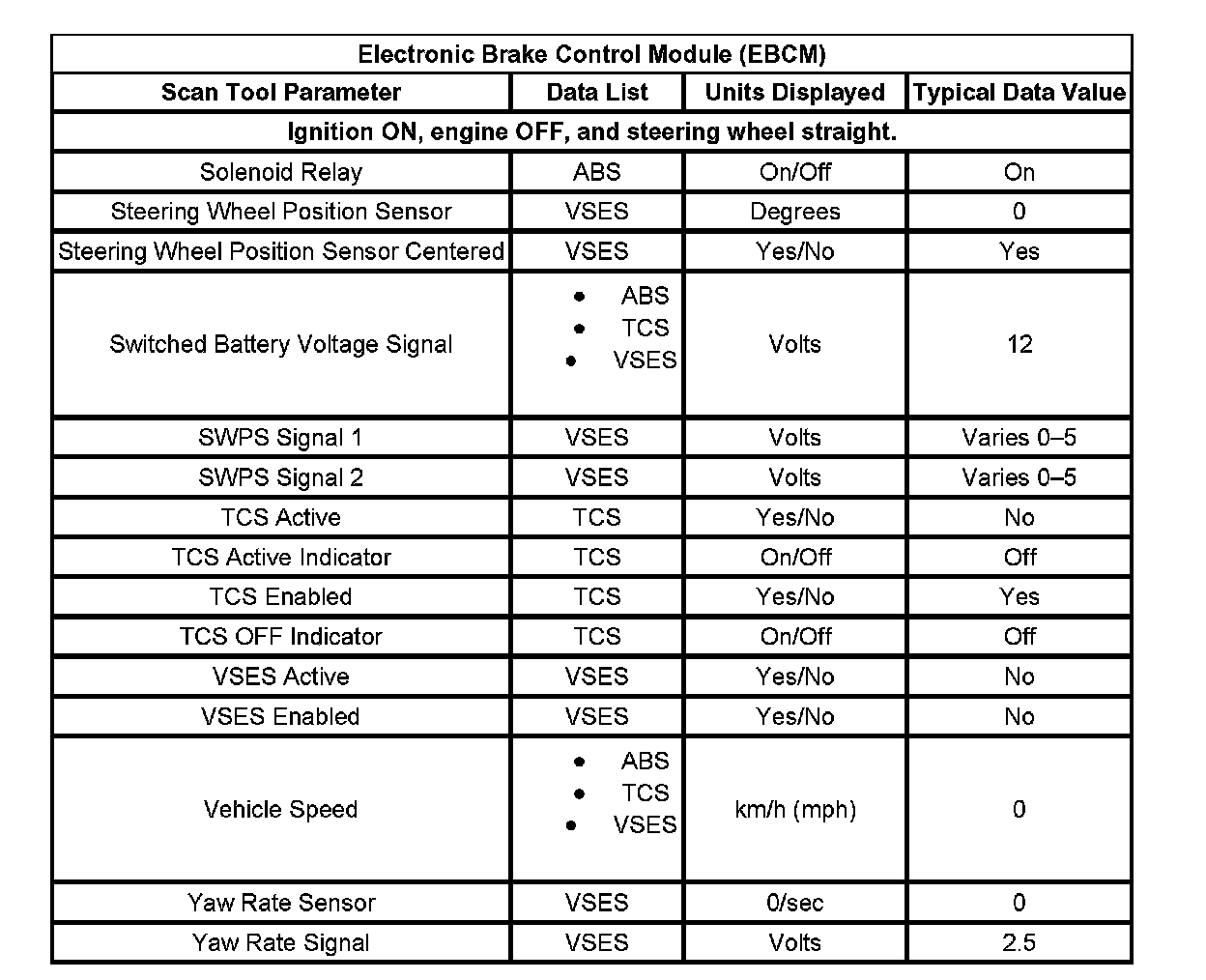

Electronic Brake Control Module (EBCM):

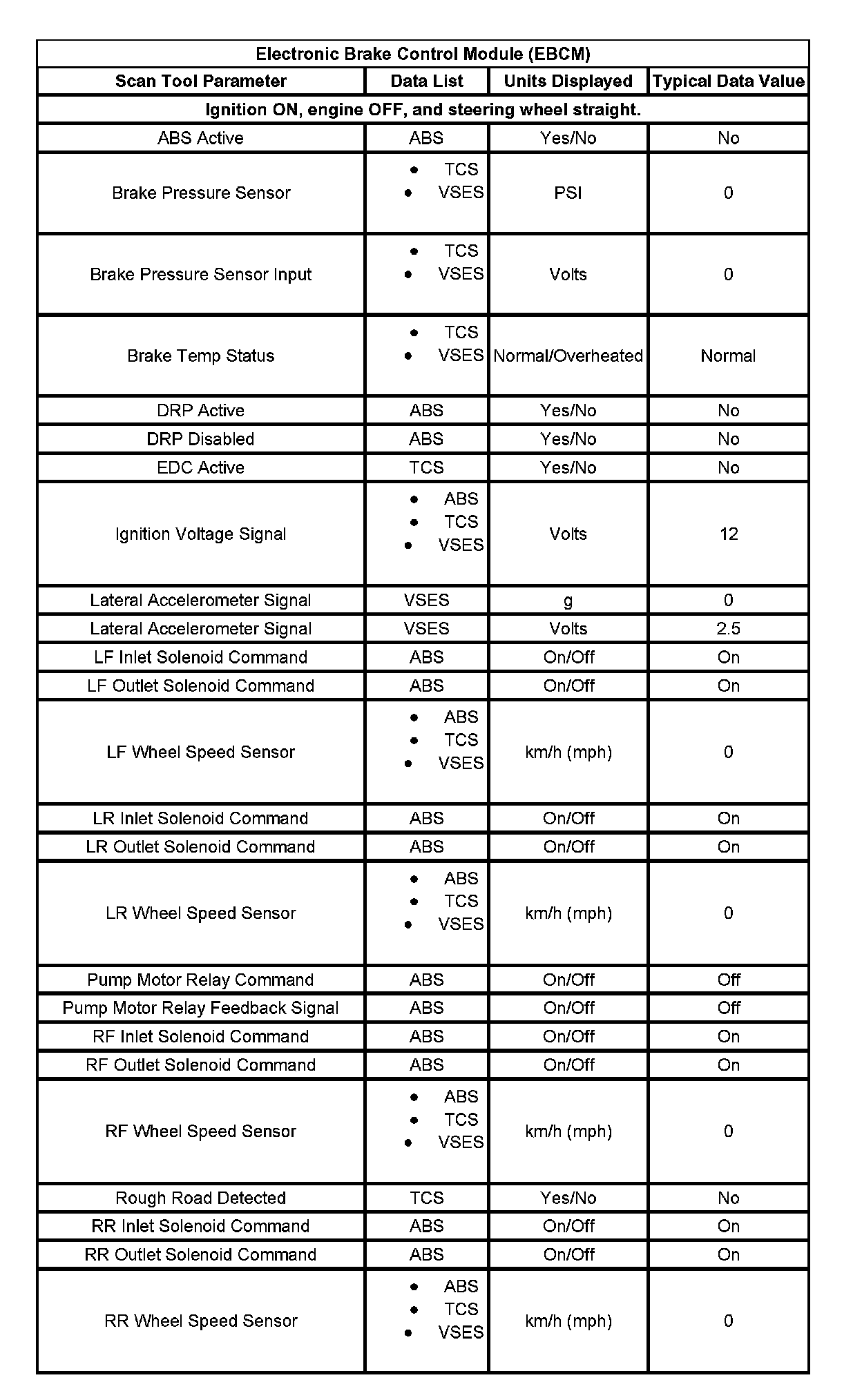

Electronic Brake Control Module (EBCM):

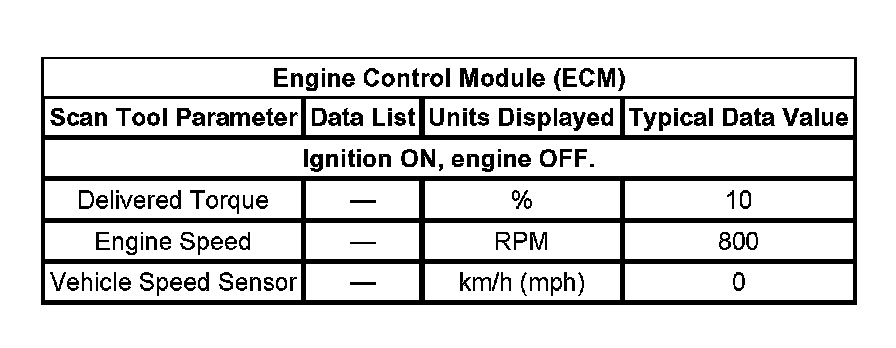

Engine Control Module (ECM):

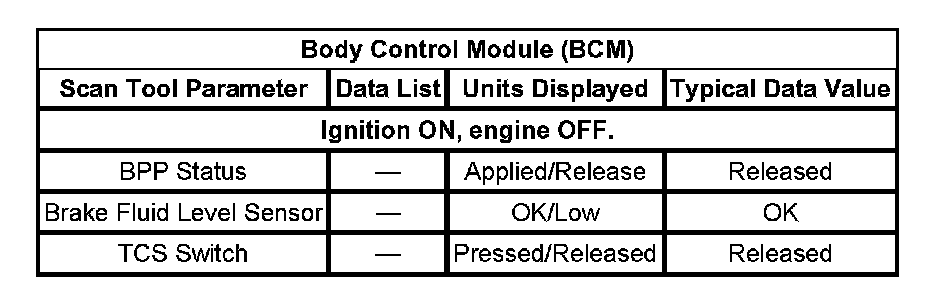

Body Control Module (BCM):
