Oil Pump, Engine

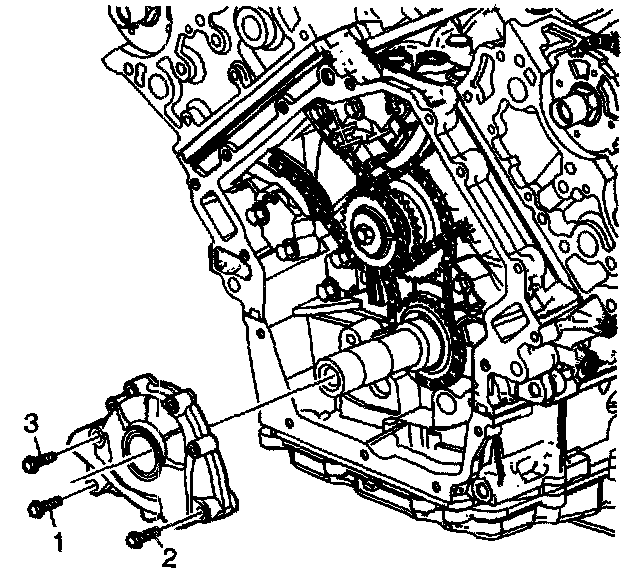

Tighten the Oil Pump bolts in the sequence (1, 2, 3) shown.

First Pass
Tighten the oil pump mounting bolts in sequence to 10 Nm (89 inch lbs.).

Final Pass
Tighten the oil pump mounting bolts in sequence an additional 35 degrees using the J 45059.
