Steering: Locations

Steering Controls Component Views

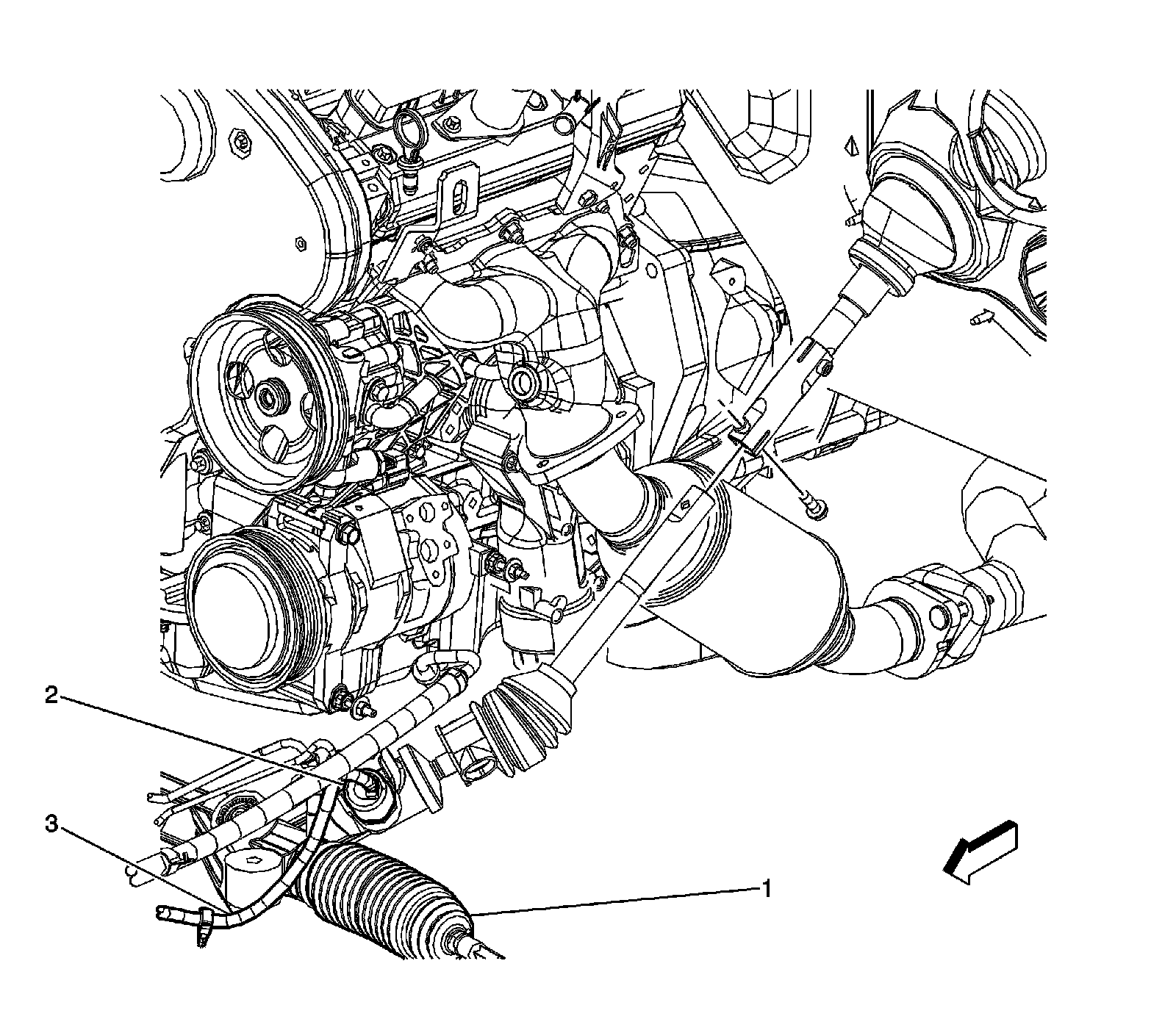

Variable Effort Steering Actuator (LHD w/FE3):

1 - Power Steering Rack (LHD)
2 - Variable Effort Steering Actuator (LHD)
3 - Variable Effort Steering Actuator Wiring Harness





1 - Power Steering Rack (RHD)
2 - Variable Effort Steering Actuator (RHD)
