ABS Component Views

ABS Component Views

Front Engine Compartment:

1 - Brake Fluid Switch
2 - Suspension Position Sensor-LF
3 - Wheel Speed Sensors (WSS)-LF
4 - Suspension Damper-LF
5 - Suspension Damper-RF
6 - Wheel Speed Sensors (WSS)-RF
7 - Suspension Position Sensor-RF

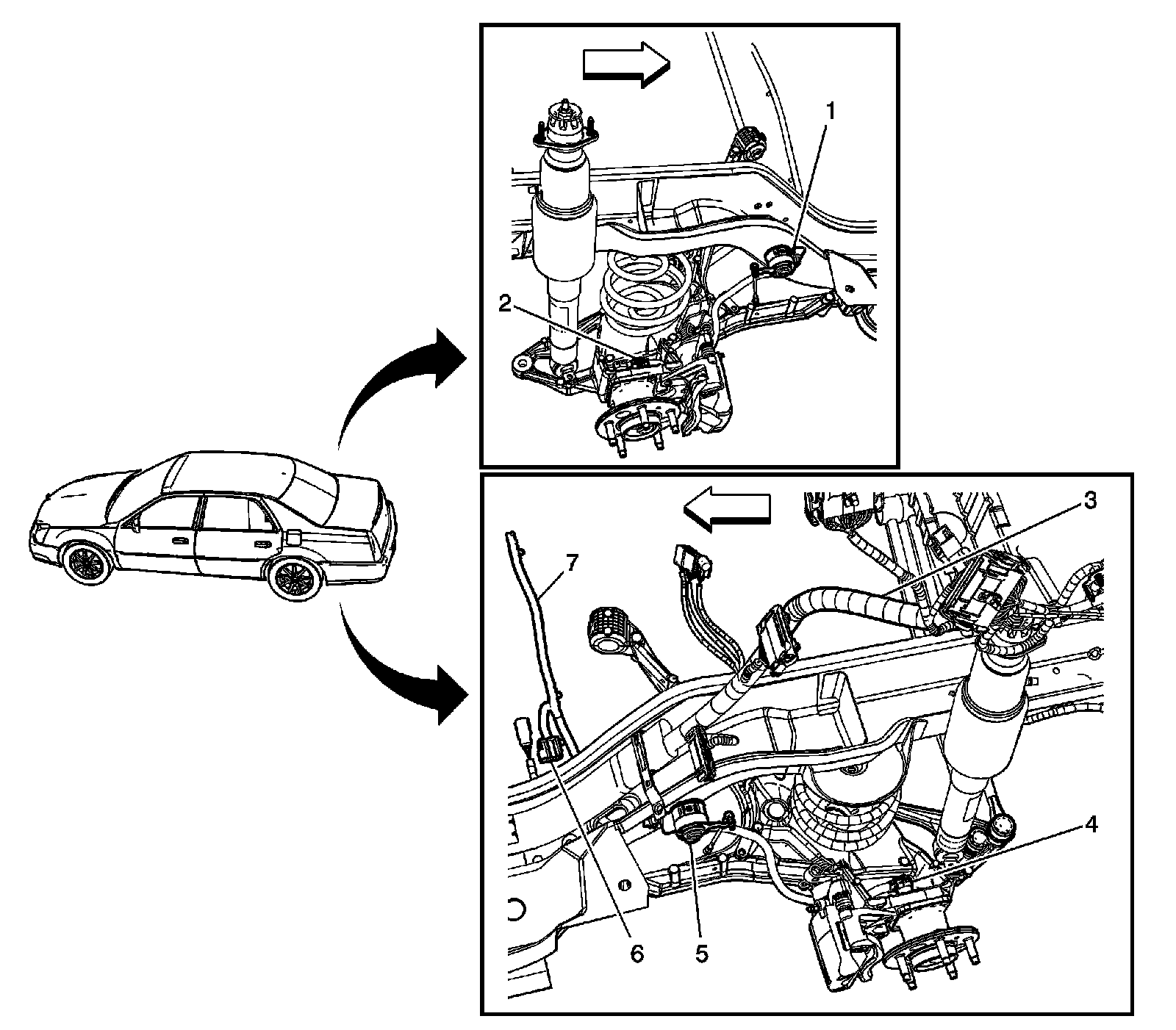

Rear Axle Area:

1 - Suspension Position Sensor-RR
2 - Wheel Speed Sensor-RR
3 - Body Harness
4 - Wheel Speed Sensor-LR
5 - Suspension Position Sensor-LR
6 - C308 Rear Wheel Speed Harness to Chassis Harness
7 - Rear Wheel Speed Harness
