Cruise Control Switch Indicator Inoperative
CRUISE CONTROL SWITCH INDICATOR INOPERATIVEDIAGNOSTIC AIDS -
Repair any brake system related DTCs before performing this diagnostic.
-
If a BCM has been replaced, the brake pedal position (BPP) sensor must be calibrated. Refer to Brake Pedal Position Sensor Calibration.
-
For an intermittent condition, refer to Testing for Intermittent Conditions and Poor Connections.

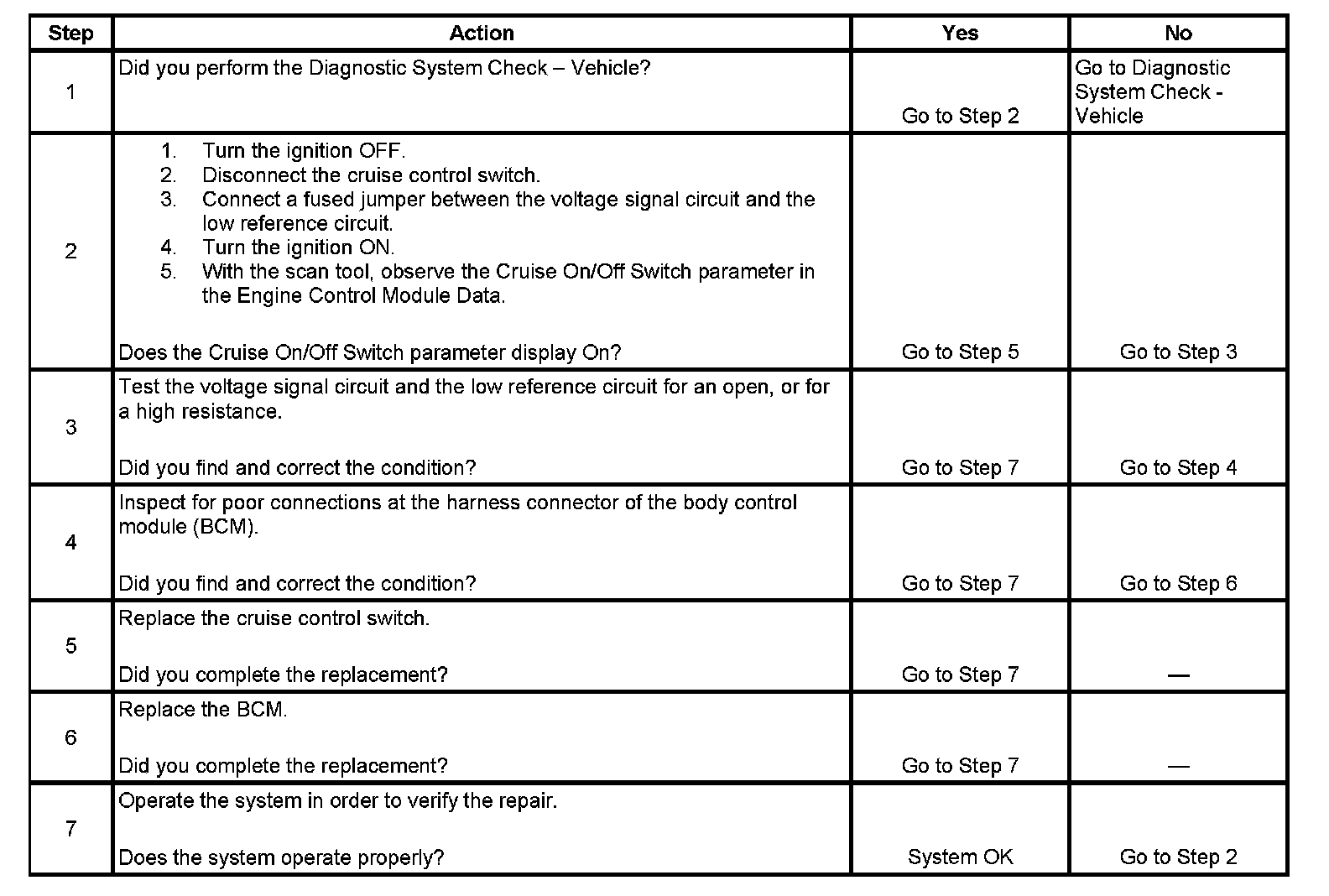

TESTStep 1 - Step 7:
