Fluid Pan, A/T
Bottom Pan to Case Bolt
10-12 Nm (96-108 inch lbs.)
Oil Drain-Bottom Pan to Case Cover Plug
8-14 Nm (72-120 inch lbs.)

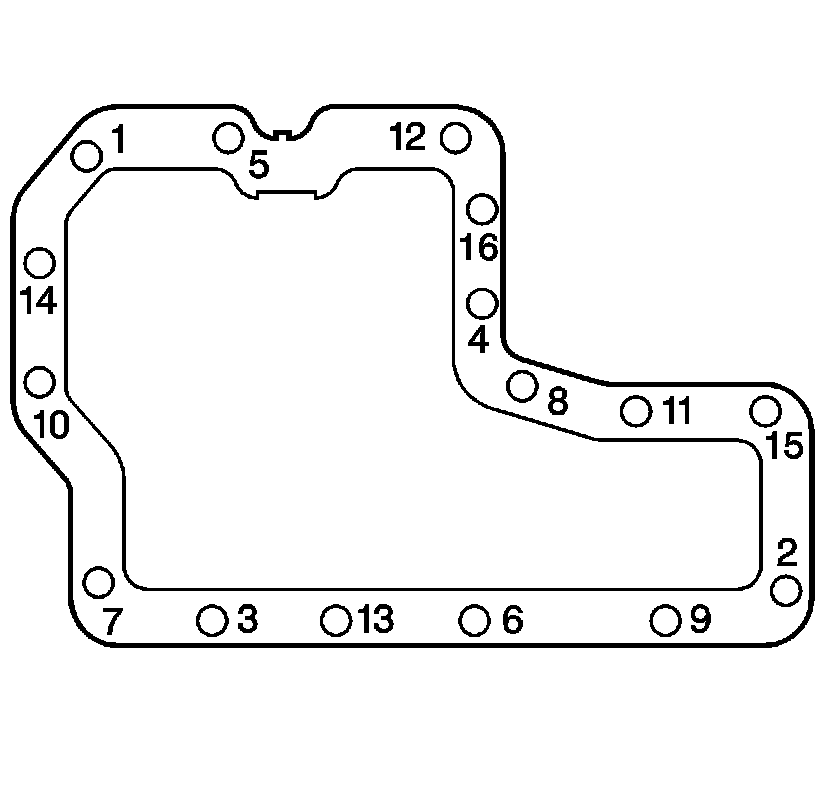

Tighten the pan bolts 3 times to the proper specification, in the sequence shown:
Tighten the pan bolts to
3 Nm (27 inch lbs.).
Tighten the pan bolts to
6 Nm (53 inch lbs.).
Tighten the pan bolts to
12 Nm (106 inch lbs.).
