Shift Interlock: Locations

Automatic Transmission Shift Lock Control Component Views

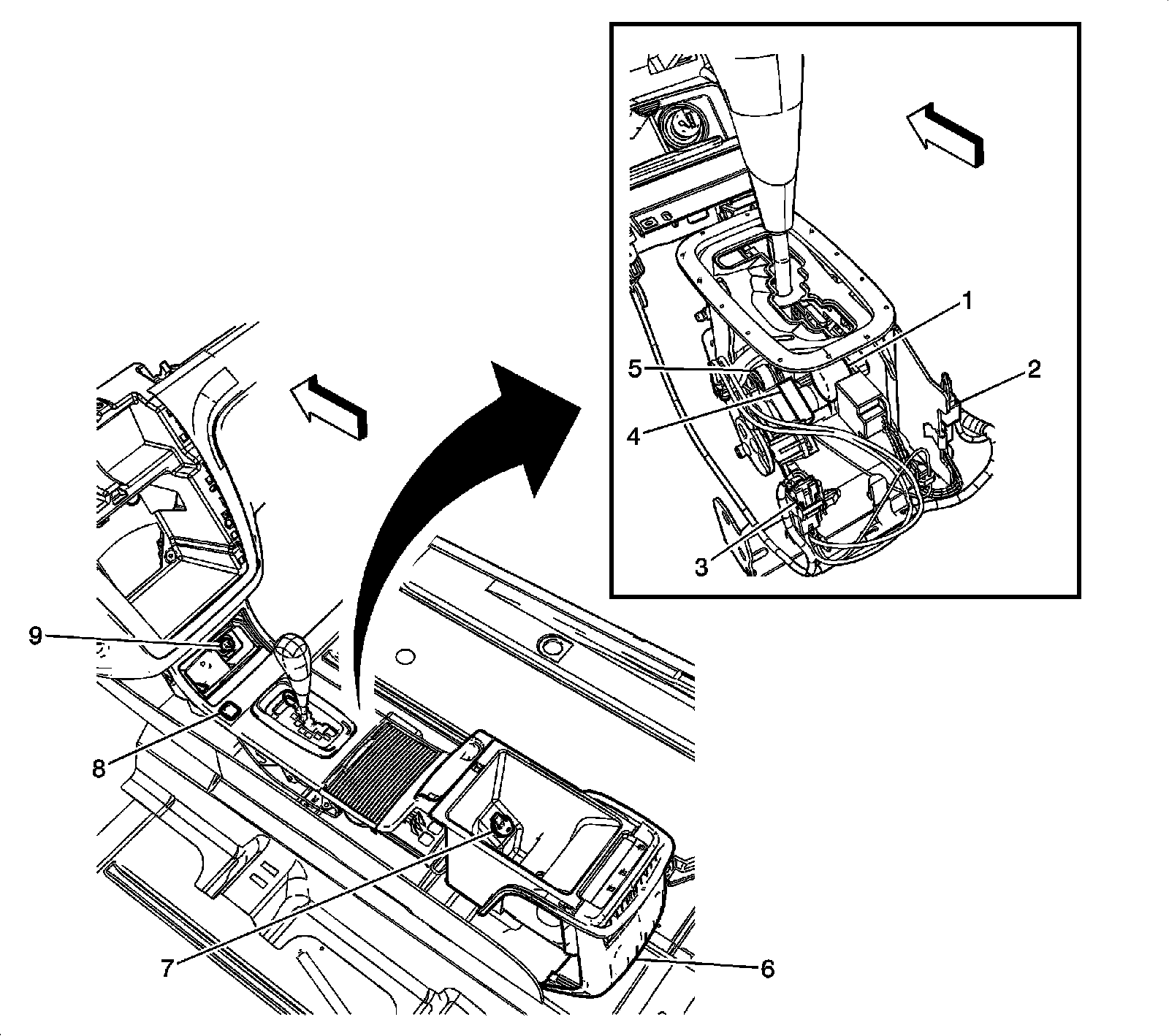

Under Front Floor Console:

1 - Shift Lock Control Solenoid
2 - Reverse Lockout Solenoid C1 (AQ9)
3 - Reverse Lockout Solenoid
4 - Shifter Lamp
5 - HVAC Control Module-Auxiliary (CJ4)
6 - Auxiliary Power Outlet-Console (AQ9)
7 - Traction Control Switch
8 - Cigar Lighter

Steering Column Components:

1 - Turn Signal / Multifunction Switch
2 - Tow / Haul Switch
3 - A/T Shift Lock Control Solenoid
4 - Theft Deterrent Module (TDM)
5 - Ignition Switch
6 - Inflatable Restraint Steering Wheel Module Coil
7 - Steering Angle Sensor (JL4)
8 - Telescoping Actuator
9 - Tilt Actuator
10 - Tilt / Telescope Switch
