52. Camshaft Intermediate Drive Shaft Cleaning and Inspection

Camshaft Intermediate Drive Shaft Cleaning and Inspection

Cleaning Procedure
1. Clean the camshaft intermediate drive shaft in solvent.

Caution: Refer to Safety Glasses Caution in Service Precautions.

2. Dry the camshaft intermediate drive shaft with compressed air.

Inspection Procedure

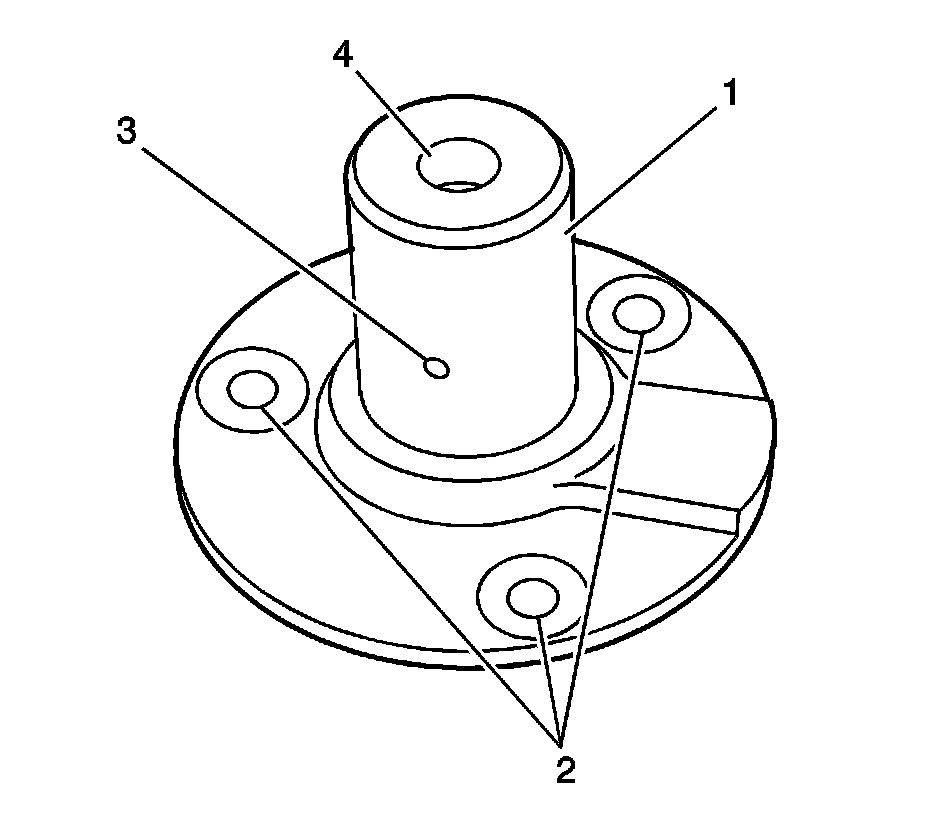

1. Inspect the camshaft intermediate drive shaft for the following:
^ Worn or damaged hub-to-camshaft intermediate drive shaft sprocket bearing surface (1)
^ Cracks or damage to the camshaft intermediate drive shaft fastener holes (2)
^ Restrictions to the oil passage (3)
^ Damaged or stripped thread (4)

2. Repair or replace the camshaft intermediate drive shaft as necessary.
