71. Camshaft Cover Assemble



Camshaft Cover Assemble

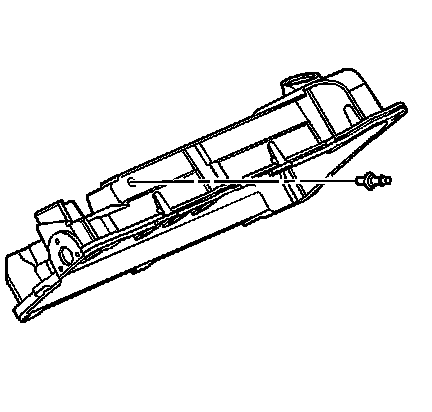

1. Install into the right camshaft cover the fresh air hose fitting.

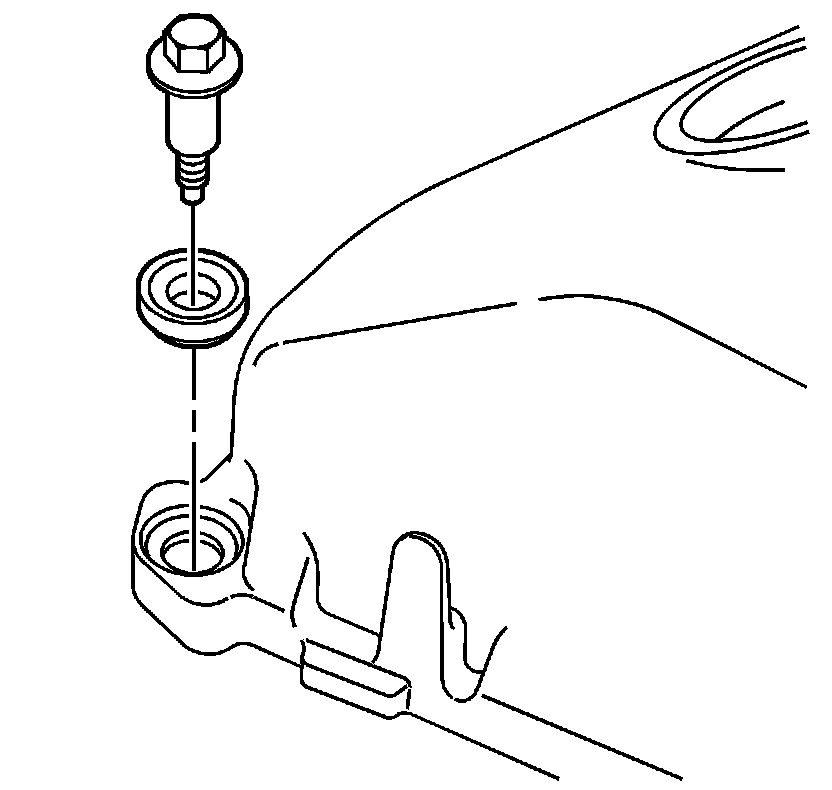

2. Install the camshaft cover bolt grommets.
3. Install the camshaft cover bolts.

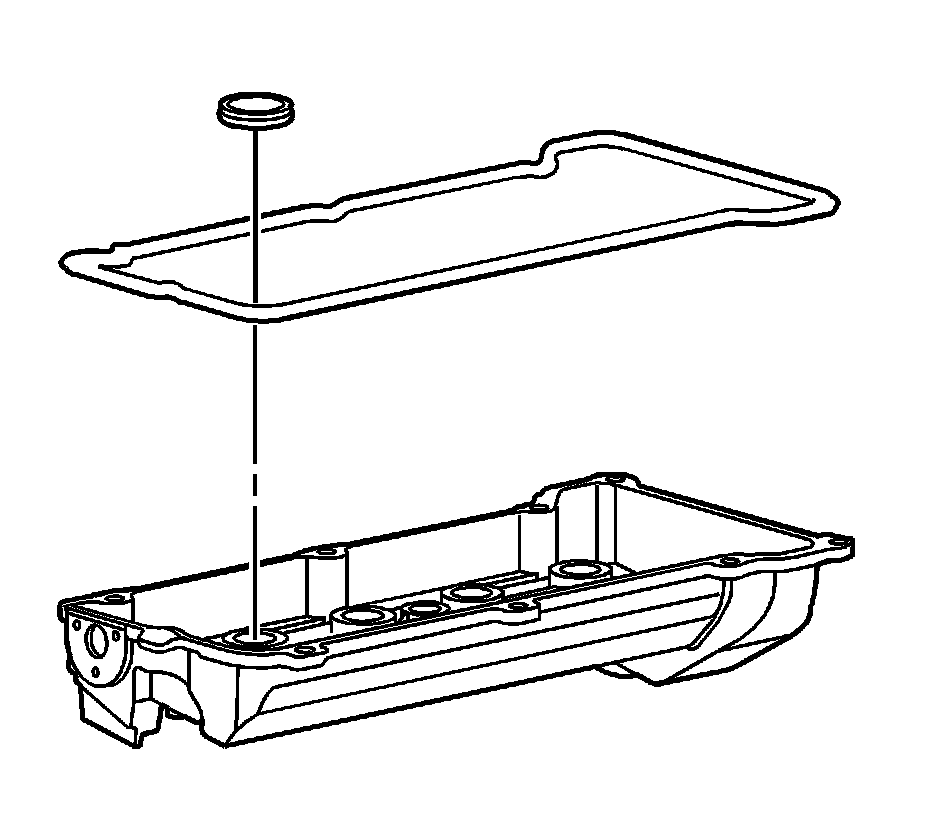

4. Install the NEW left camshaft cover gasket.
5. Install the NEW left spark plug port seals.

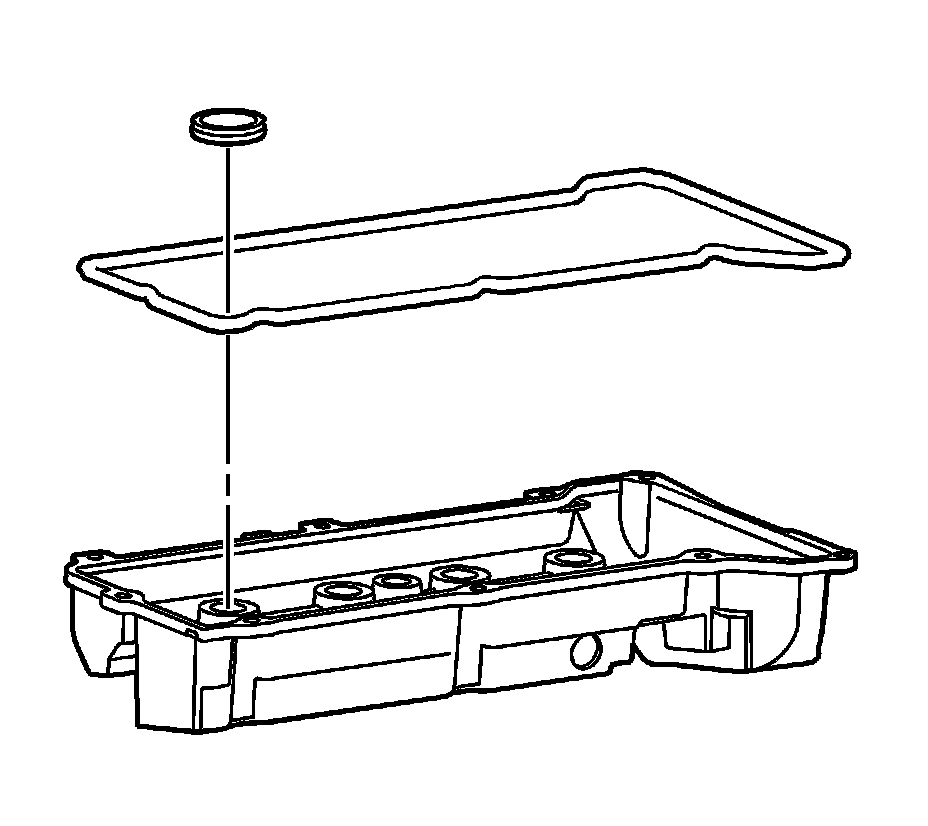

6. Install the NEW right camshaft cover gasket.
7. Install the NEW right spark plug port seals.
