74. Intake Manifold Assemble

Intake Manifold Assemble





Notice: Refer to Fastener Notice in Service Precautions.

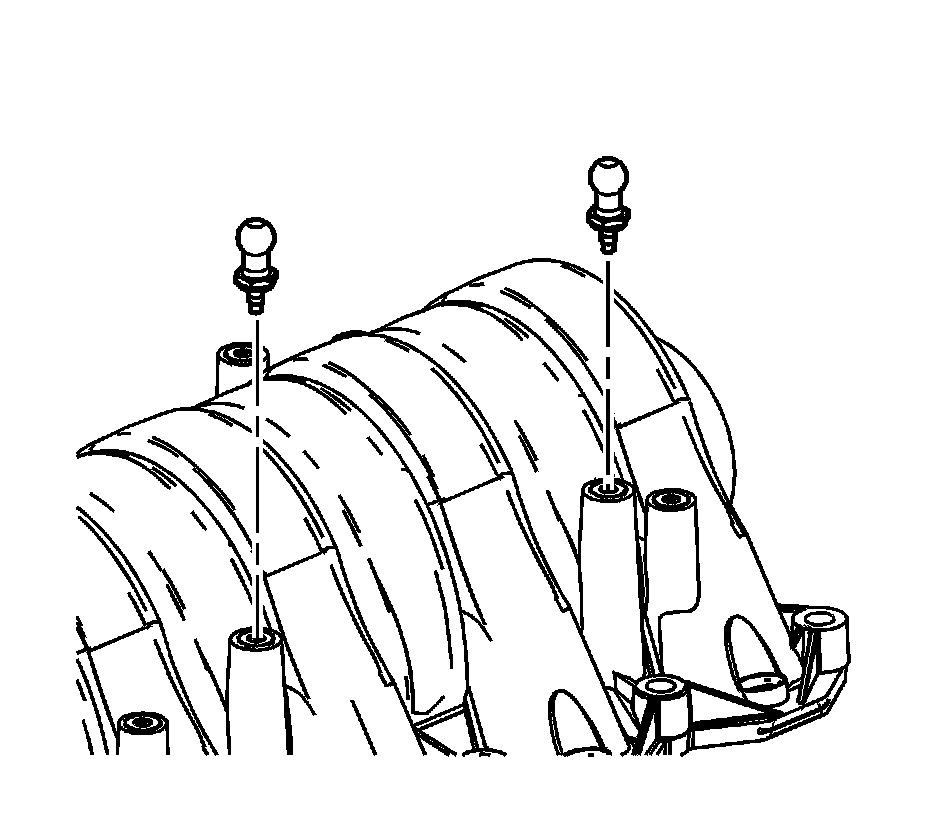

1. Install the intake manifold sight shield ball studs.
Tighten the intake manifold ball studs to 7 Nm (62 inch lbs.).

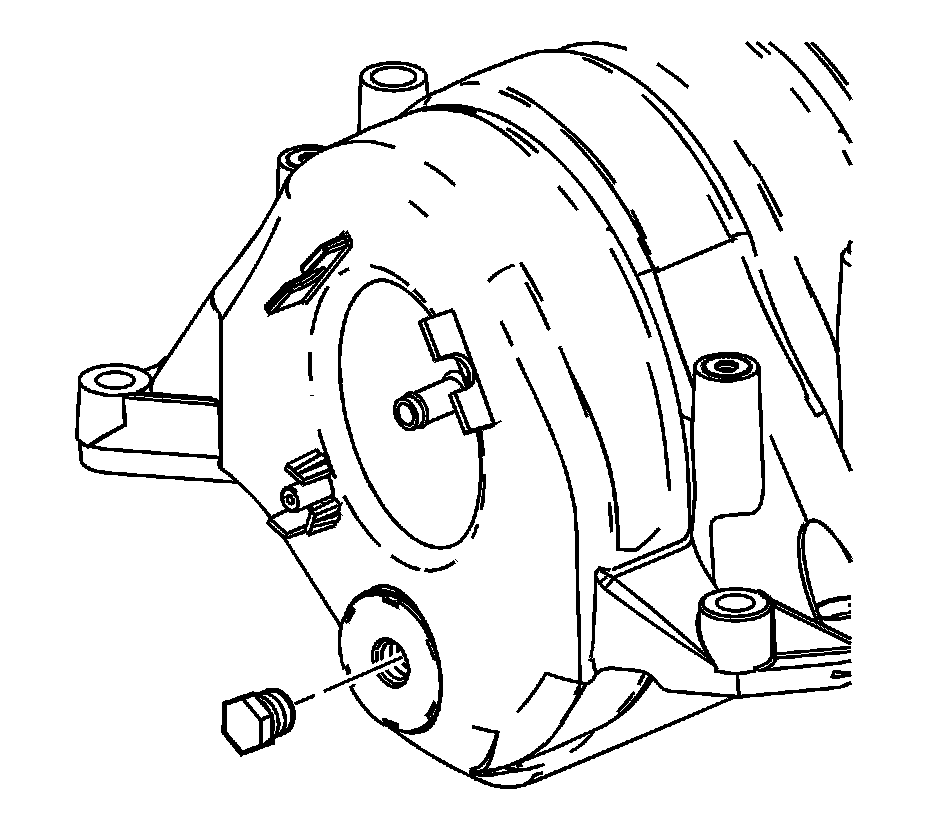

2. Install the intake manifold plug.
Tighten the intake manifold plug to 2 Nm (18 inch lbs.).

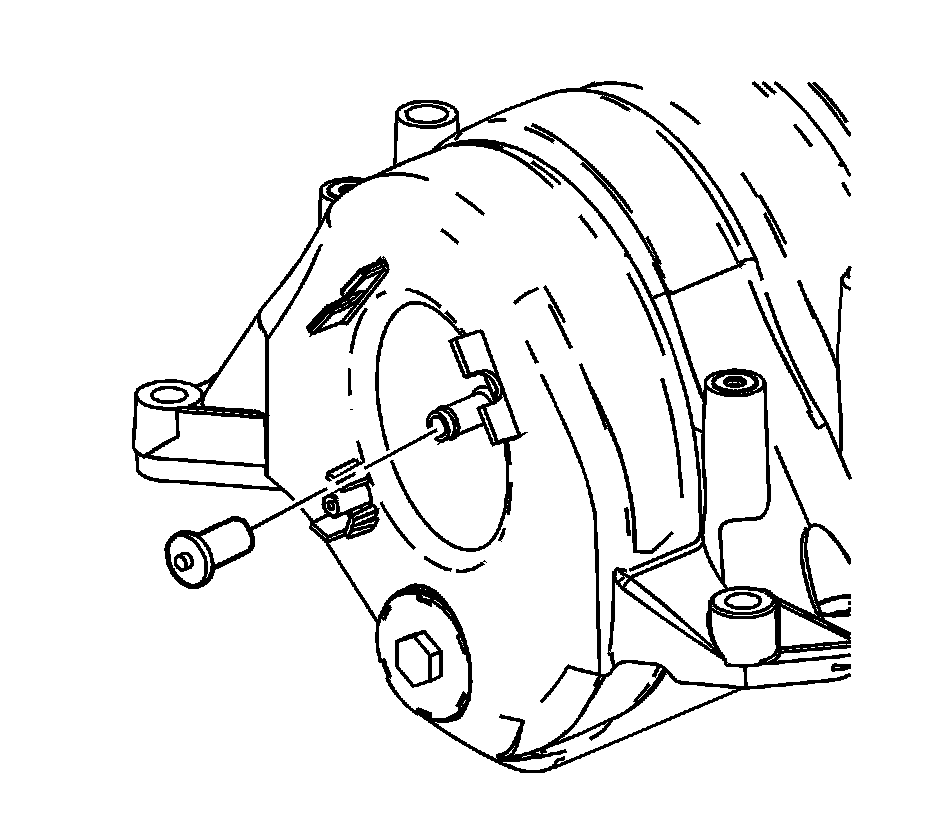

3. Install the vacuum cap.





Important: Do not reuse the intake manifold-to-cylinder head sealing gaskets.

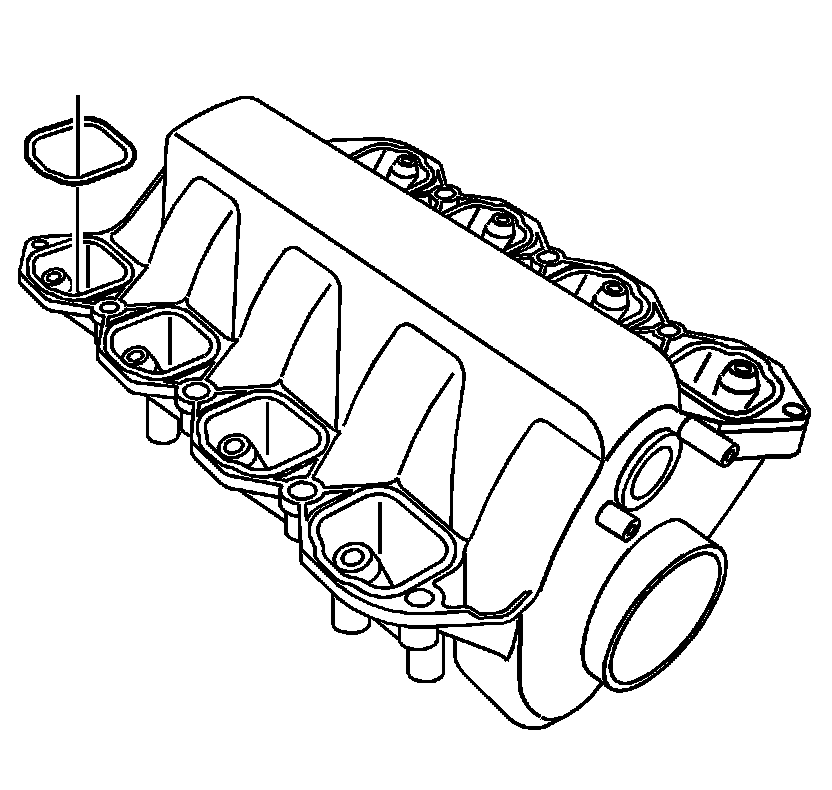

4. Install NEW intake manifold-to-cylinder head gaskets.
