Engine Control Module (ECM) C2

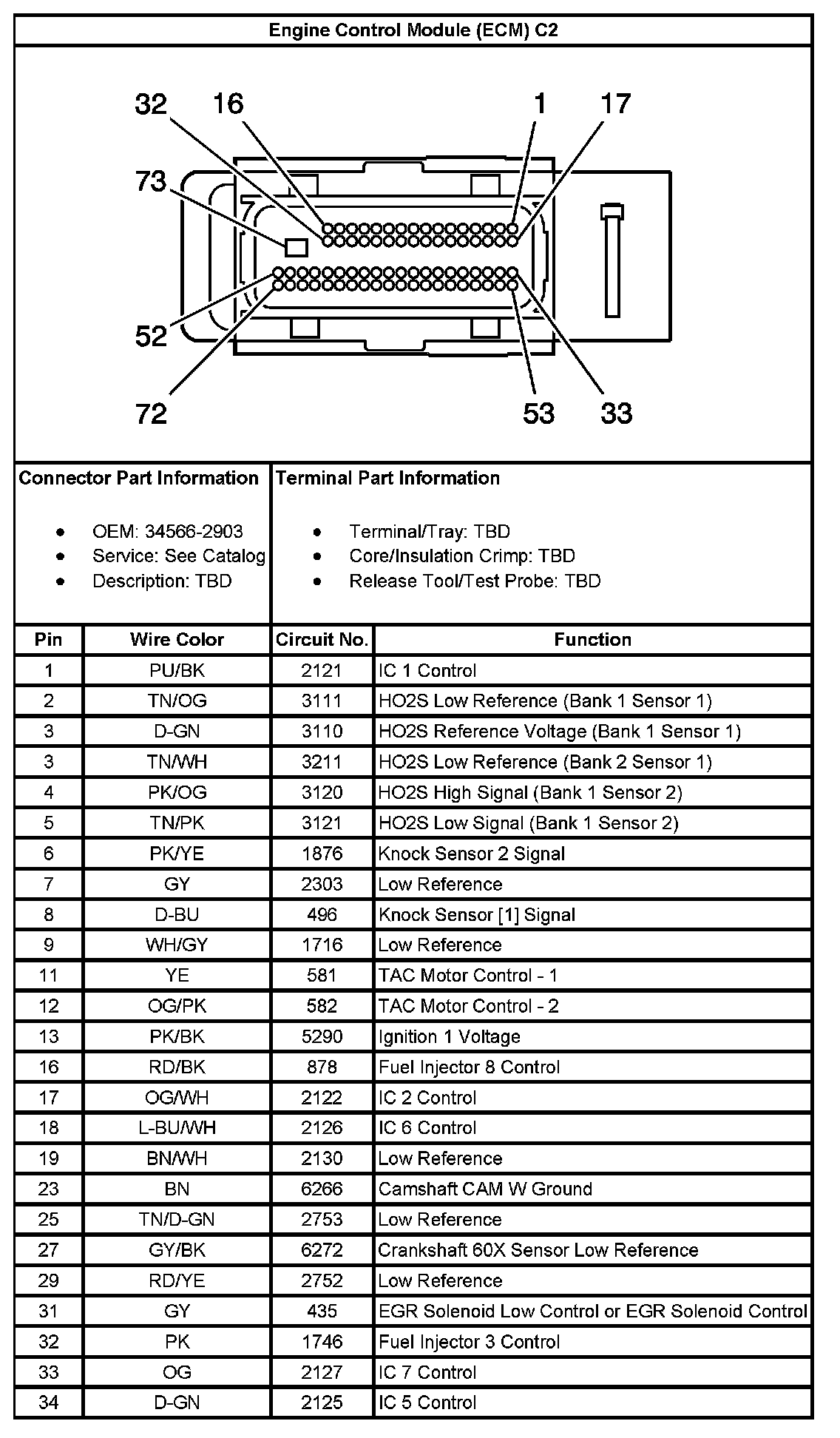

Engine Control Module (ECM) C2 (Part 1):



Engine Control Module (ECM) C2 (Part 2):
