Intake Manifold

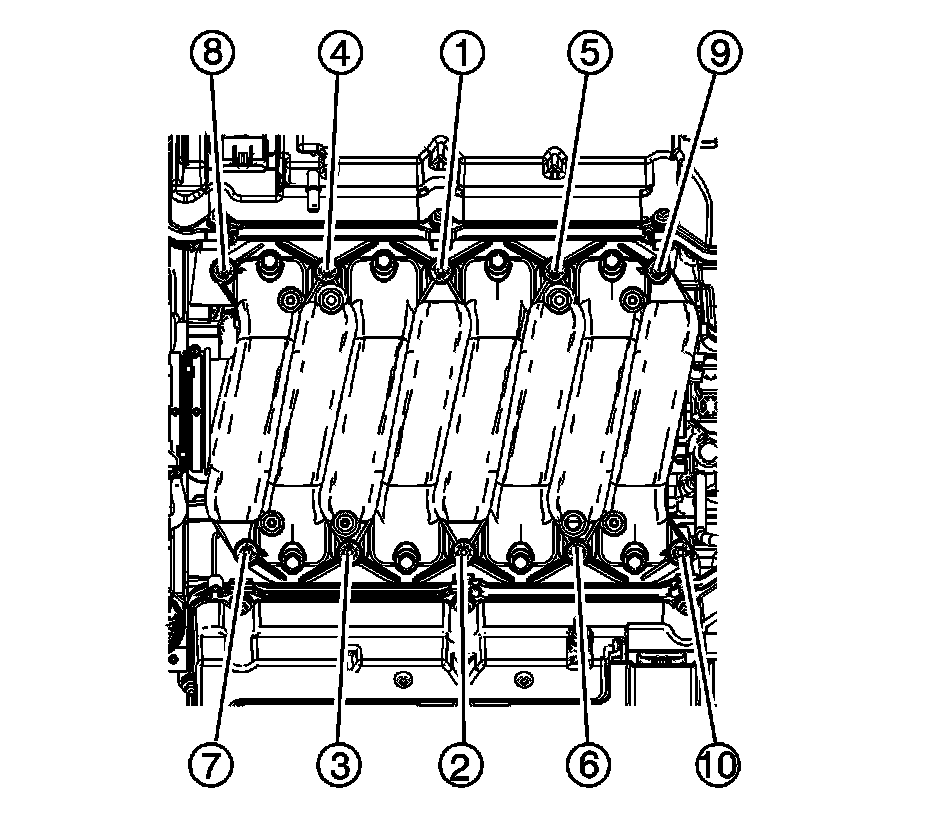

Tighten the intake manifold bolts in sequence (1-10).
Intake Manifold Bolt 10 Nm (89 inch lbs.)
Intake Manifold
^ Surface Flatness 0.500 mm (0.0200 inch)
Throttle Body Bolt 10 Nm (89 inch lbs.)
Tighten the intake manifold bolts in sequence (1-10).
Intake Manifold Bolt 10 Nm (89 inch lbs.)
Intake Manifold
^ Surface Flatness 0.500 mm (0.0200 inch)
Throttle Body Bolt 10 Nm (89 inch lbs.)
