Torque Converter Cover: Service and Repair

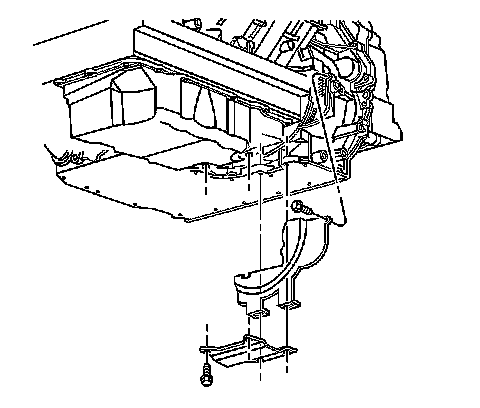

Torque Converter Cover Replacement

Removal Procedure
1. Raise the vehicle. Refer to Vehicle Lifting.





2. Remove the attaching bolts and the engine-to-transmission brace.
3. Remove the torque converter cover.

Installation Procedure





1. Notice: Refer to Fastener Notice in Service Precautions.

Install the torque converter cover.
Tighten the cover bolt to 12 Nm (106 inch lbs.).
2. Install the engine-to-transmission brace and attaching bolts.
Tighten the bolts to 47 Nm (35 ft. lbs.).
3. Lower the vehicle.
