TV Antenna Module Replacement

TV ANTENNA MODULE REPLACEMENT

REMOVAL PROCEDURE
1. Remove the right rear body side trim panel.

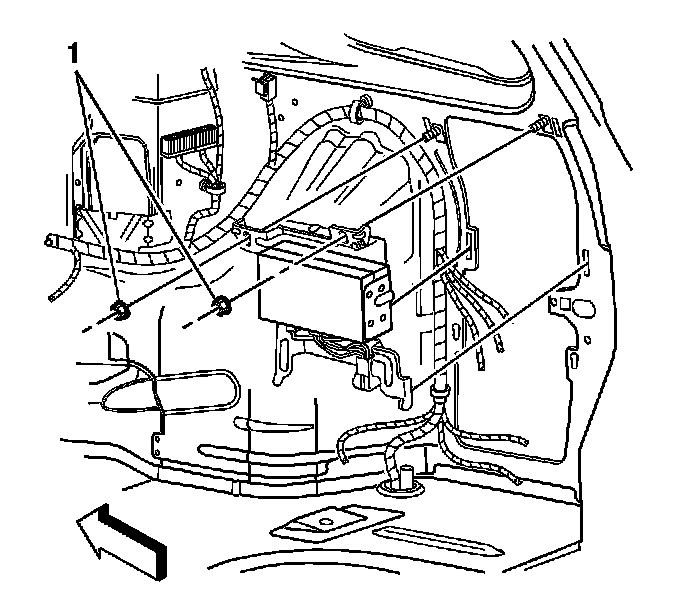

2. Remove the nuts (1) securing the module to the vehicle.
3. Disconnect the electrical connectors.
4. Remove the module.

INSTALLATION PROCEDURE




1. Connect the electrical connectors.
2. Locate the module the vehicle.
3. Install the nuts (1) securing the processor to the vehicle.

Tighten the nuts to 9 N.m (80 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

4. Install the right rear body side trim panel.
