Memory Positioning Module: Diagrams

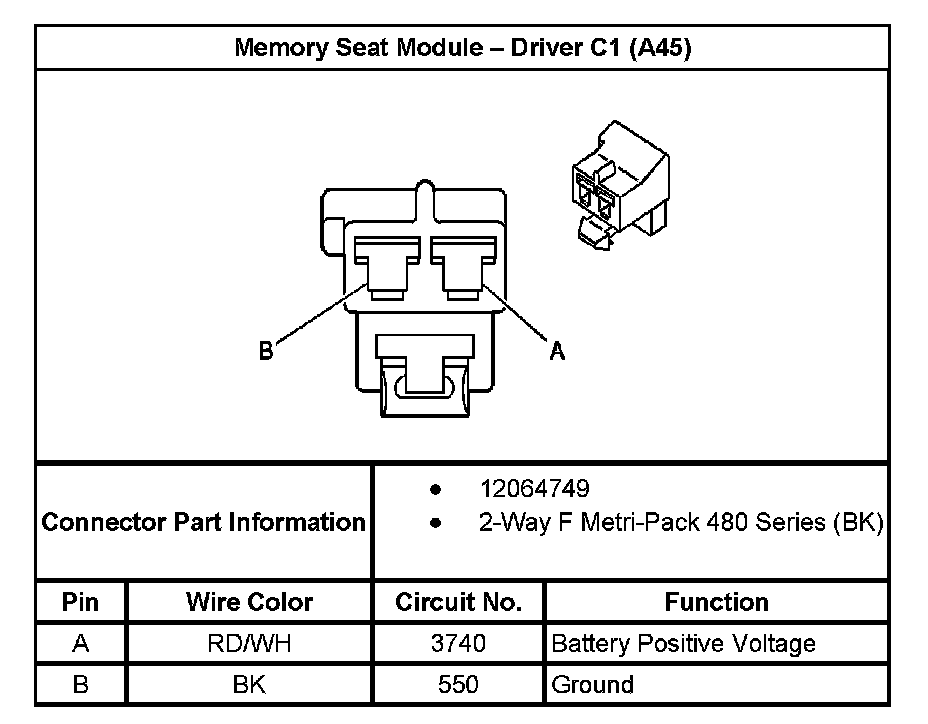

Memory Seat Module - Driver C1 (With RPO Code A45):

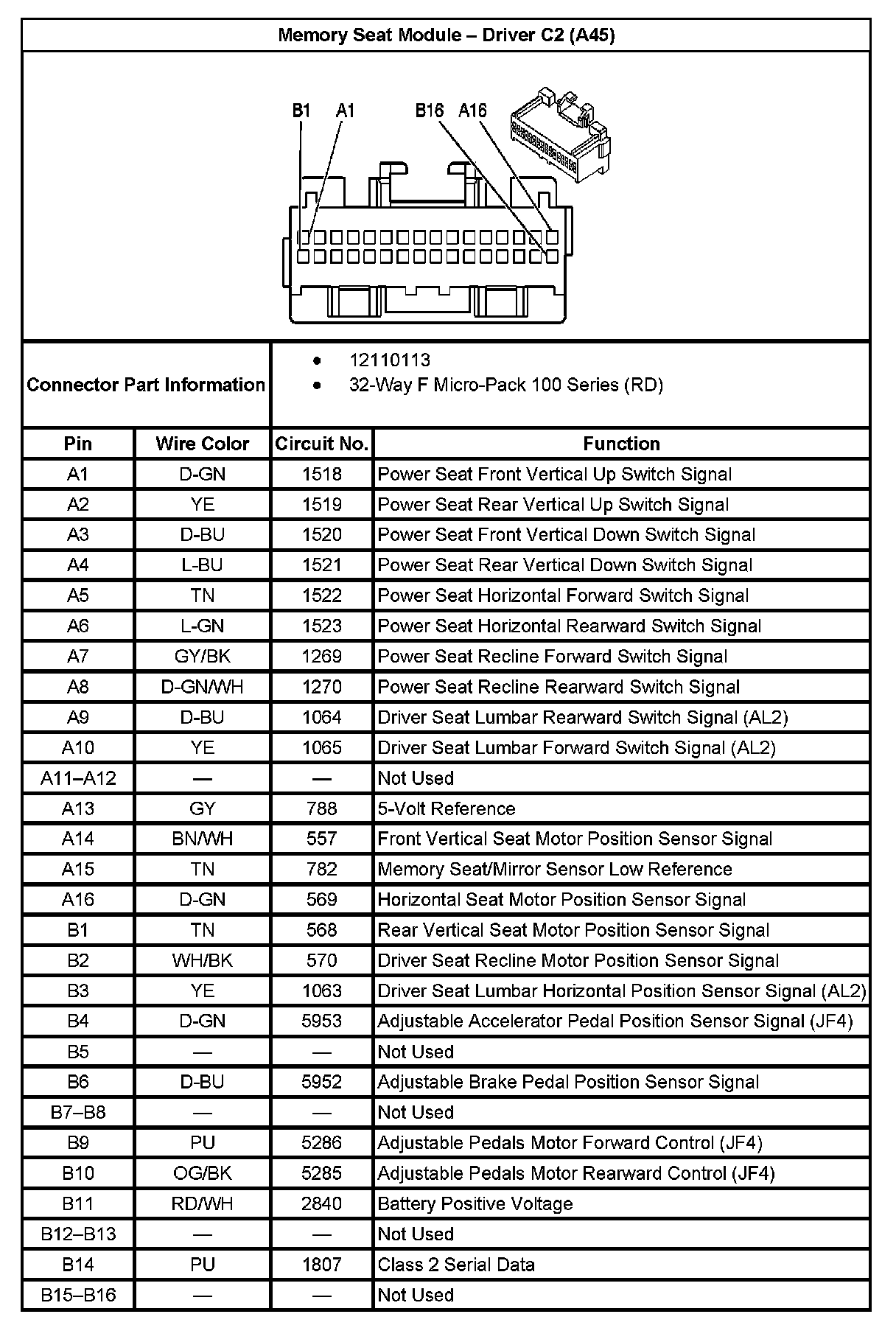

Memory Seat Module - Driver C2 (With RPO Code A45):

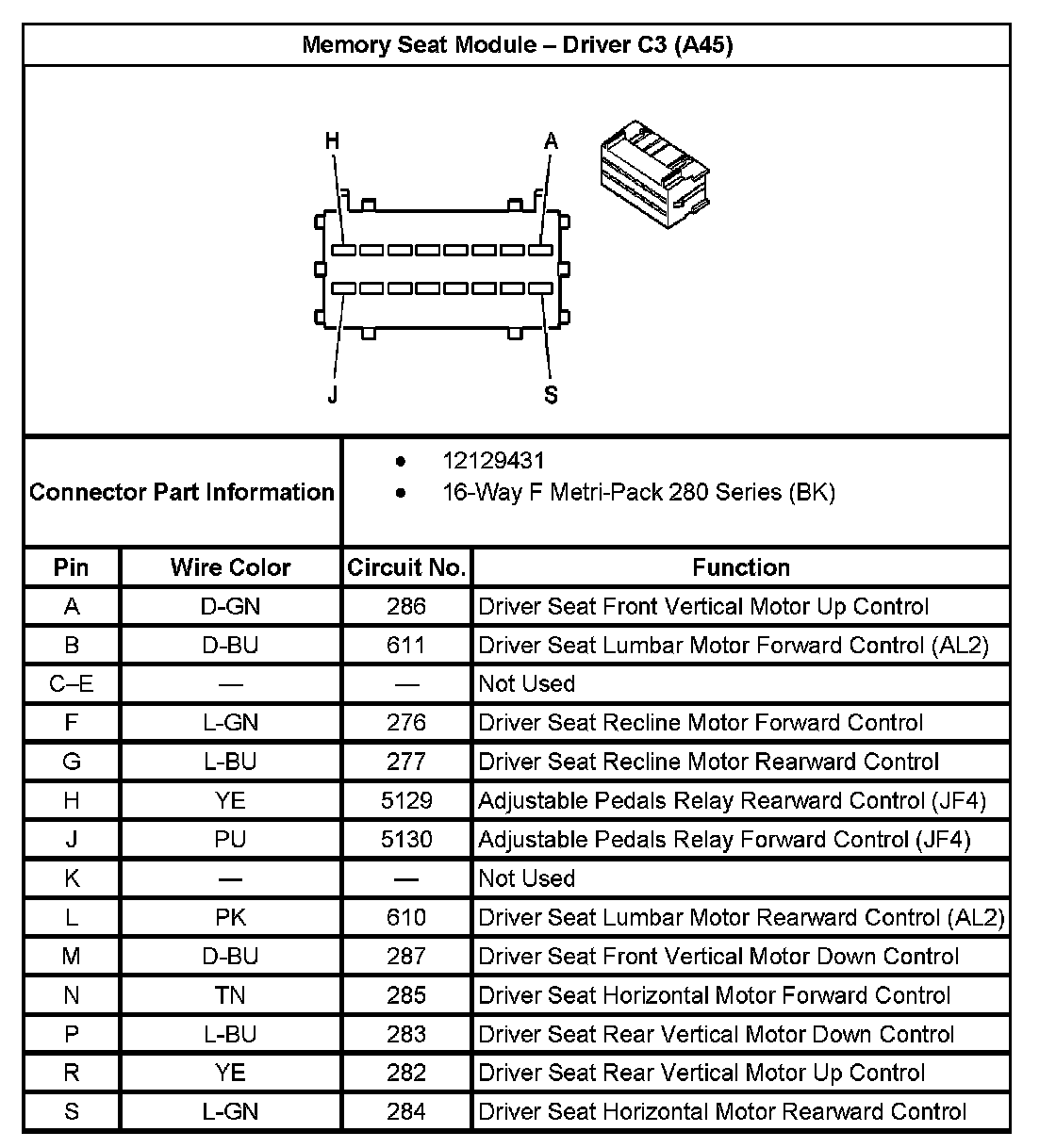

Memory Seat Module - Driver C3 (With RPO Code A45):
