Inflatable Restraint Side Impact Sensing Module (SISM)

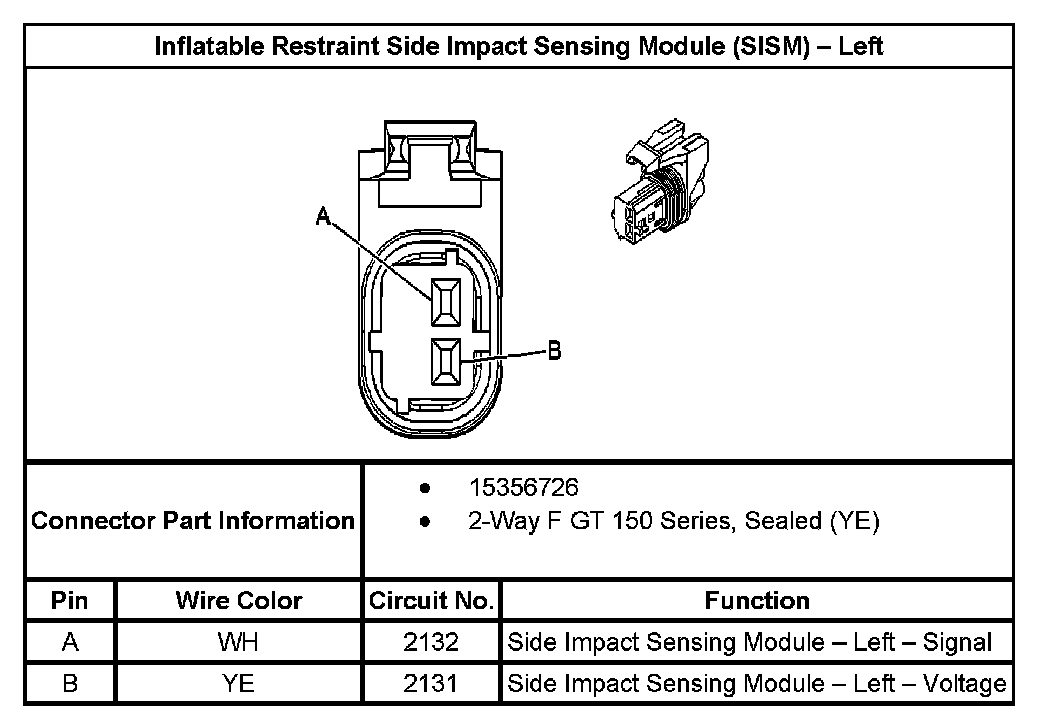

Inflatable Restraint Side Impact Sensing Module (SISM) - Left:

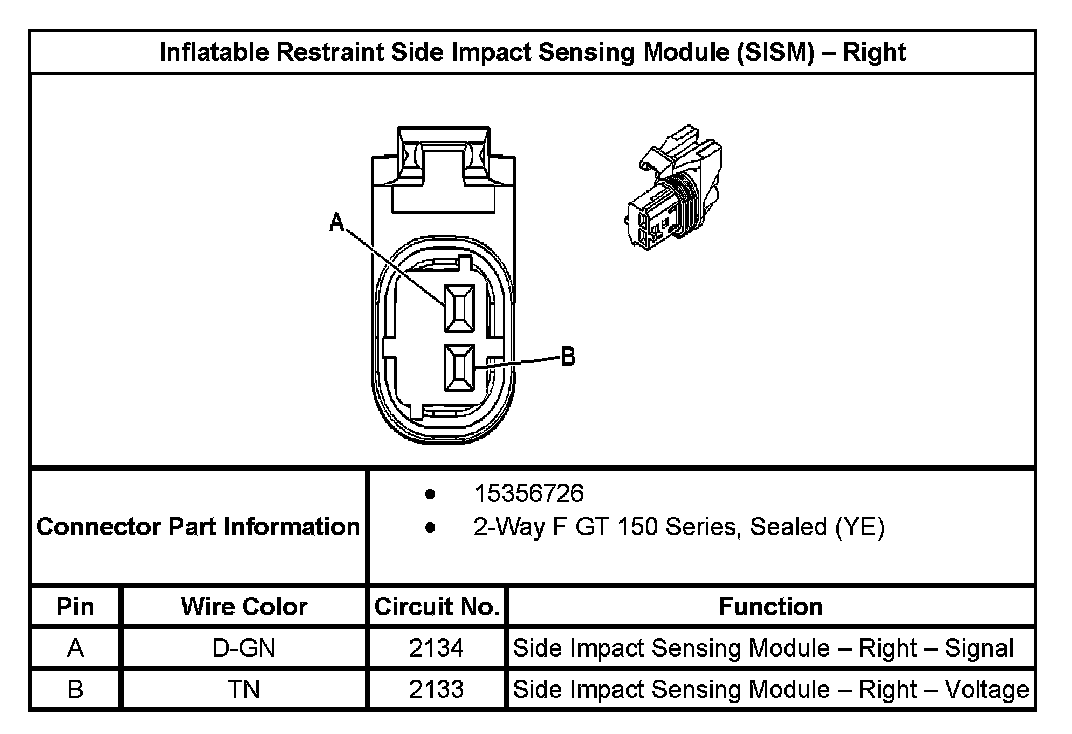

Inflatable Restraint Side Impact Sensing Module (SISM) - Right:
