Amplifier, Sound System
>>
Audio Amplifier
Audio Amplifier

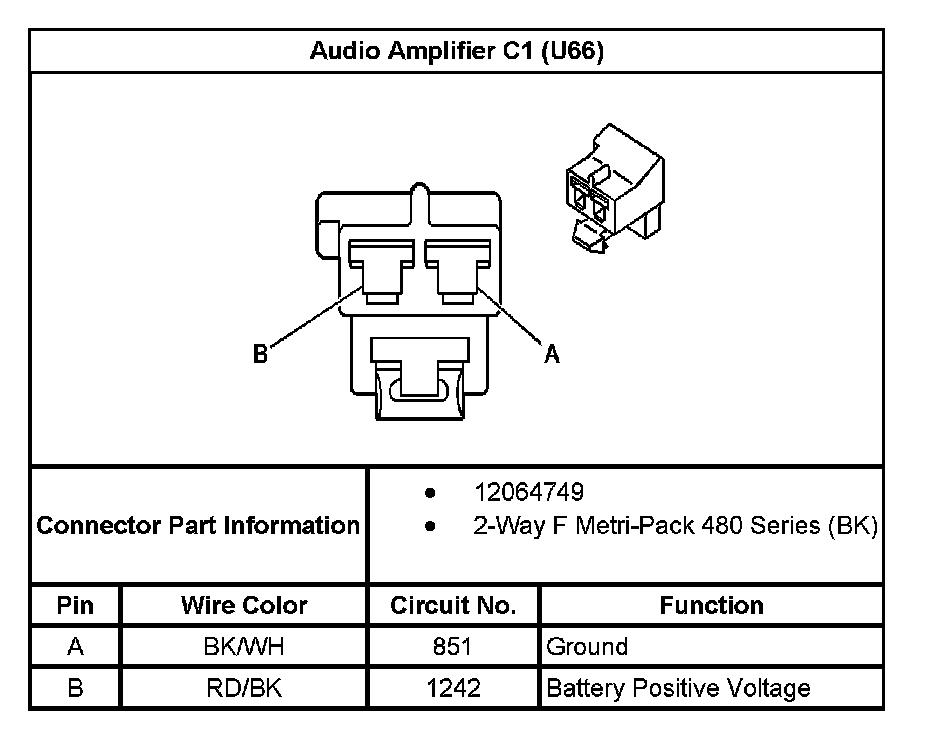

Audio Amplifier C1 (With RPO Code U66):

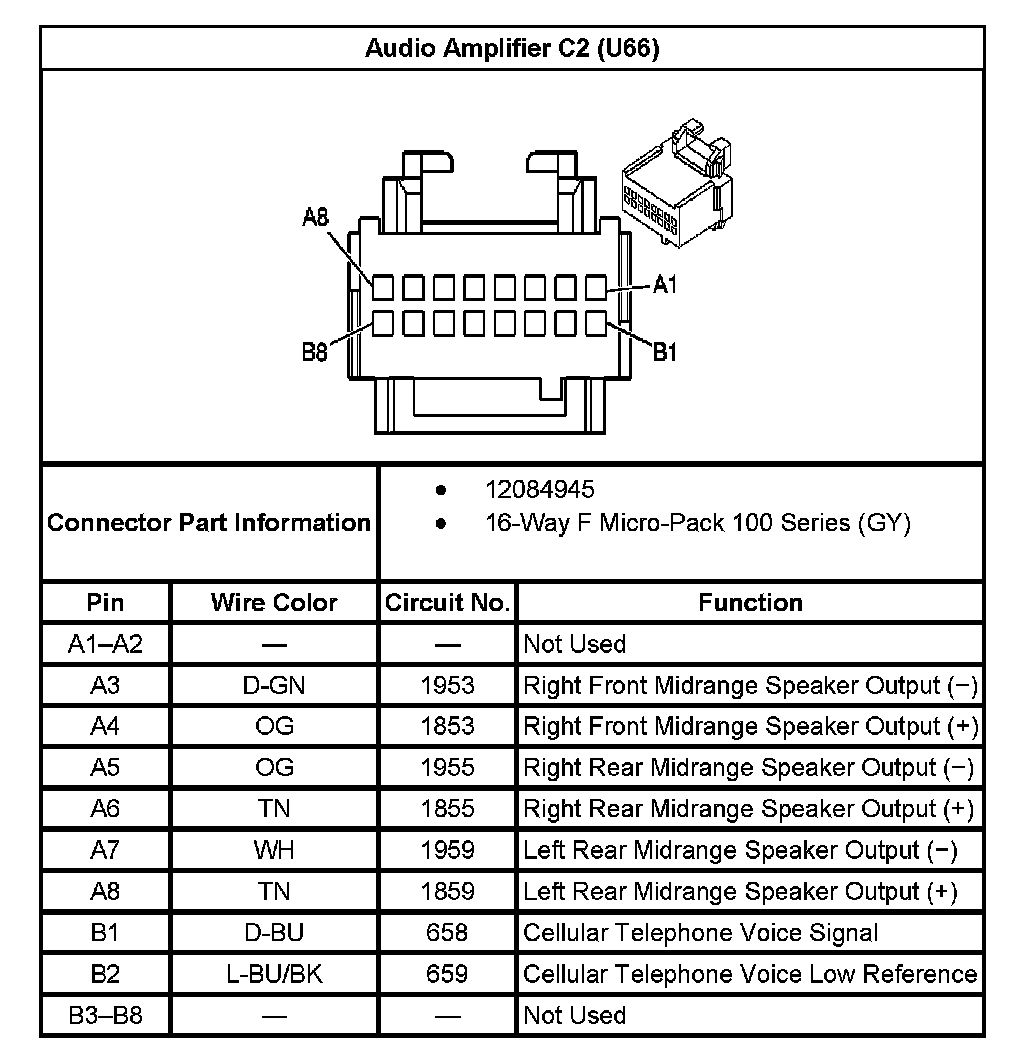

Audio Amplifier C2 (With RPO Code U66):

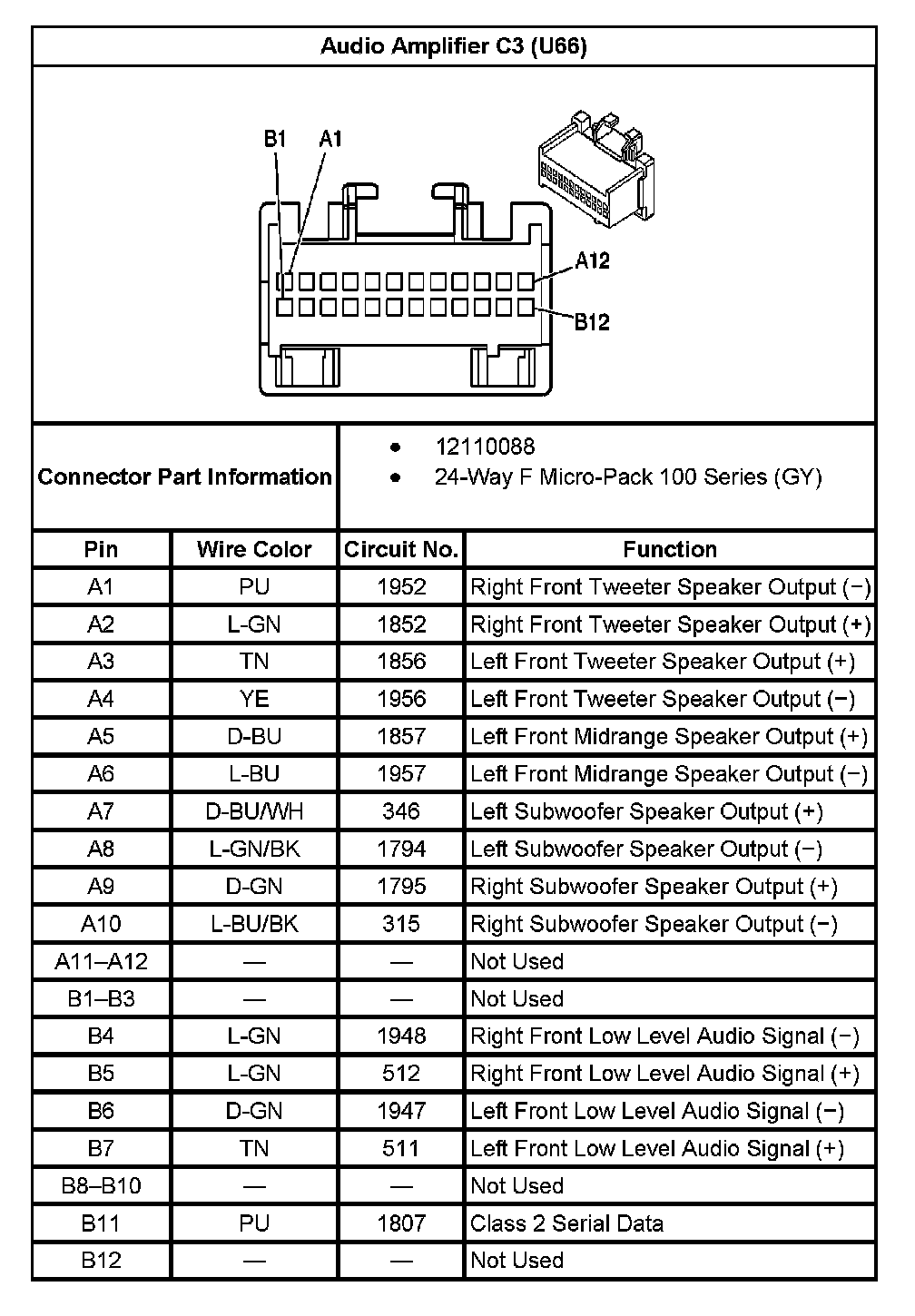

Audio Amplifier C3 (With RPO Code U66):
