Antenna Control Module
Antenna Control Module

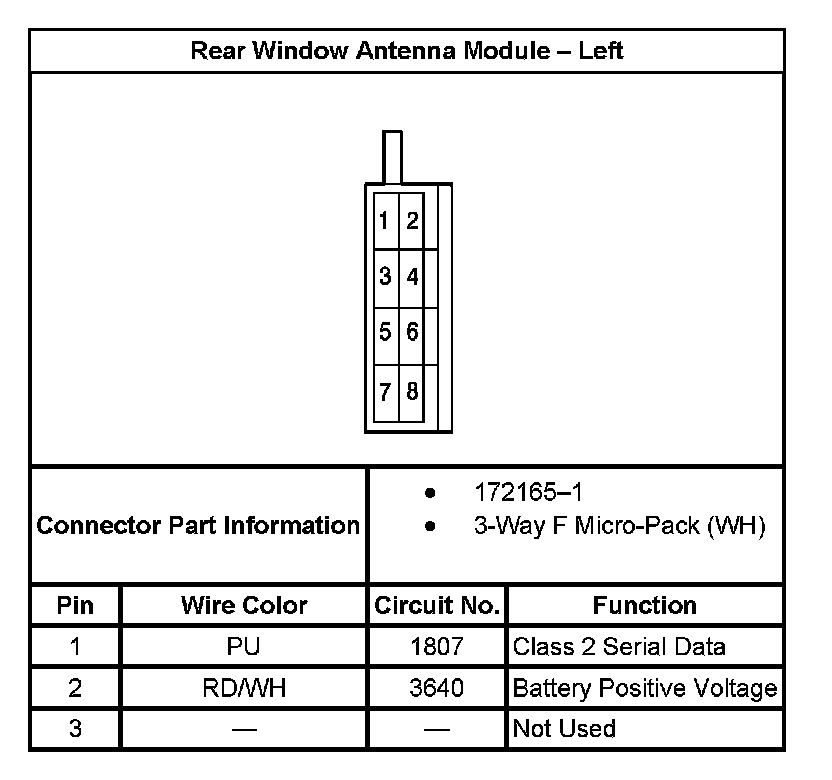

Rear Window Antenna Module - Left:

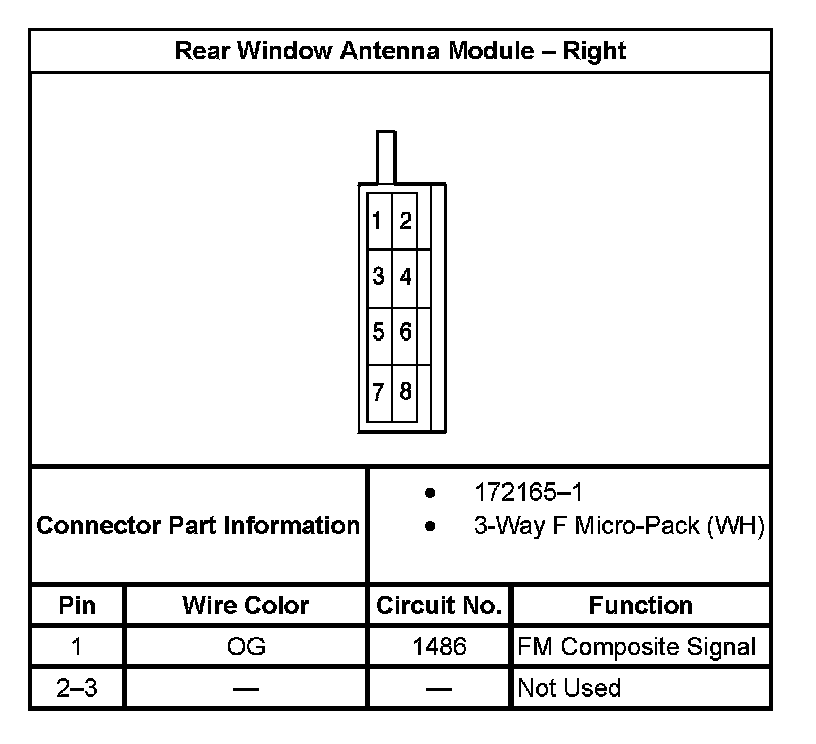

Rear Window Antenna Module - Right:
