Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
CD Changer
CD Changer
CD Changer C1 (With RPO Code U2V/U2X/U2Y):

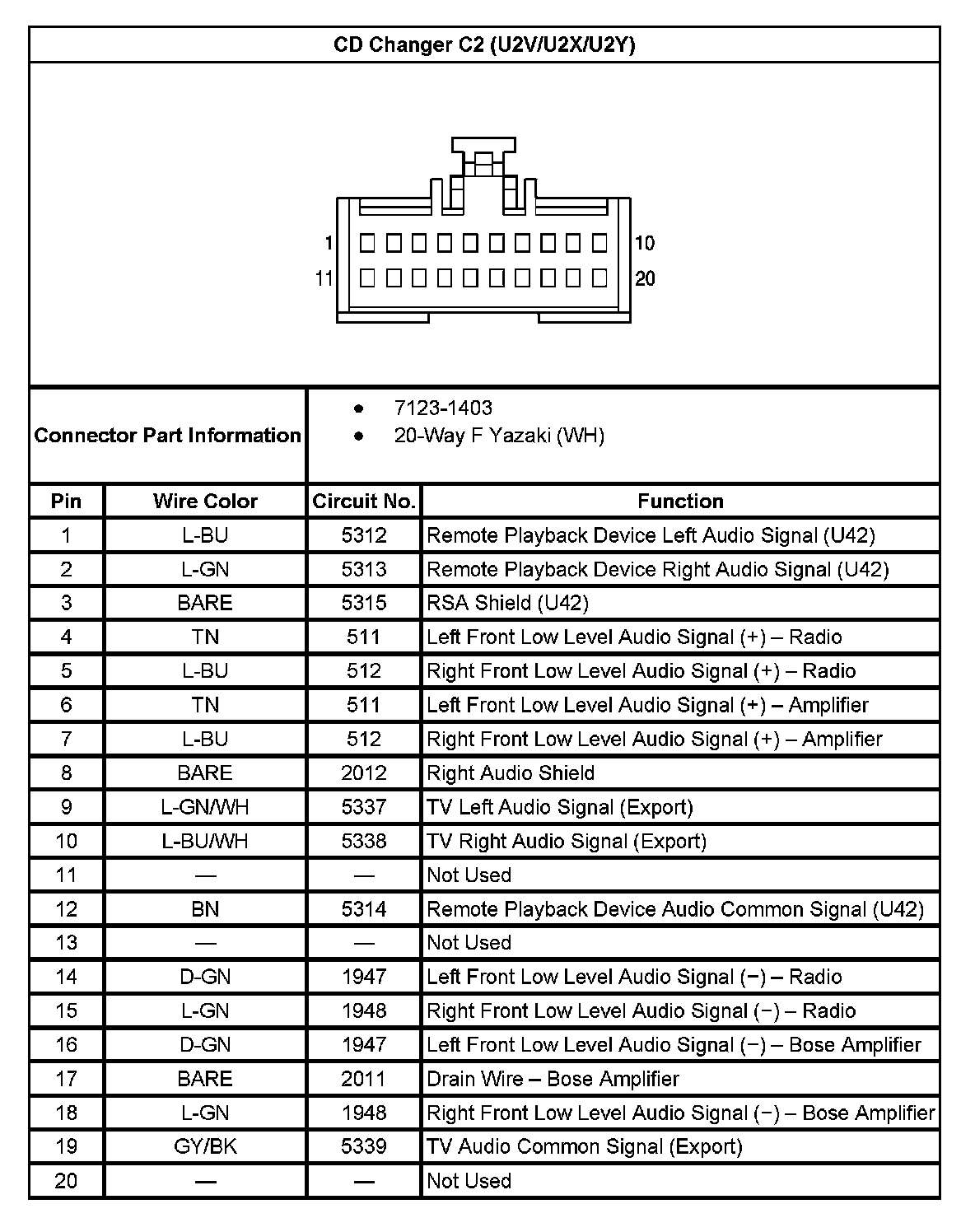

CD Changer C2 (With RPO Code U2V/U2X/U2Y):
