Map Light
Map Light

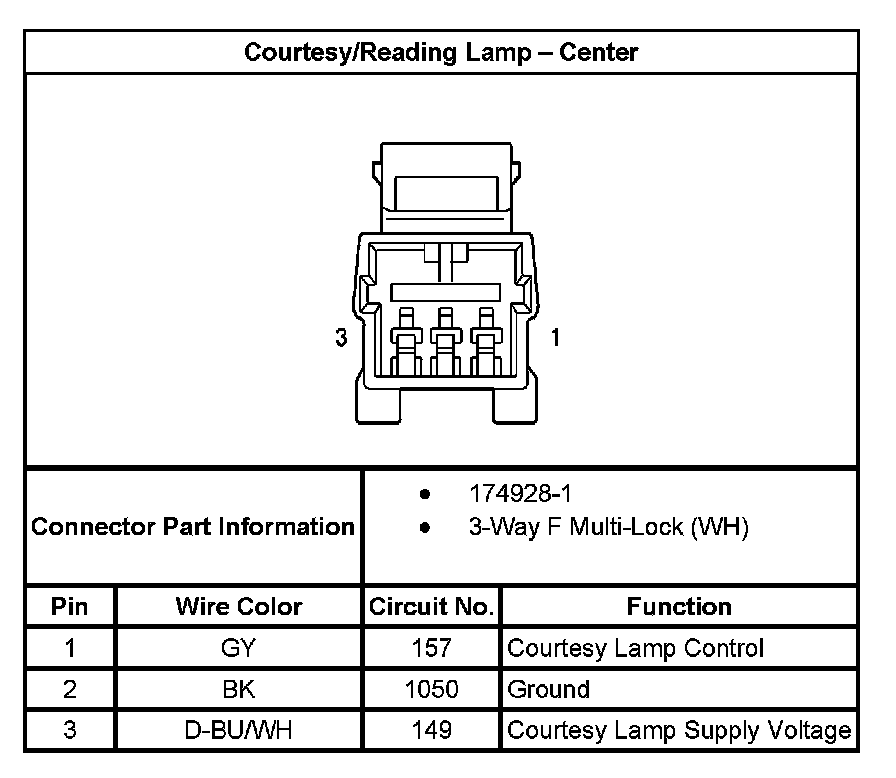

Courtesy/Reading Lamp - Center:

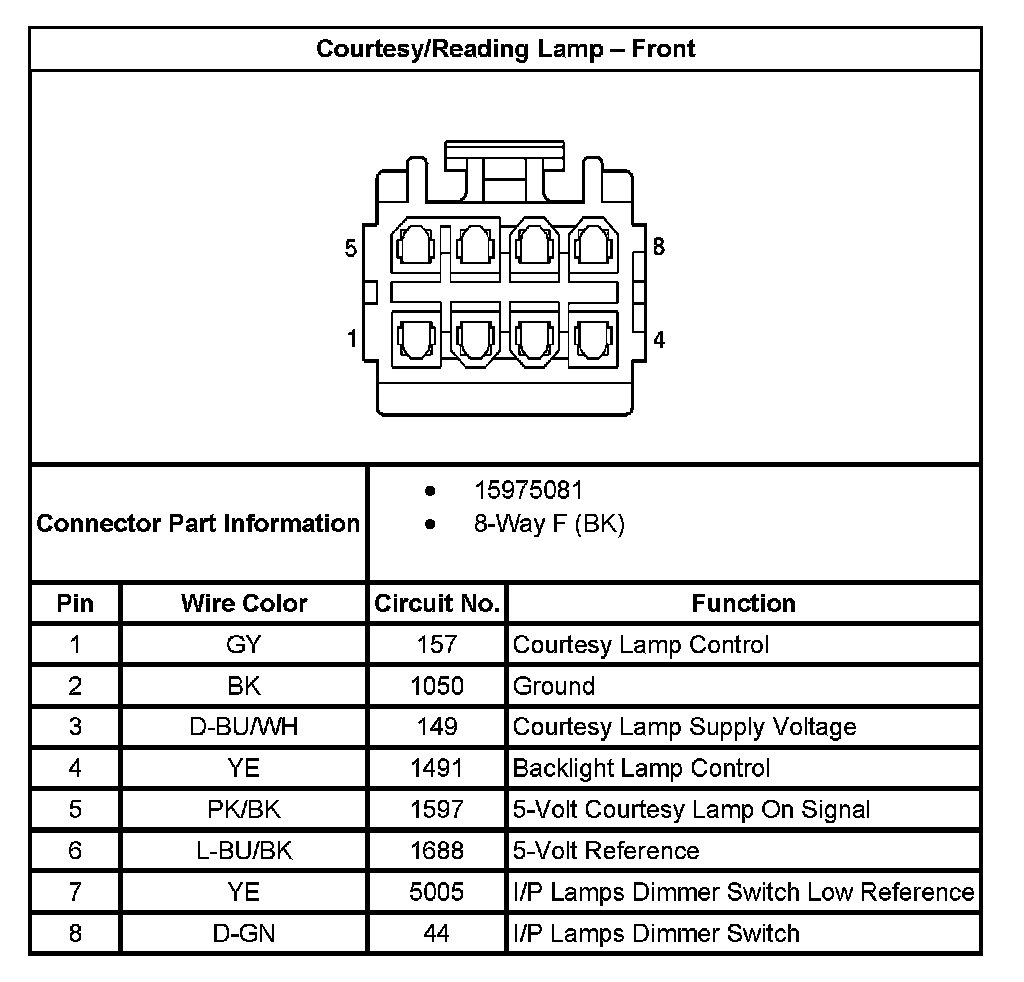

Courtesy/Reading Lamp - Front:

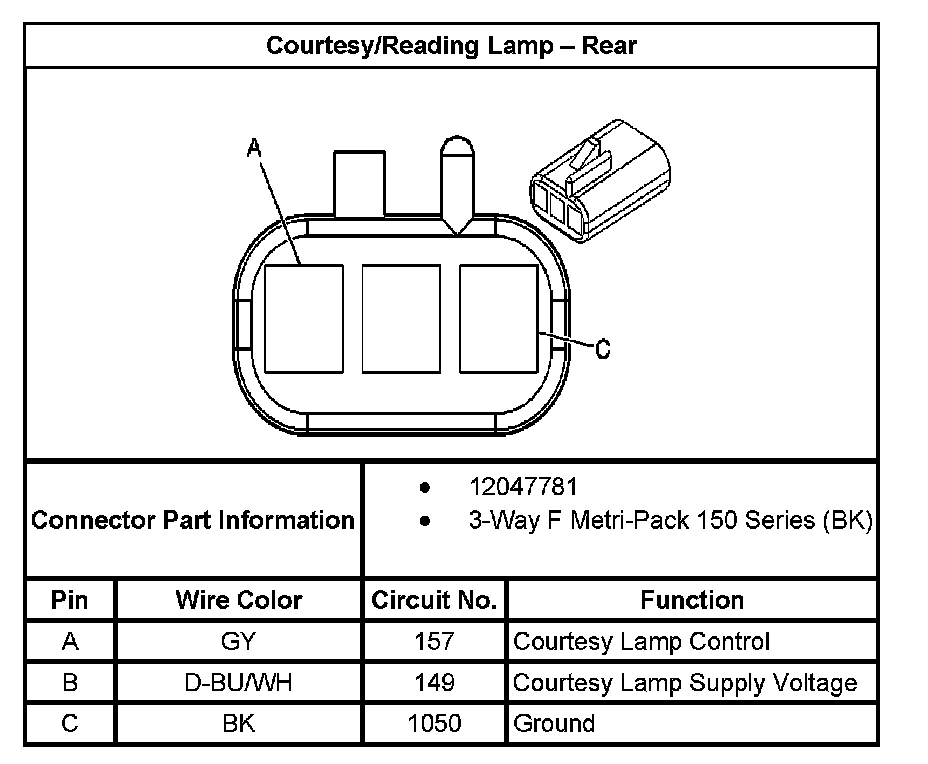

Courtesy/Reading Lamp - Rear:
