Power Seat Control Module
Power Seat Control Module

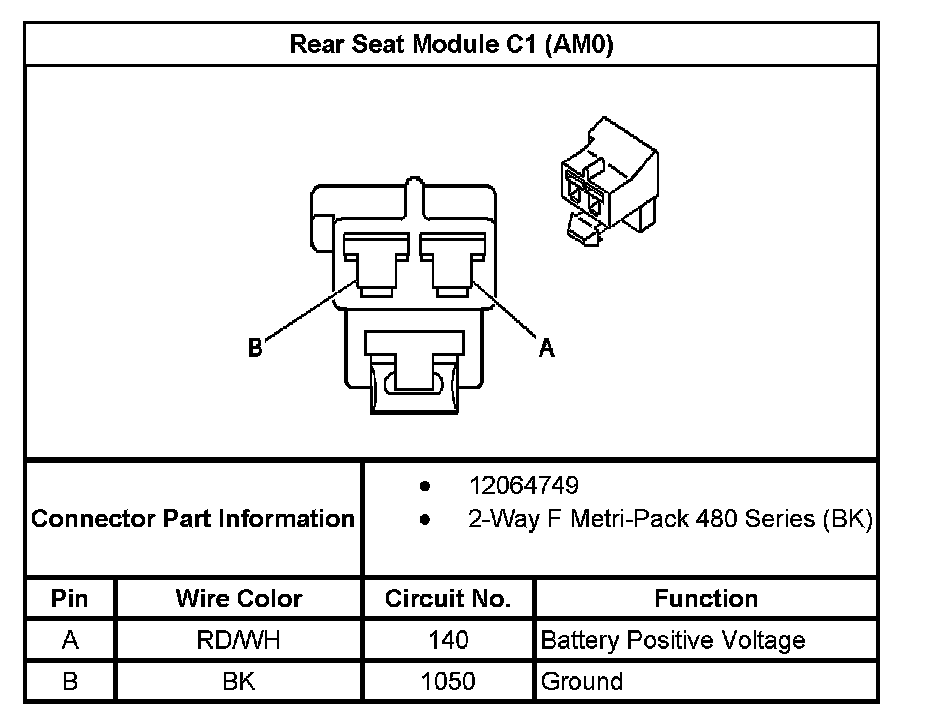

Rear Seat Module C1 (With RPO Code AM0):

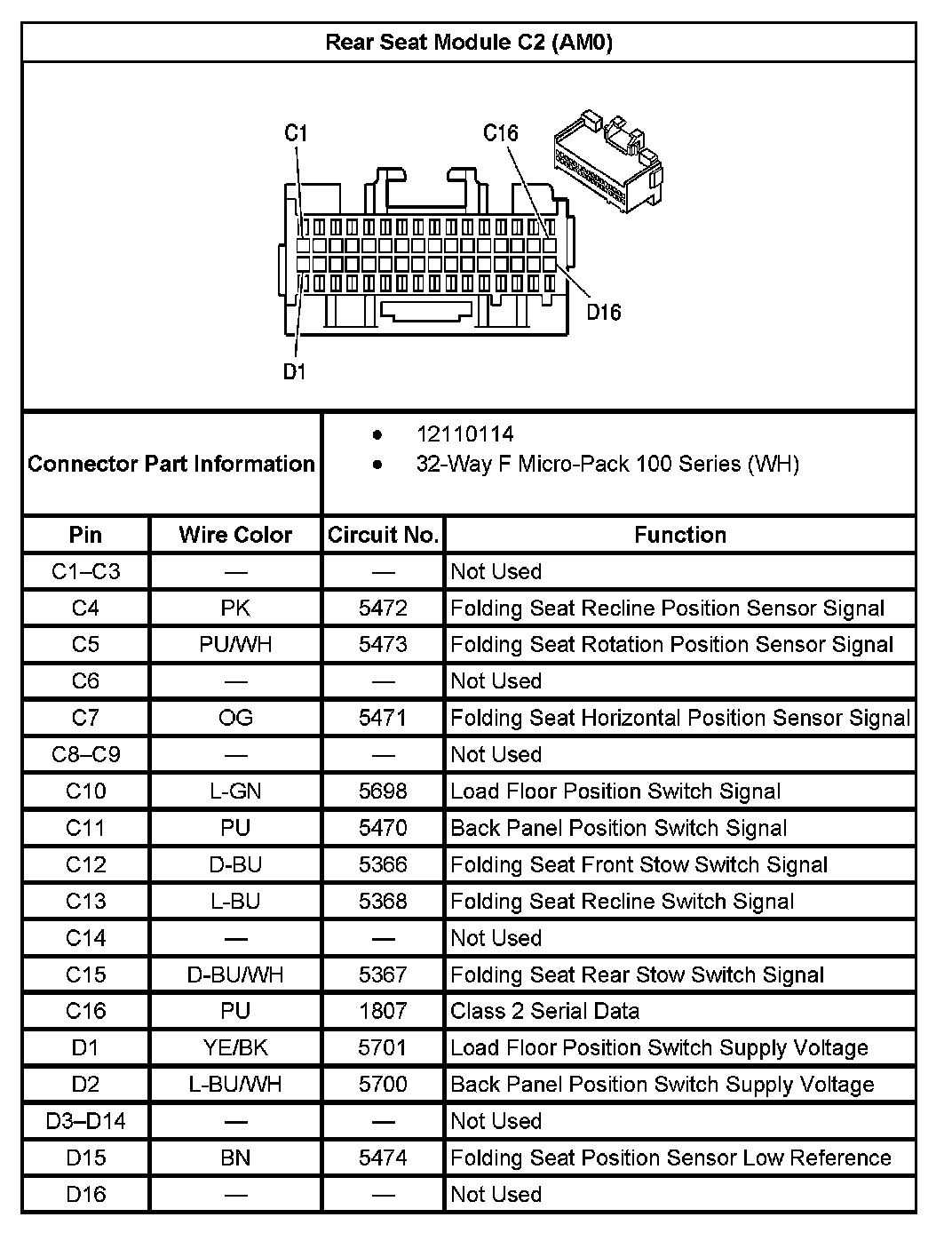

Rear Seat Module C2 (With RPO Code AM0):

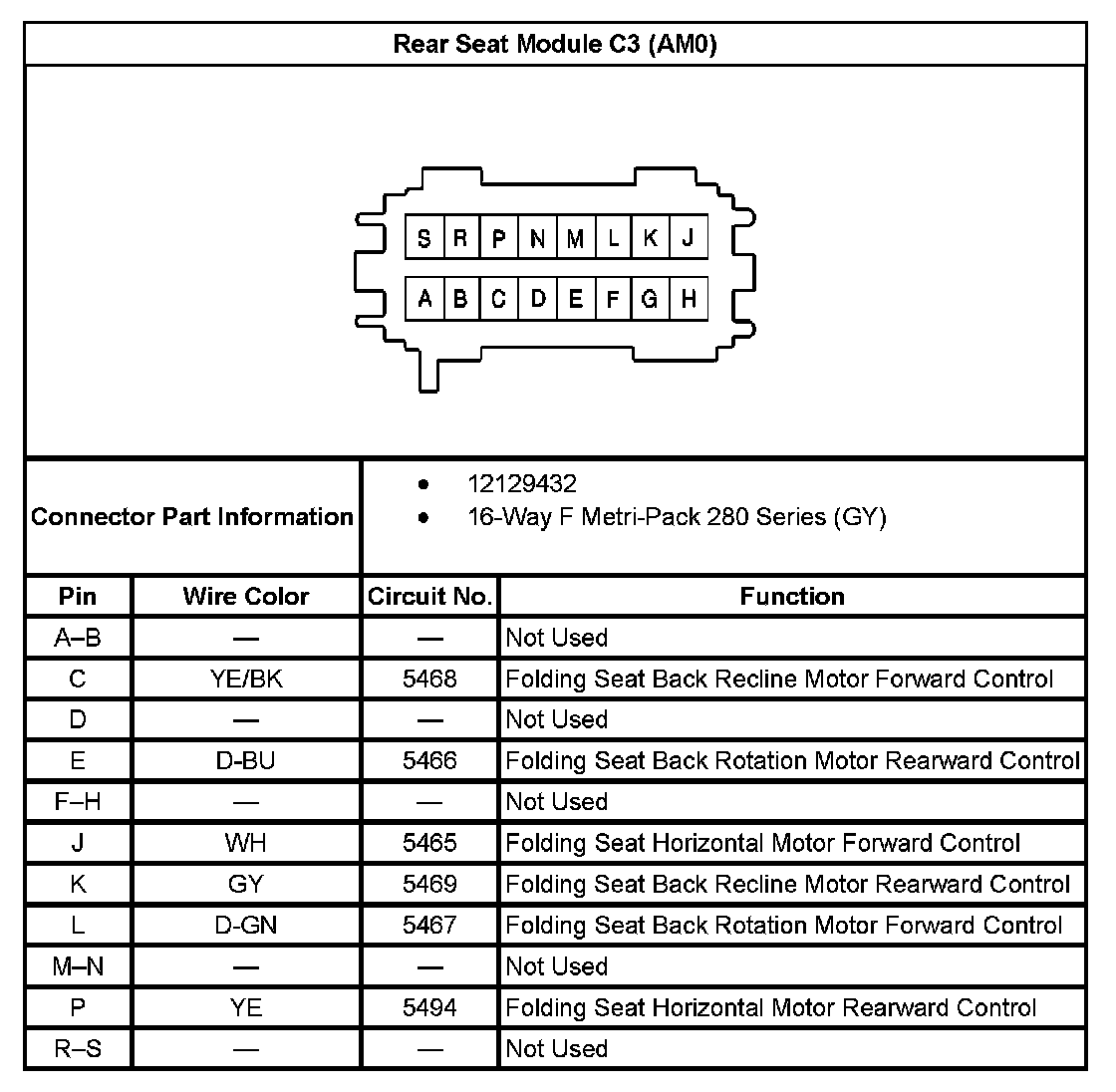

Rear Seat Module C3 (With RPO Code AM0):
