Power Trunk / Liftgate Hazard Sensor

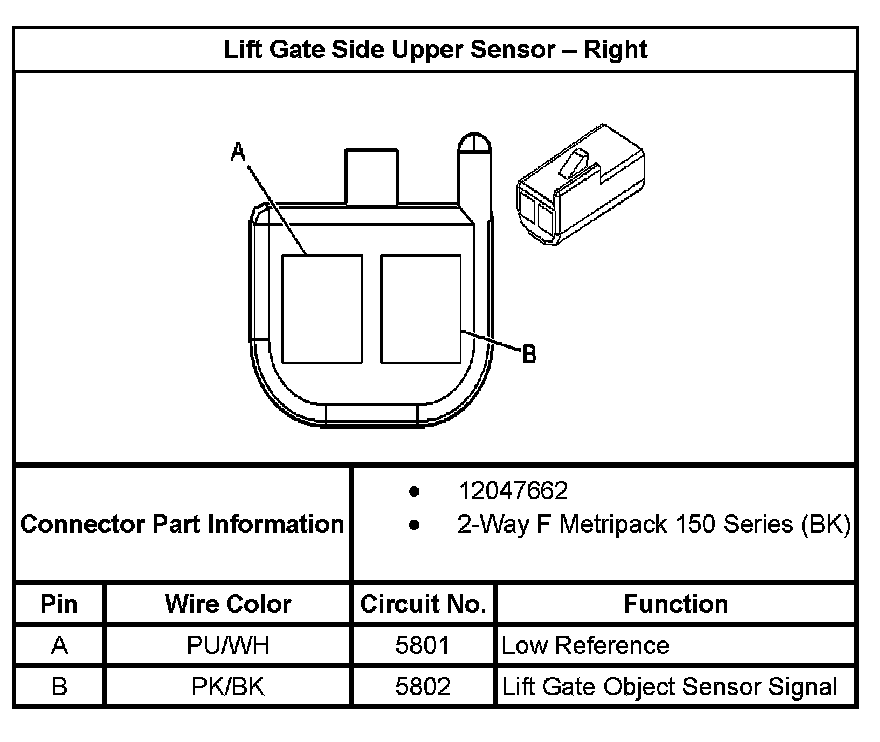

Lift Gate Side Upper Sensor - Right:

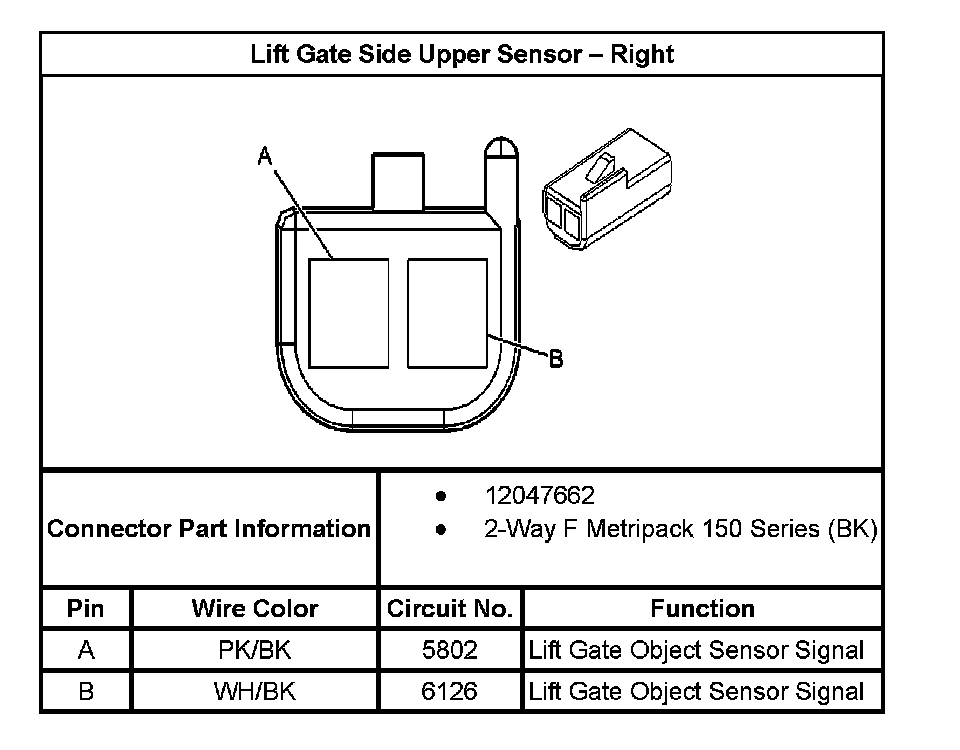

Lift Gate Side Upper Sensor - Right:
