Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2006
>>
SRX AWD V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Vanity Lamp
Vanity Lamp

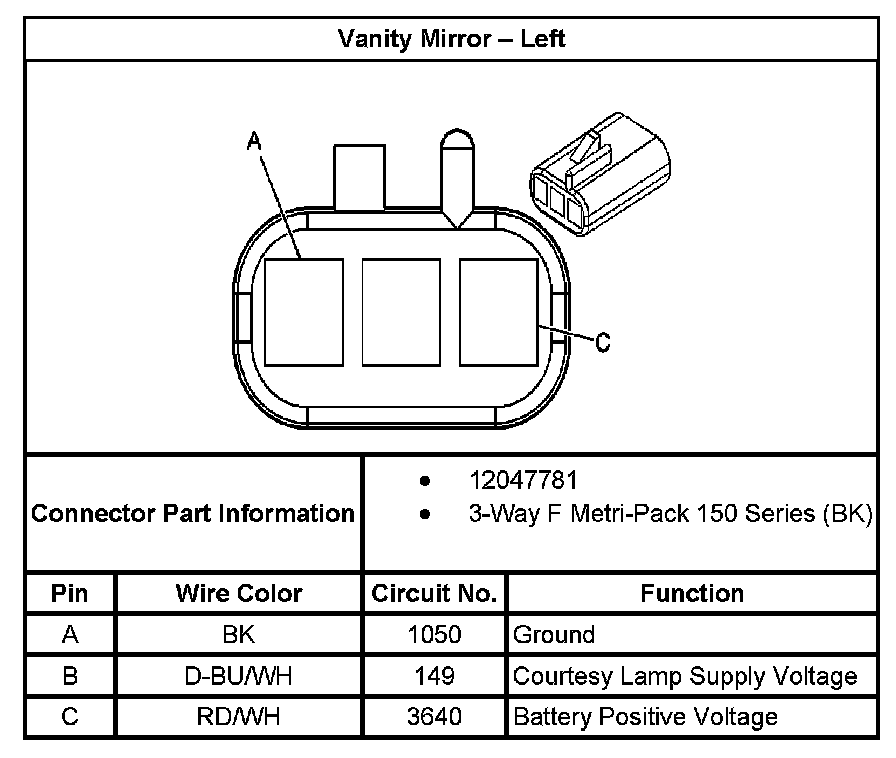

Vanity Mirror - Left:

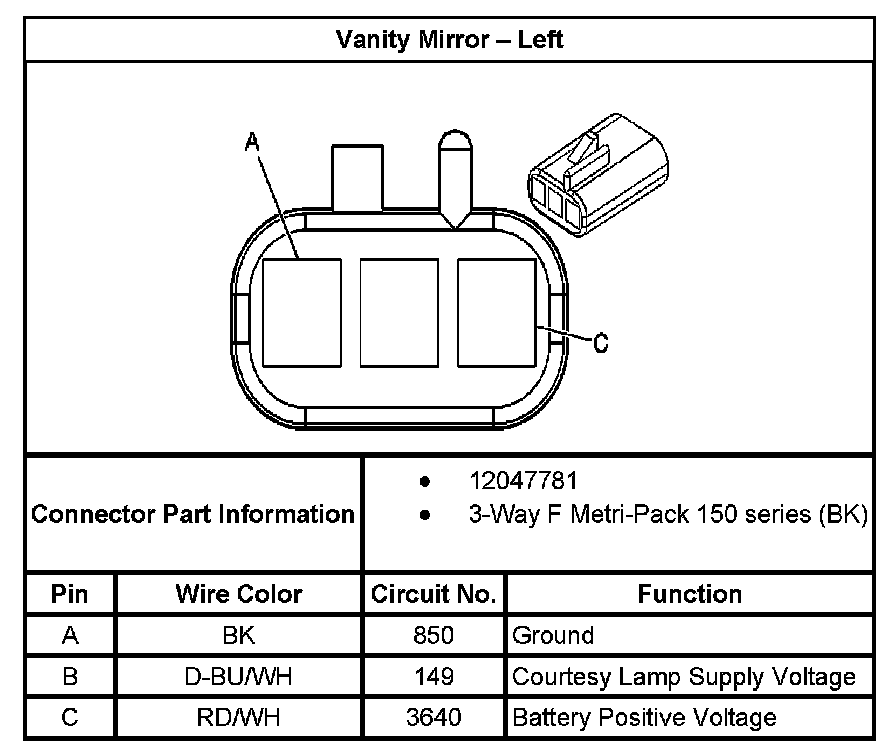

Vanity Mirror - Left:

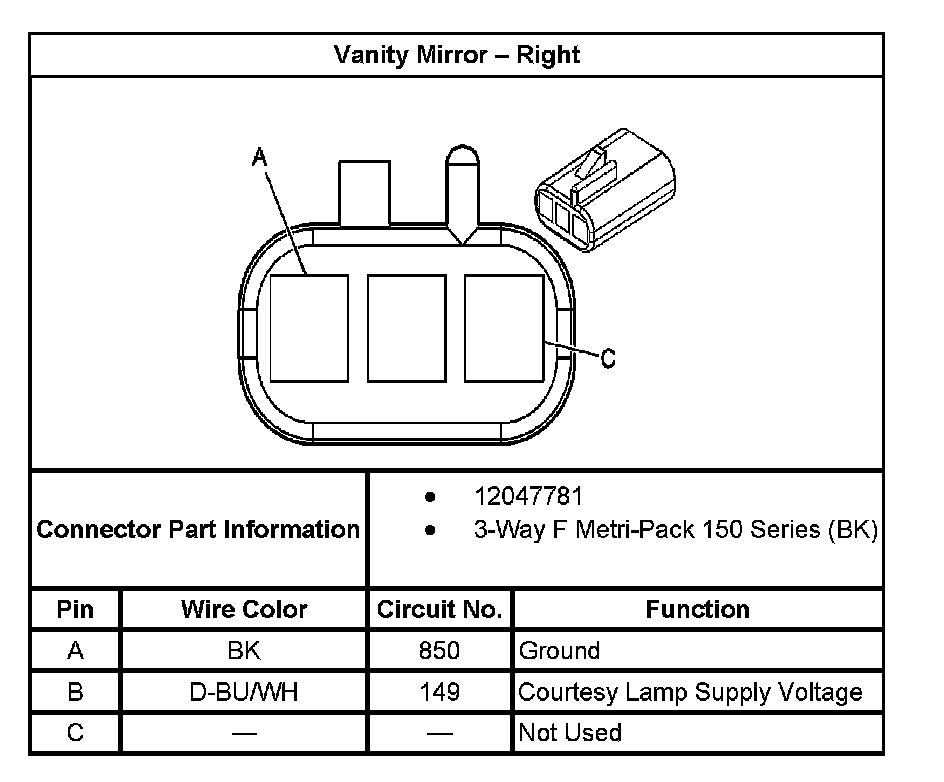

Vanity Mirror - Right:
