Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2006
>>
SRX AWD V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Engine Compartment Views
Engine Compartment Views

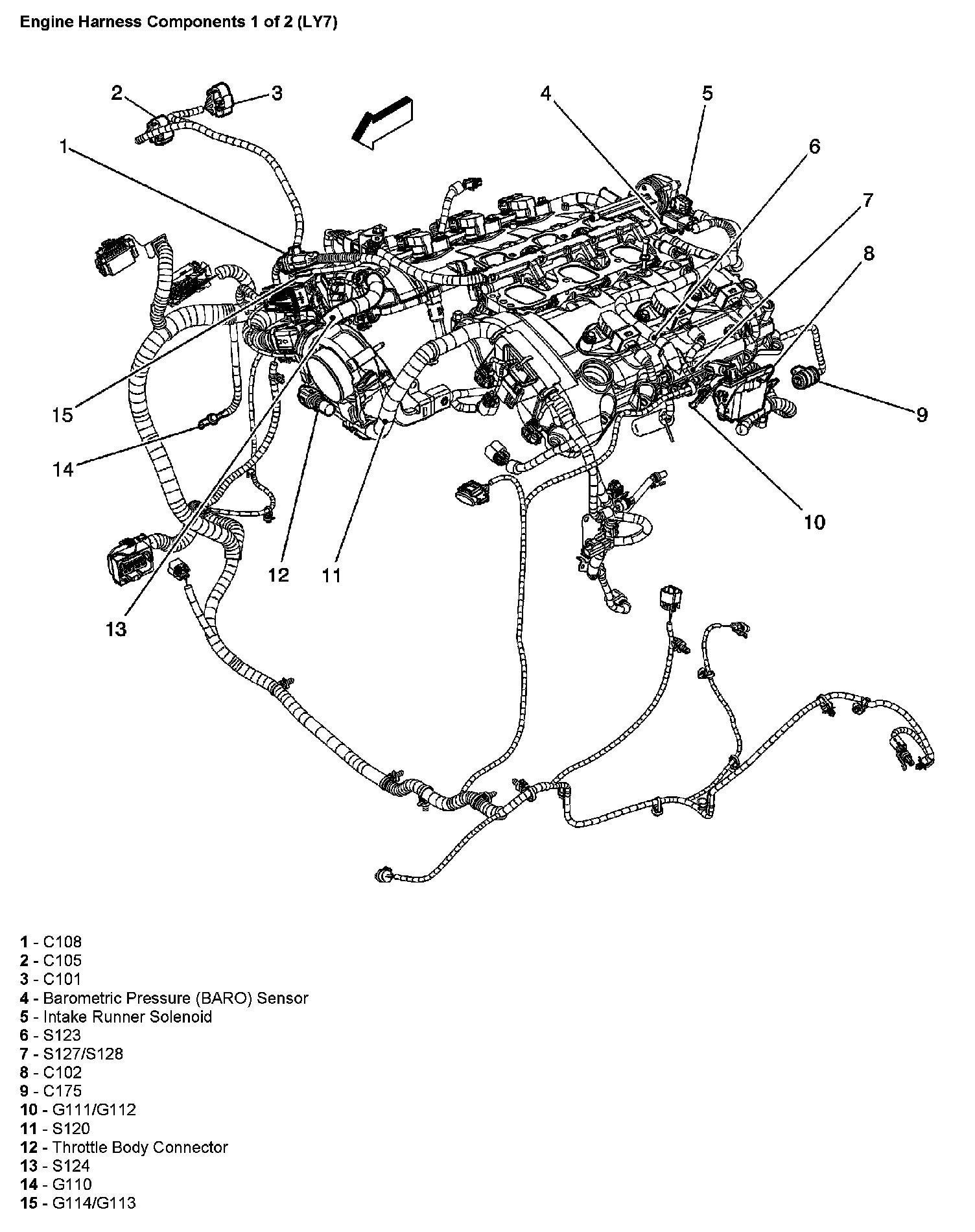

Engine Harness Components (Part 1)):
Engine Harness Components (Part 2):
