Oil Pressure Sensor: Service and Repair

Engine Oil Pressure Sensor and/or Switch Replacement
Removal Procedure
1. Turn the ignition OFF.
2. Disconnect the oil pressure sensor electrical connector.

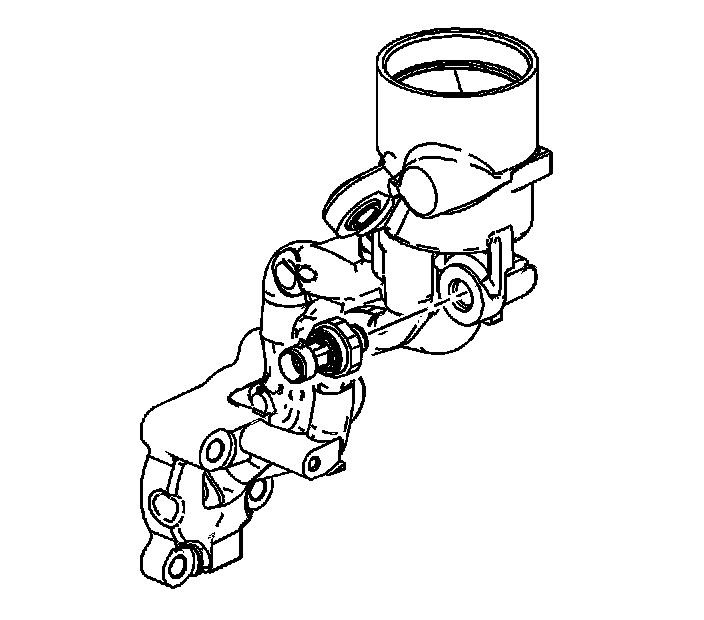

3. Remove the oil pressure sensor.

Installation Procedure





1. Install the oil pressure sensor.
Tighten the oil pressure sensor to 20 Nm (15 ft. lbs.).

Notice: Refer to Fastener Notice in Service Precautions.

2. Connect the oil pressure sensor electrical connector.
