Accessory and Liftgate Control Module Replacement

Accessory and Liftgate Control Module Replacement






Remove the body side trim panel.

Procedure

1. Disconnect the electrical connector.
2. Reprogram the accessory and liftgate control module if replaced. Programming and Relearning

Tip

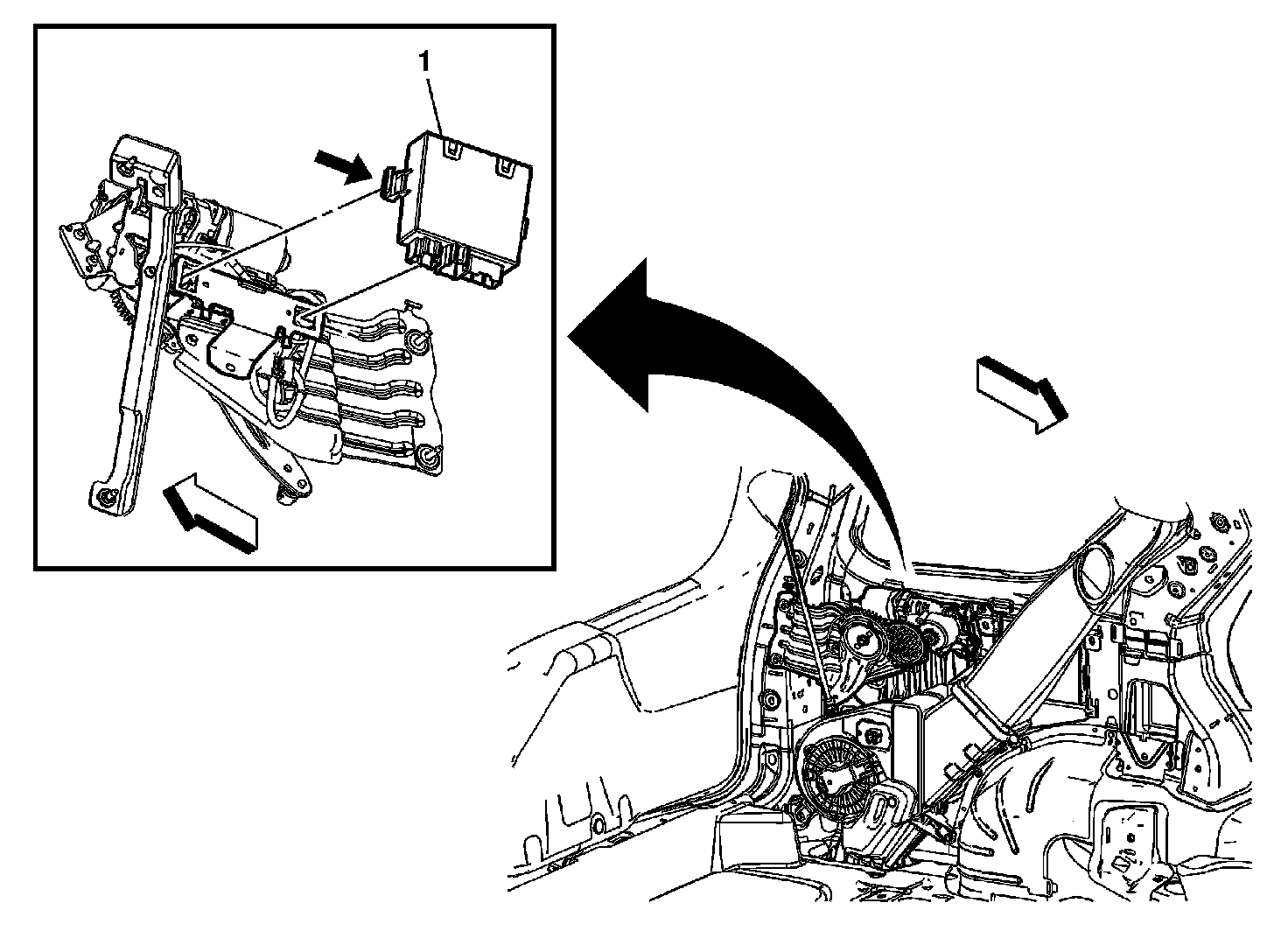

1. The liftgate control module is located behind the liftgate close actuator assembly.
2. Push in the tab to release the module from the liftgate actuator bracket.
