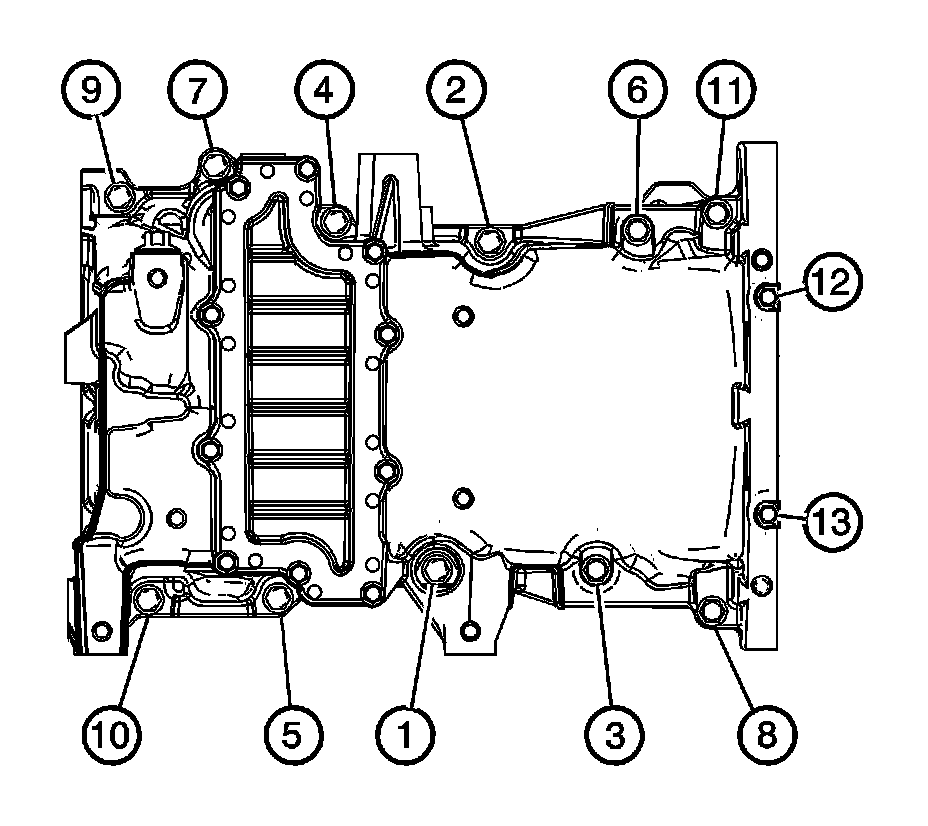

Oil Pan, Engine

Bolt - Block M8 23 Nm (17 ft. lbs.)
Bolt - Crankshaft Rear Oil Seal Housing M6 10 Nm (89 inch lbs.)
