Pedal Positioning Sensor

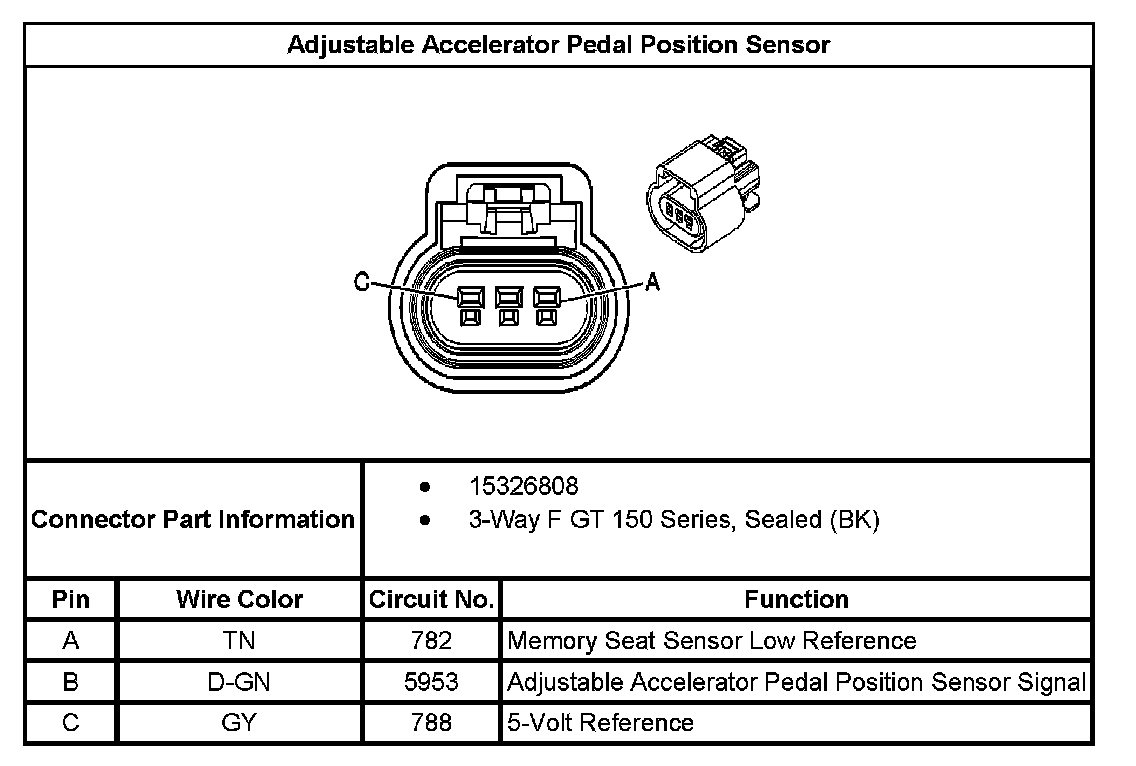

Adjustable Accelerator Pedal Position Sensor:

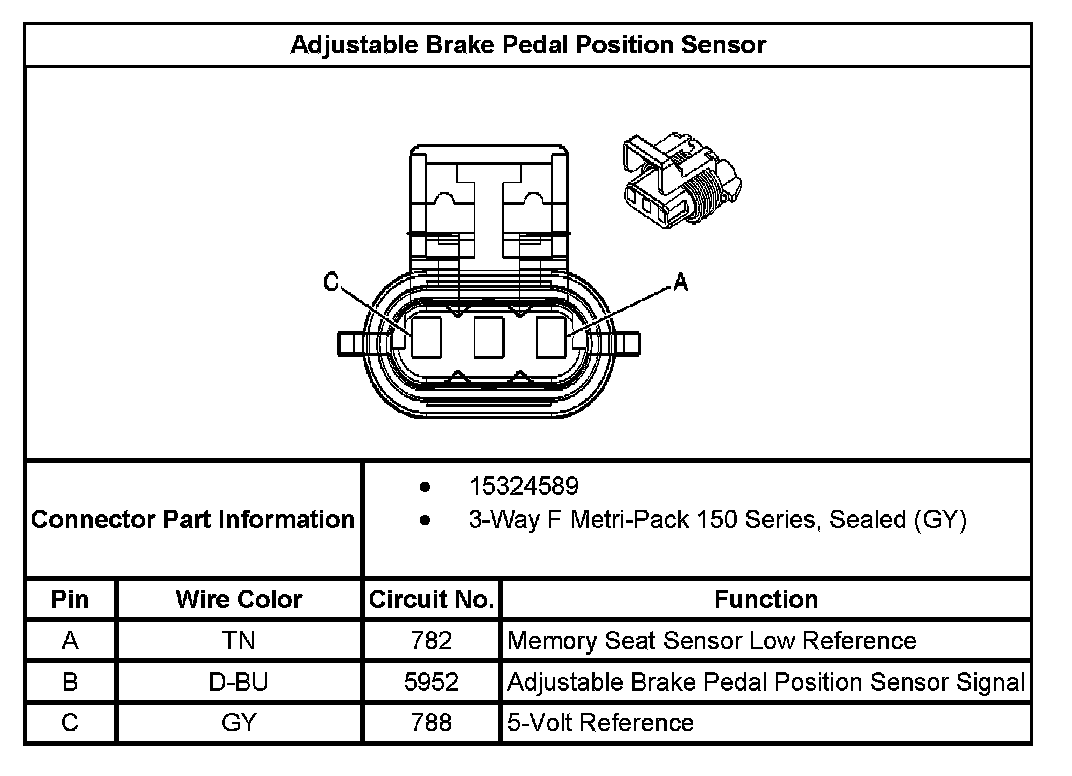

Adjustable Brake Pedal Position Sensor:

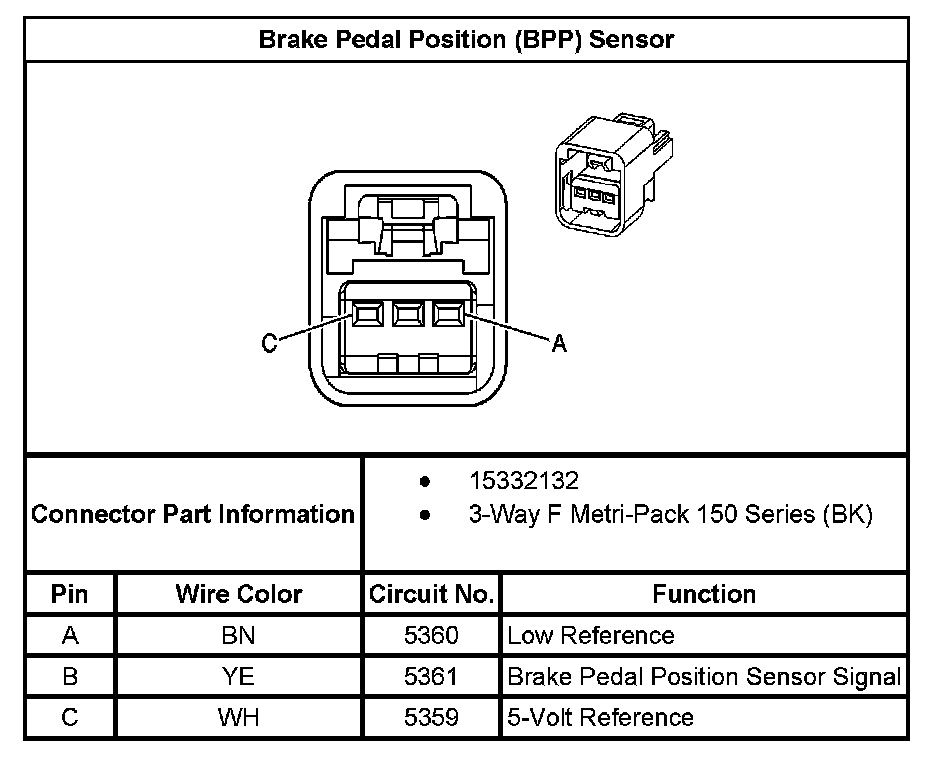

Brake Pedal Position (BPP) Sensor:
