Home >> Cadillac >> 2006 >> SRX AWD V8-4.6L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Trunk / Liftgate Switch >> Lift Gate Handle Switch

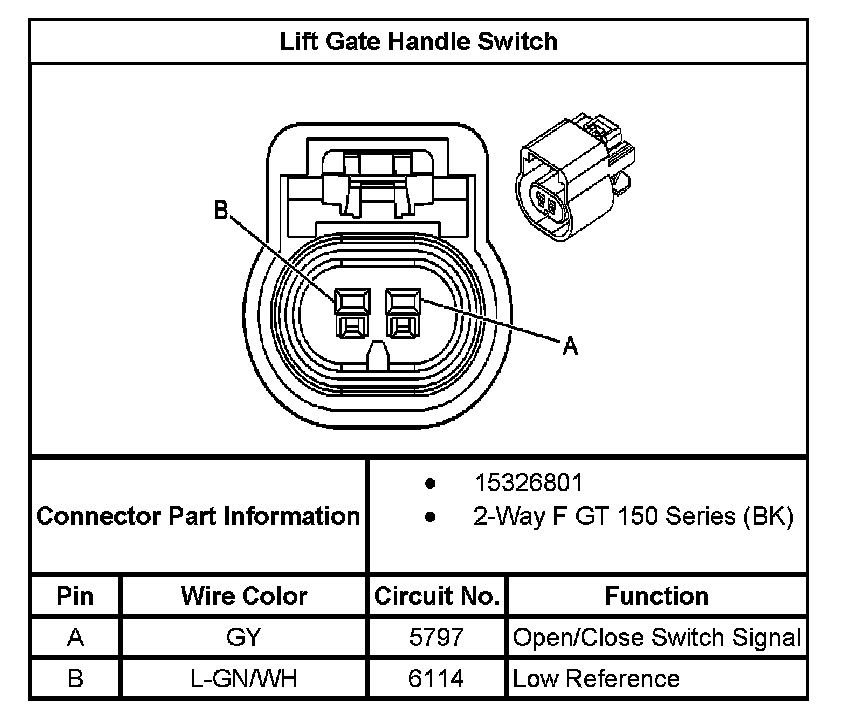

Lift Gate Handle Switch

Lift Gate Handle Switch:
