Home >> Cadillac >> 2006 >> SRX AWD V8-4.6L VIN A >> Repair and Diagnosis >> Lighting and Horns >> Map Light >> Locations

Map Light: Locations

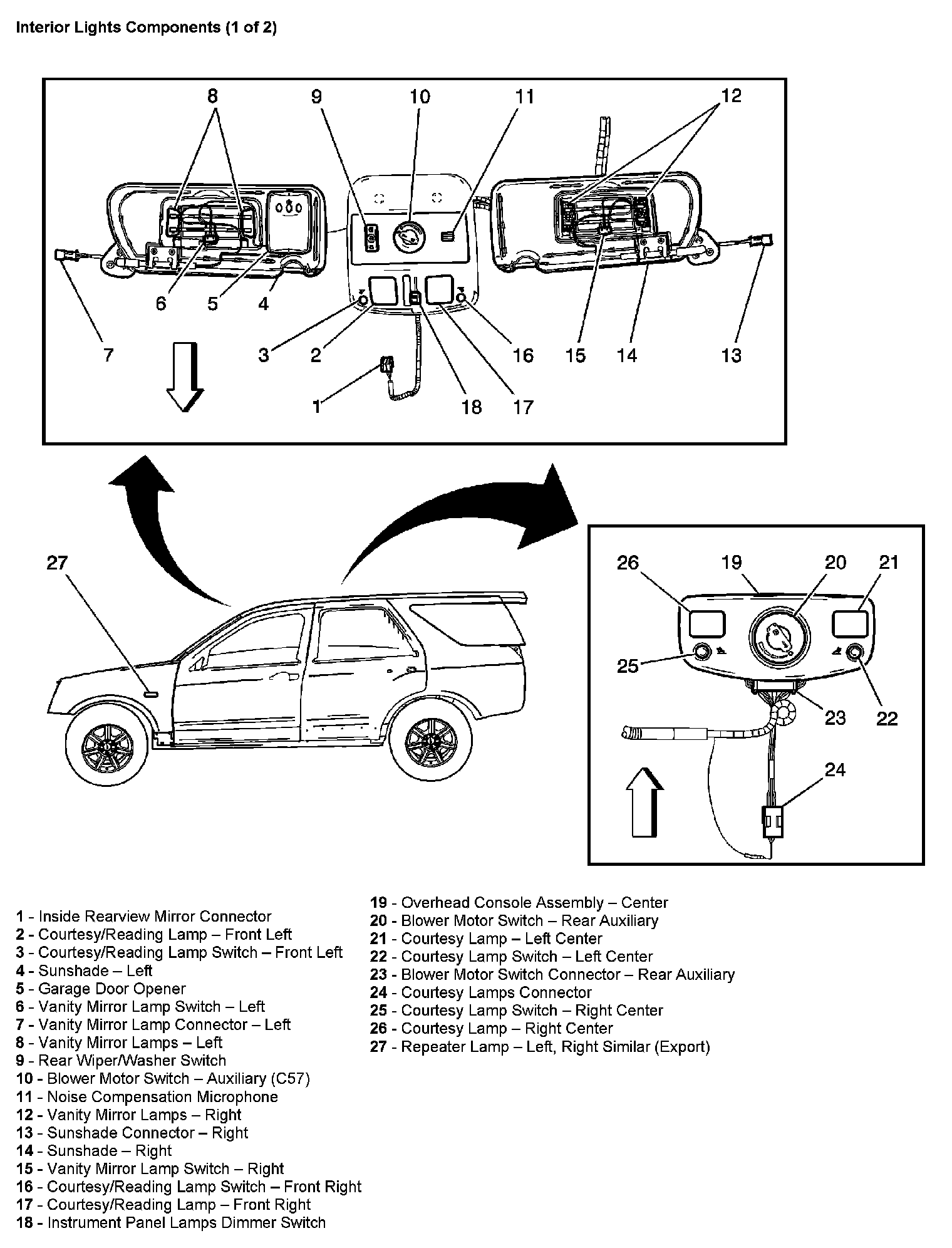

Interior Lights Components (Part 1):
