Engine Compartment Views
Engine Compartment Views

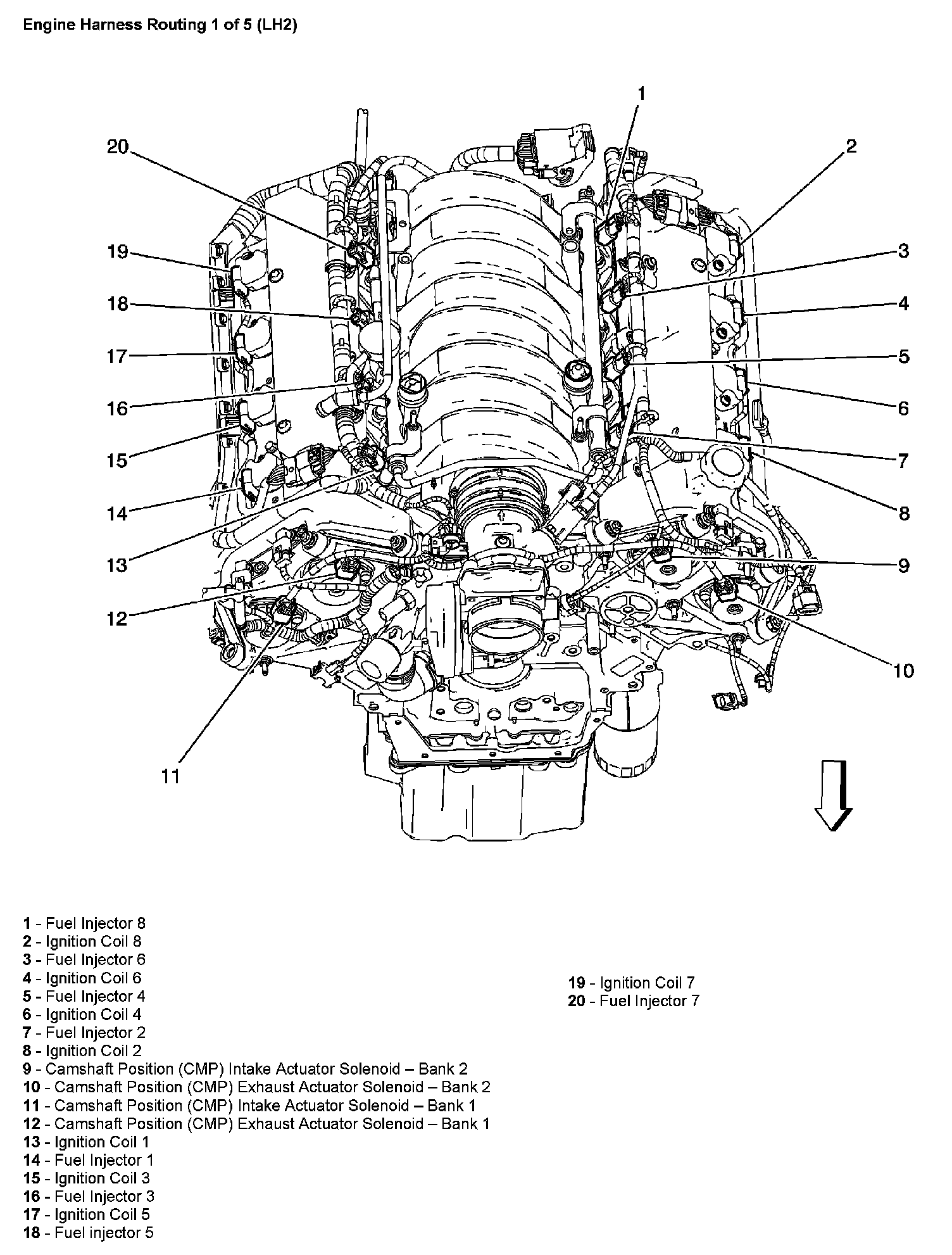

Engine Harness Routing (Part 1):

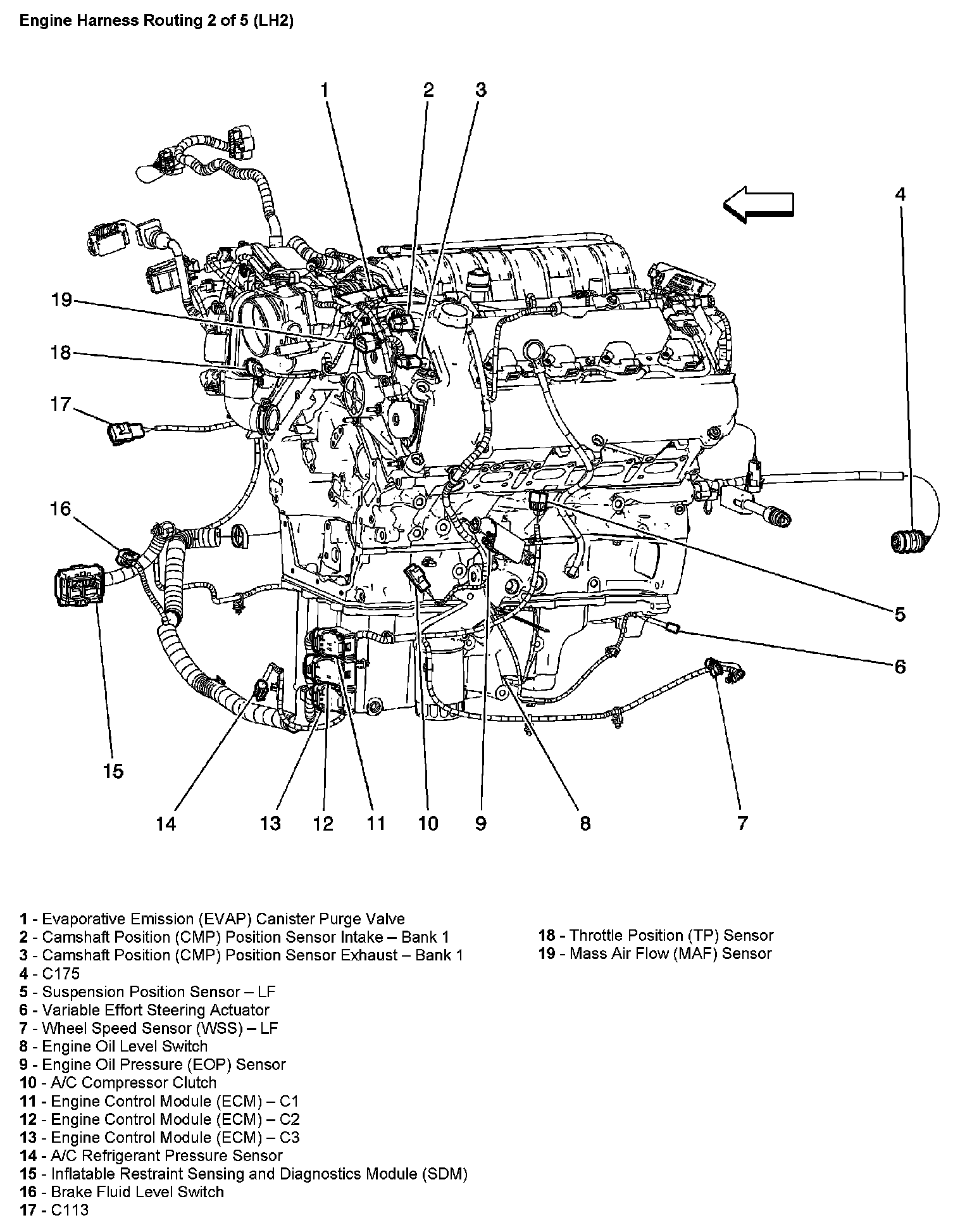

Engine Harness Routing (Part 2):
Engine Harness Routing (Part 3):

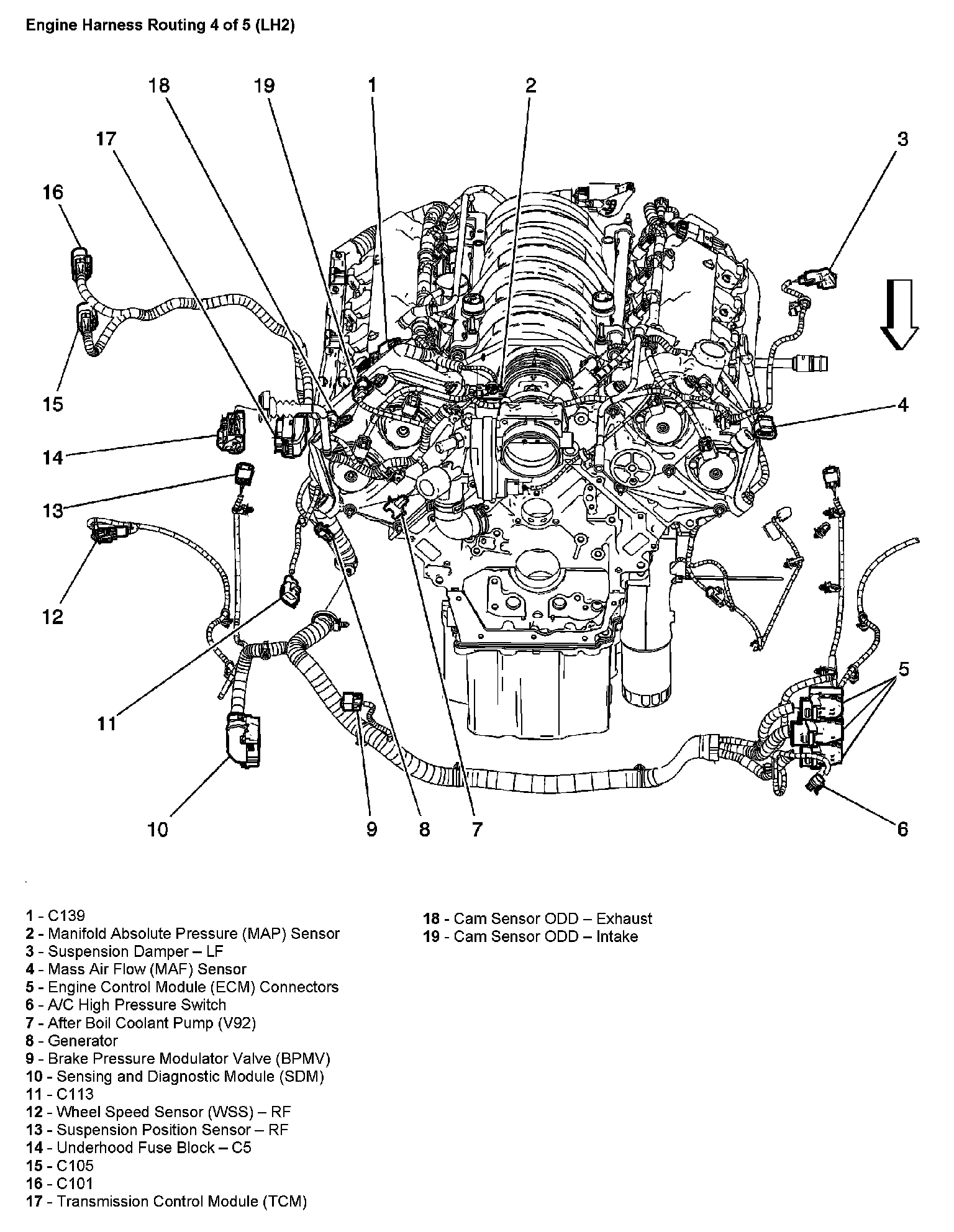

Engine Harness Routing (Part 4):

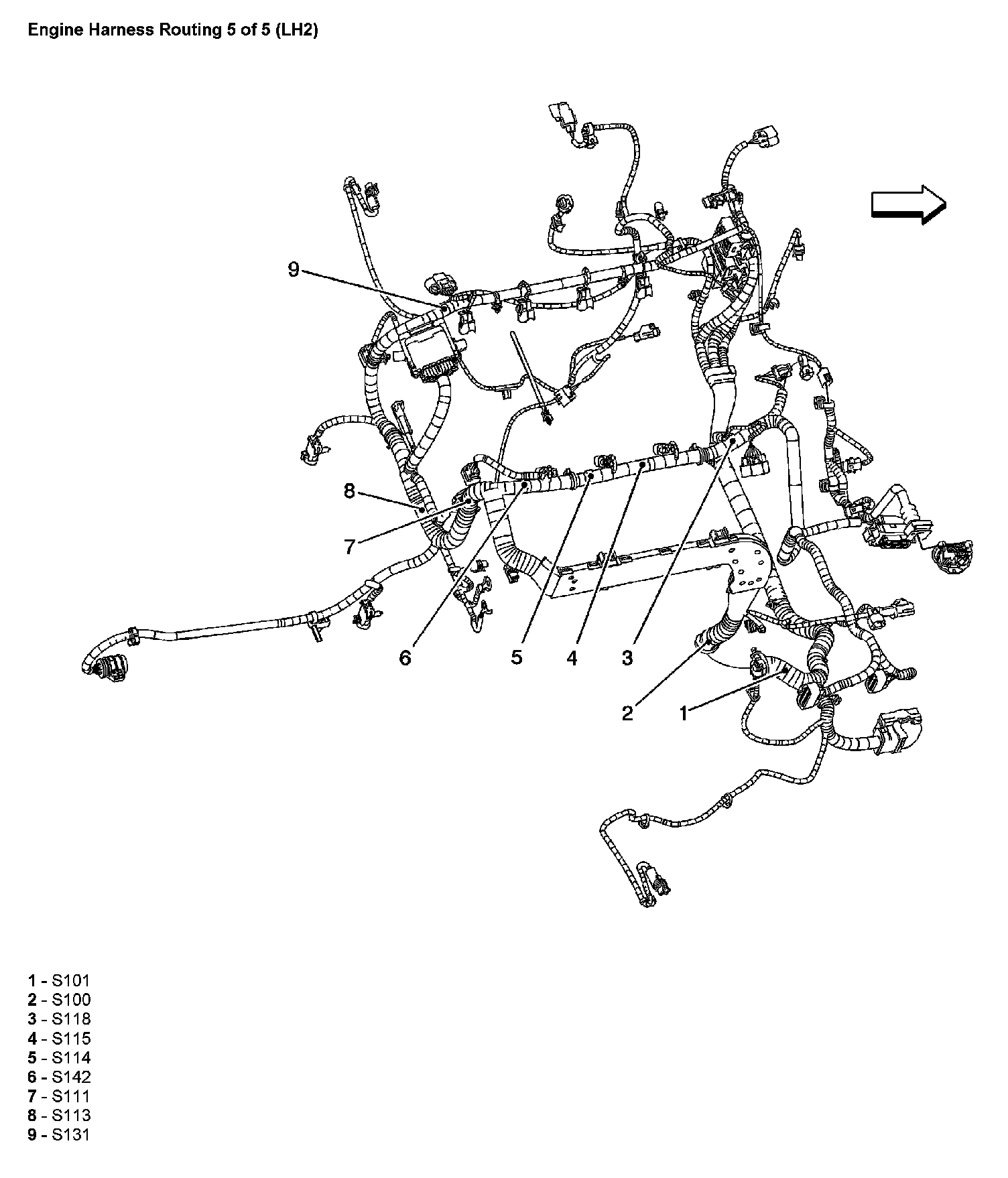

Engine Harness Routing (Part 5):
