Home >> Cadillac >> 2007 >> CTS V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Injector

Fuel Injector



Engine Controls Connector End Views

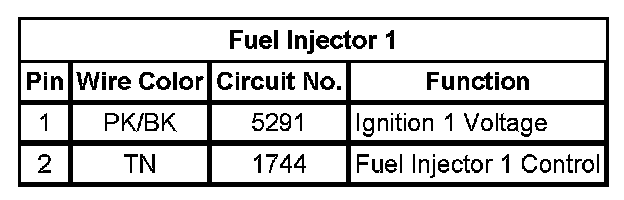

Fuel Injector 1














Fuel Injector 2














Fuel Injector 3














Fuel Injector 4














Fuel Injector 5














Fuel Injector 6














Fuel Injector 7














Fuel Injector 8
