80. Engine Valley Cover Installation

Engine Valley Cover Installation





Important: All gasket surfaces should be free of oil or other foreign material during assembly.

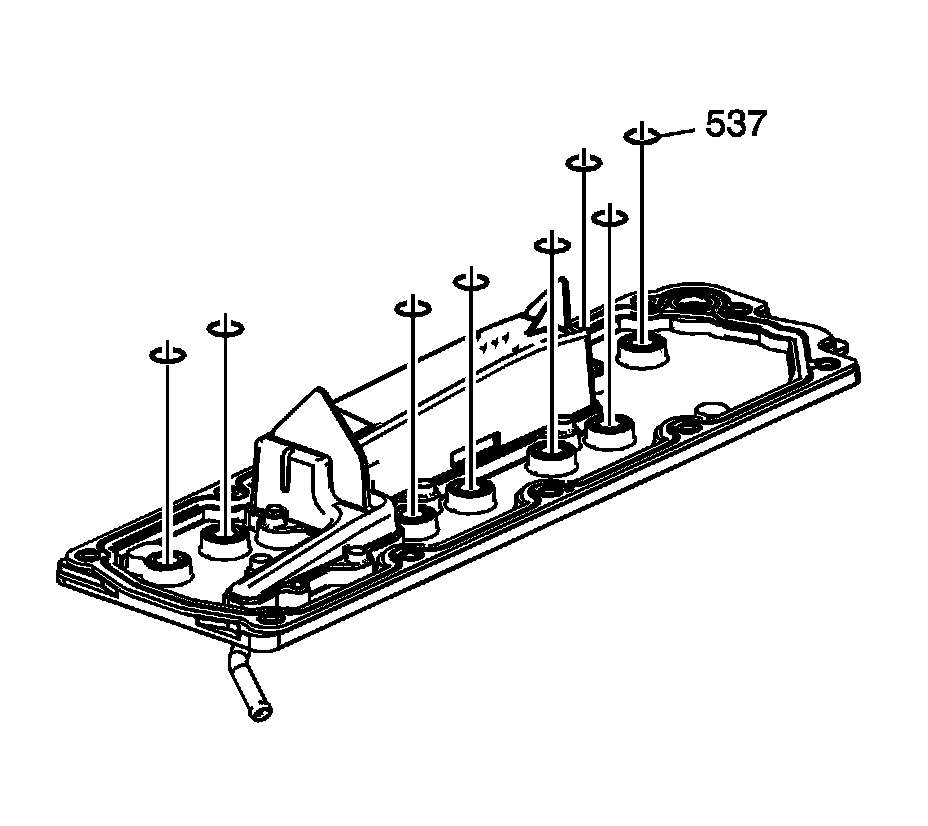

1. Lubricate the O-ring seals (537) with clean engine oil.
2. Install the O-ring seals (537) to the cover.





Notice: Refer to Fastener Notice.

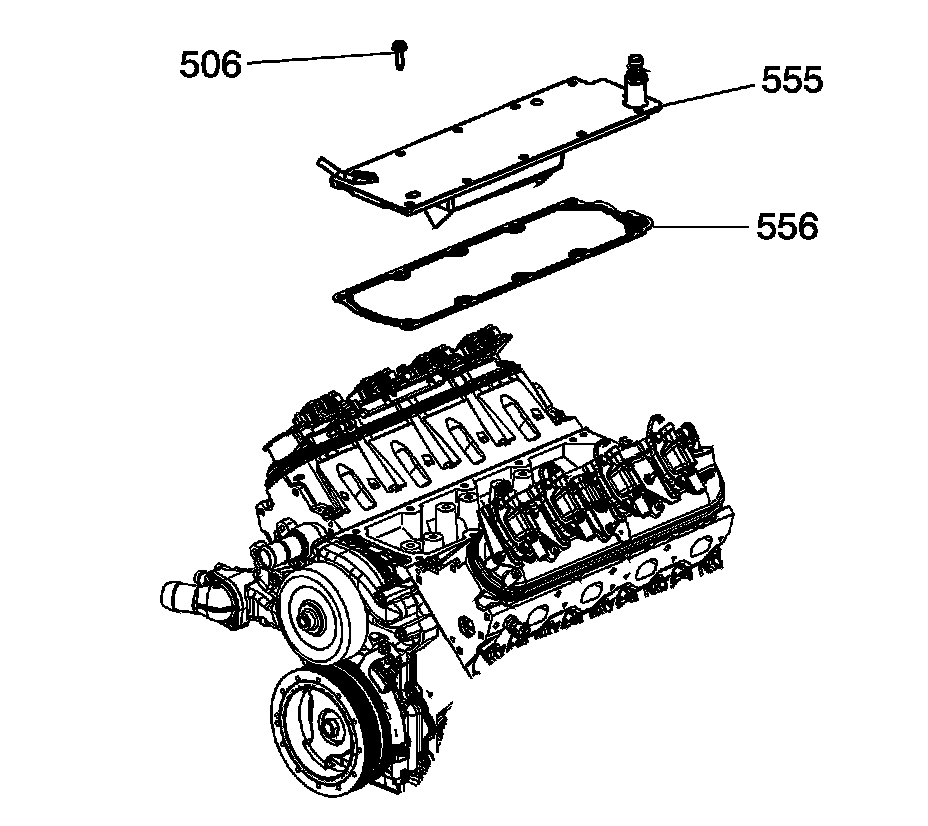

3. Install the cover (555), gasket (556), and bolts (506).

Tighten the cover bolts to 25 N.m (18 lb ft).




4. Apply sealant GM P/N 12346004 (Canadian P/N 10953480), or equivalent, to the threads of the sensor.

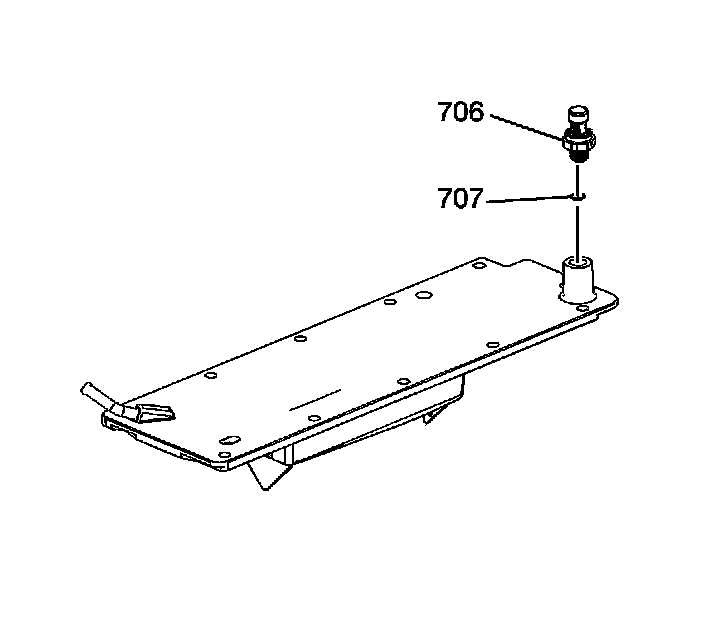

5. Install the oil pressure sensor (706) and sealing washer (707).

Tighten the sensor to 35 N.m (26 lb ft).
