Instrument Cluster Schematics

Instrument Cluster Schematics

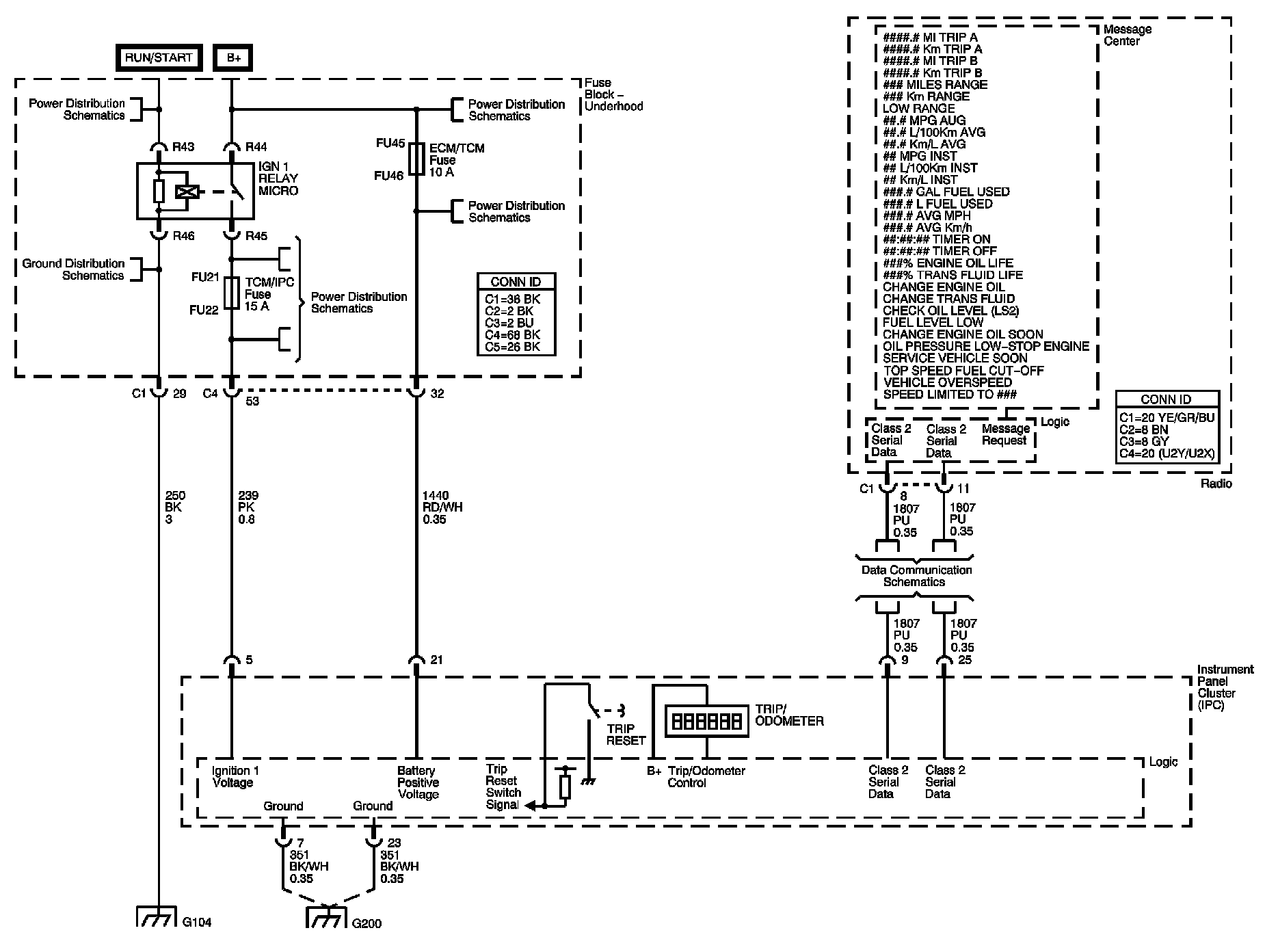

Power, Ground, Serial Data, Odometer, and DIC






Indicators

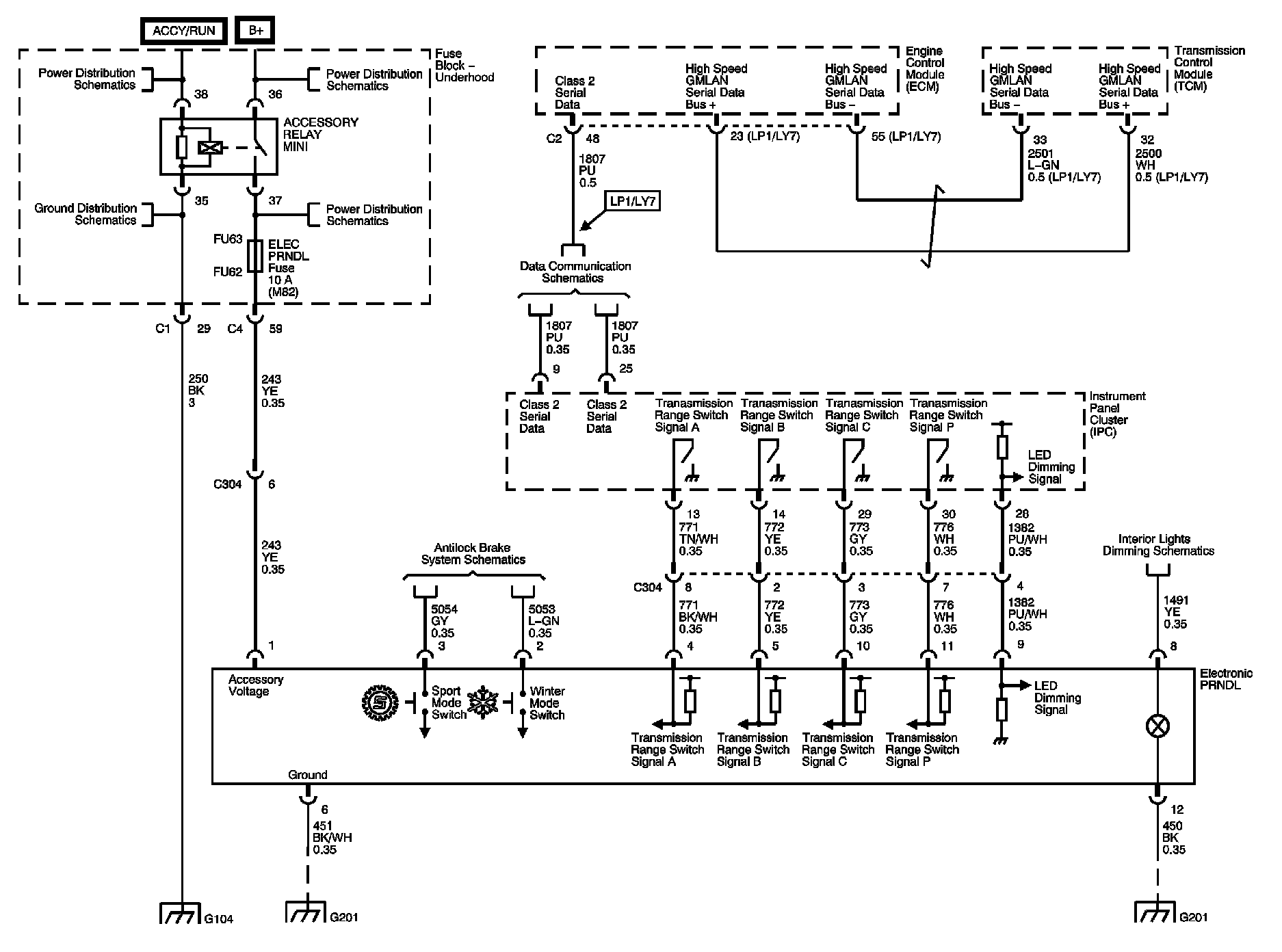

Electronic PRNDL (M82)






Engine Oil Pressure (EOP) Sensor, Engine Oil Level/Temperature Sensor, TFT, and Indicators

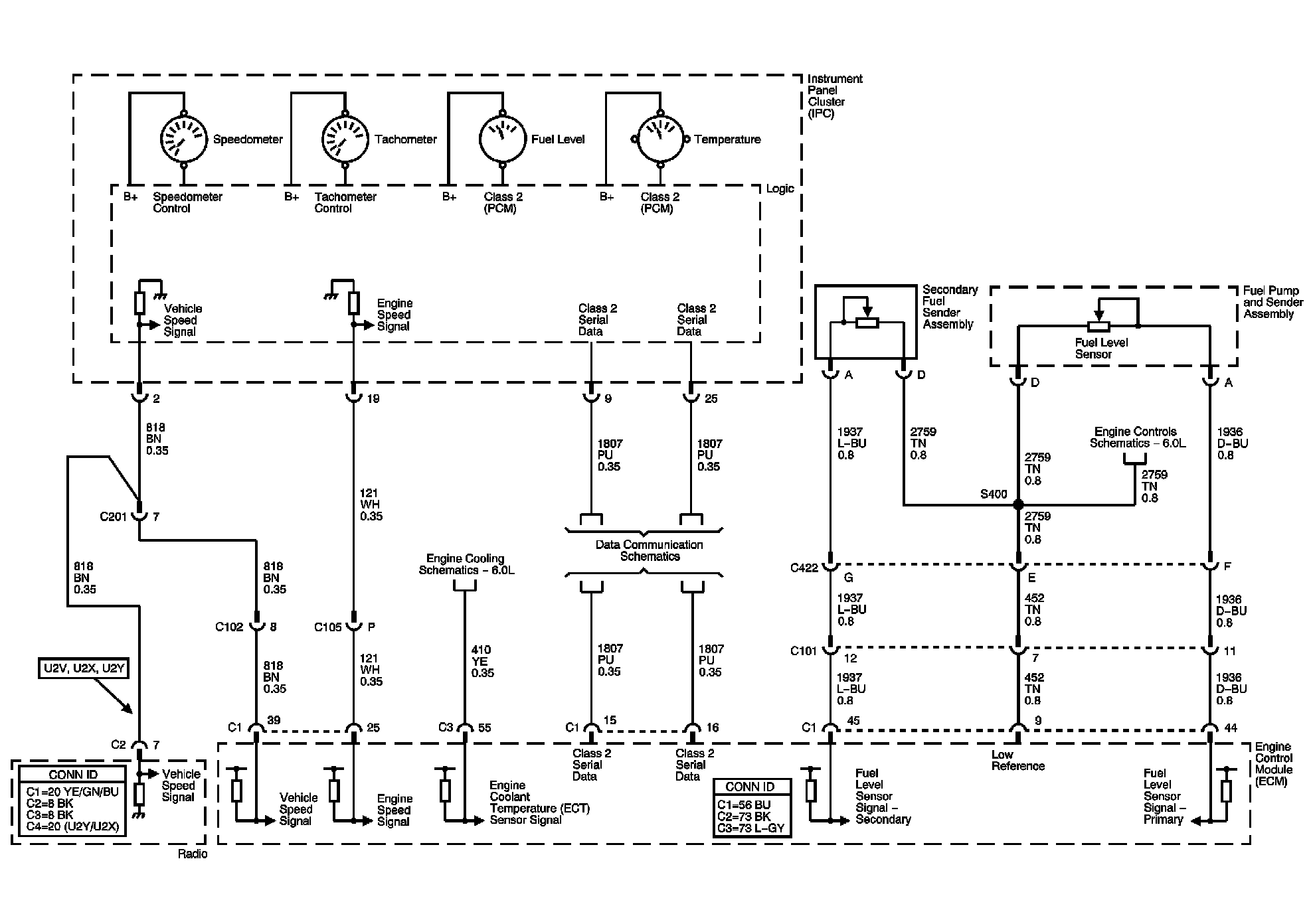

Gages - 6.0L (LS2)






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
