Transmission Case Assemble

Transmission Case Assemble

Tools Required

* DT-47722 Shift Rail Bushing Remover and Installer
* DT-47724 Output Shaft Bearing Cup Installer
* DT-47726 Countershaft Rear Bearing Installer

Rear Case Assemble




1. Apply gear oil to bearing. Use DT-47726 to install bearing (138).

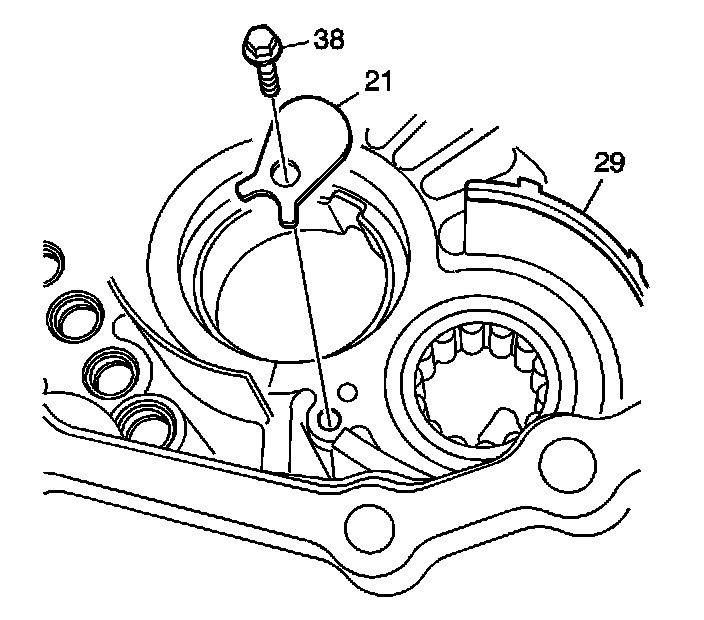

2. Install the bearing retainer (21) and bolt (38).

Tighten the bolt to 11.3 N.m (100 lb in).

3. Install the gasket (29).




4. Install the oil trough (17).




5. Using DT-47722, install the bearing (25) in the rear case.

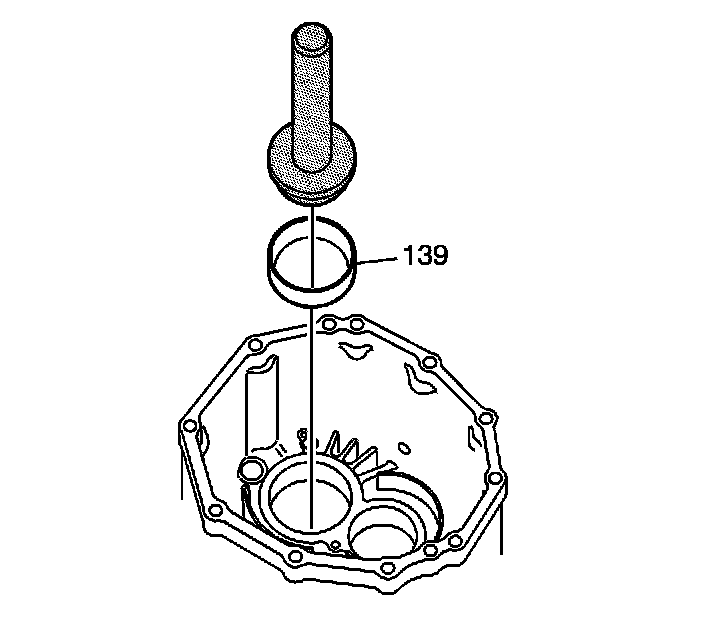

6. Using DT-47724, install the tapered bearing race (139).

Middle Case Assemble

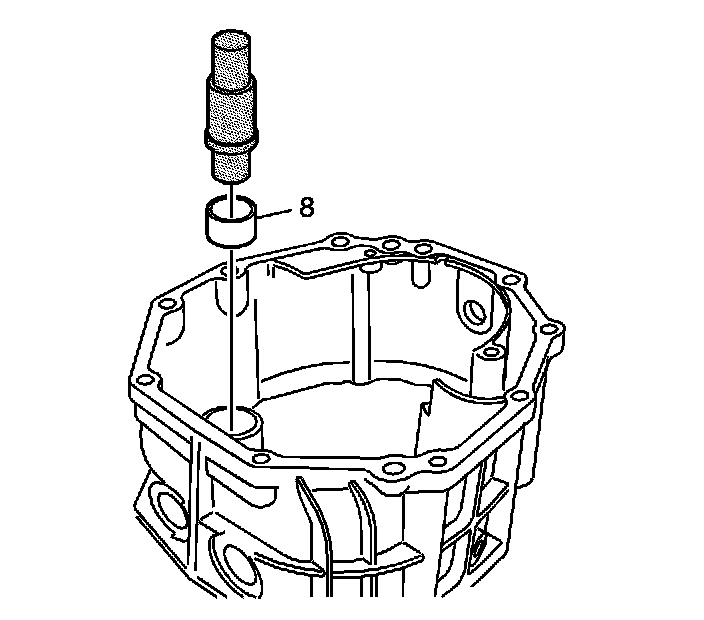

Using DT-47722, install the bearing (8) in the middle case.
