Cruise Control Switch Indicator Inoperative



Cruise Control Switch Indicator Inoperative

Diagnostic Aids

* Repair any brake system related DTCs before performing this diagnostic.
* If a BCM has been replaced, the brake pedal position (BPP) sensor must be calibrated. Refer to Brake Pedal Position Sensor Calibration.
* For an intermittent condition, refer to Testing for Intermittent Conditions and Poor Connections in Diagnostic Aids. Component Tests and General Diagnostics

Test

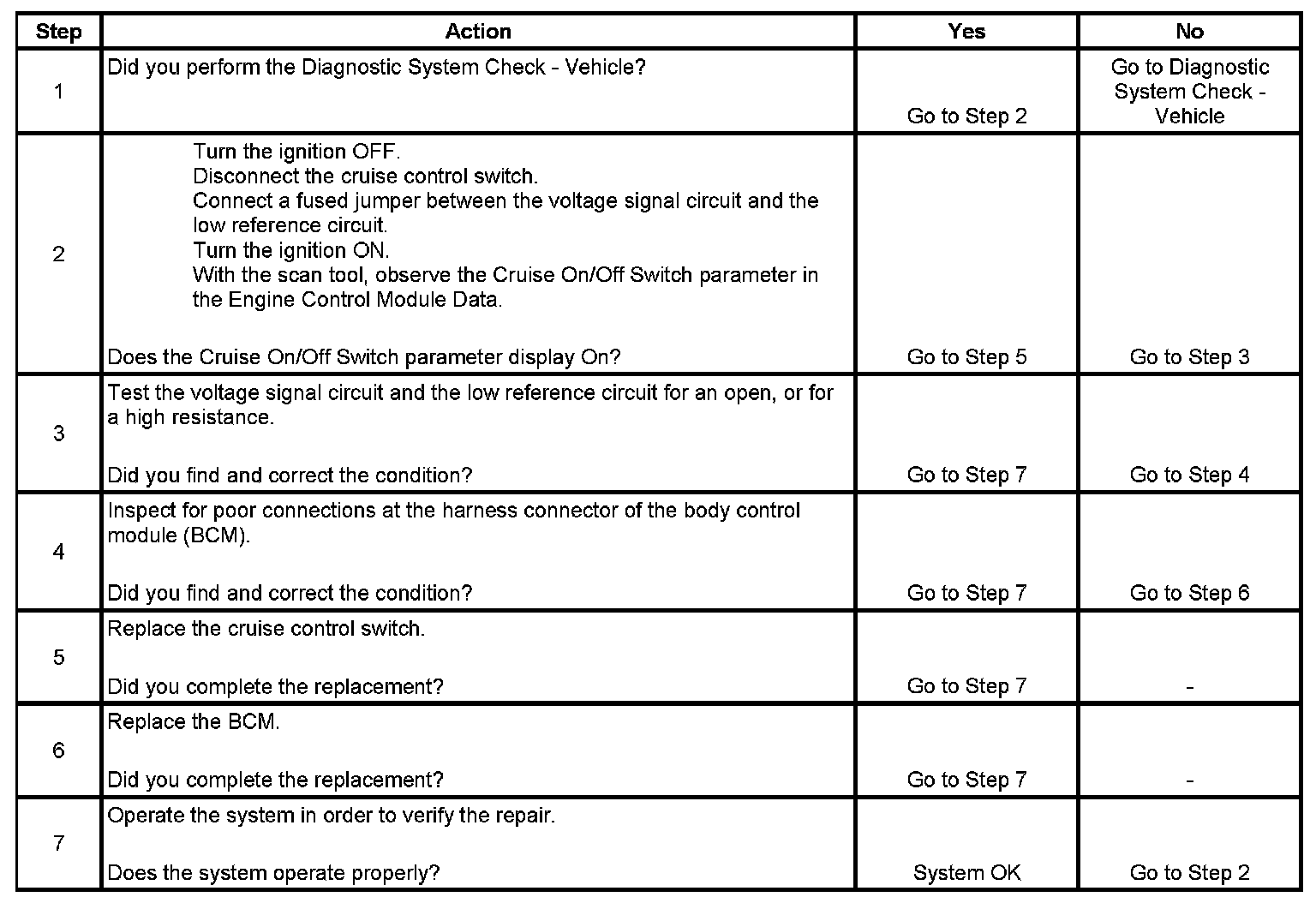

Step 1 - Step 7:
