Components



Master Electrical Component List

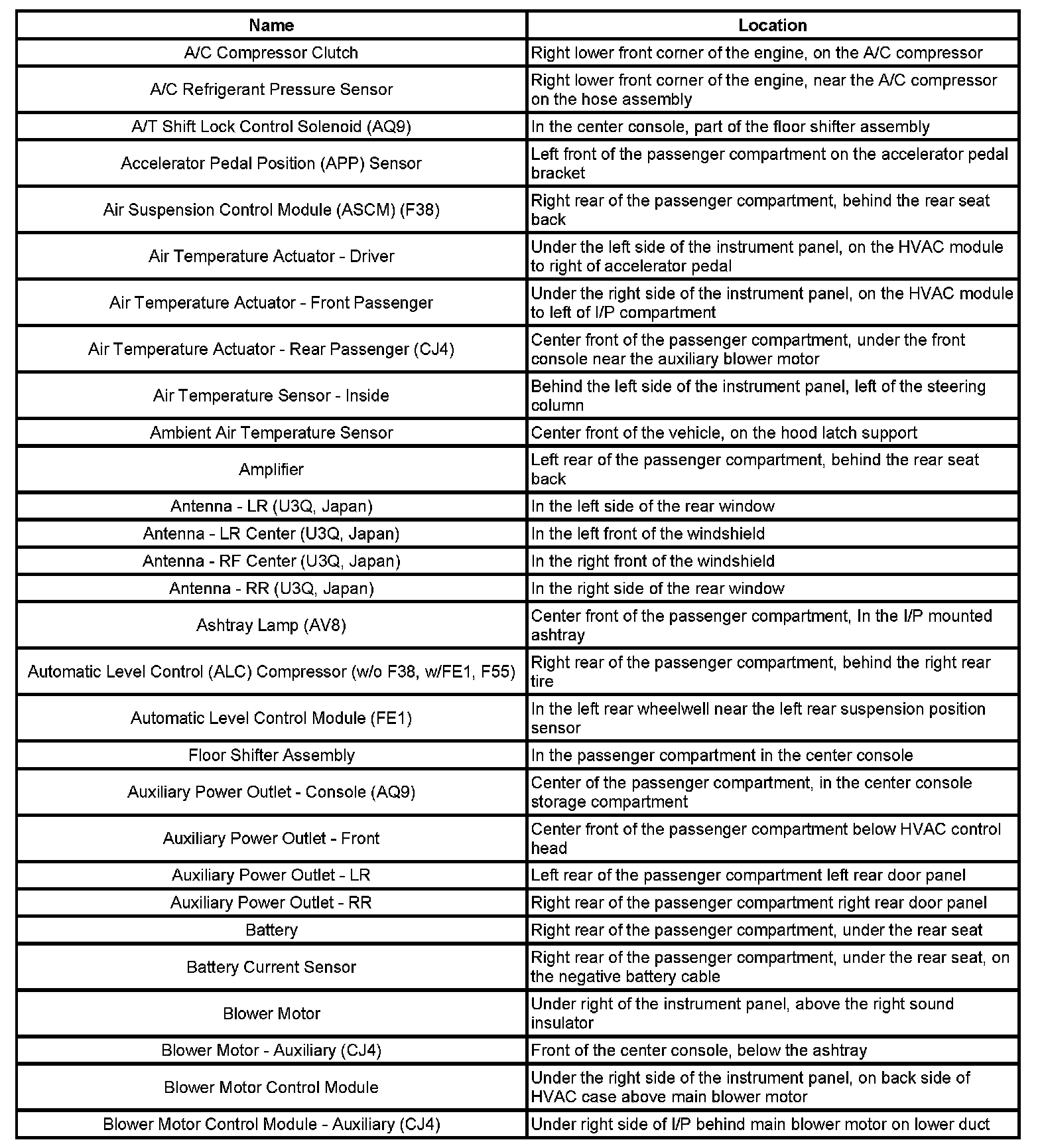

A/C - Bl:

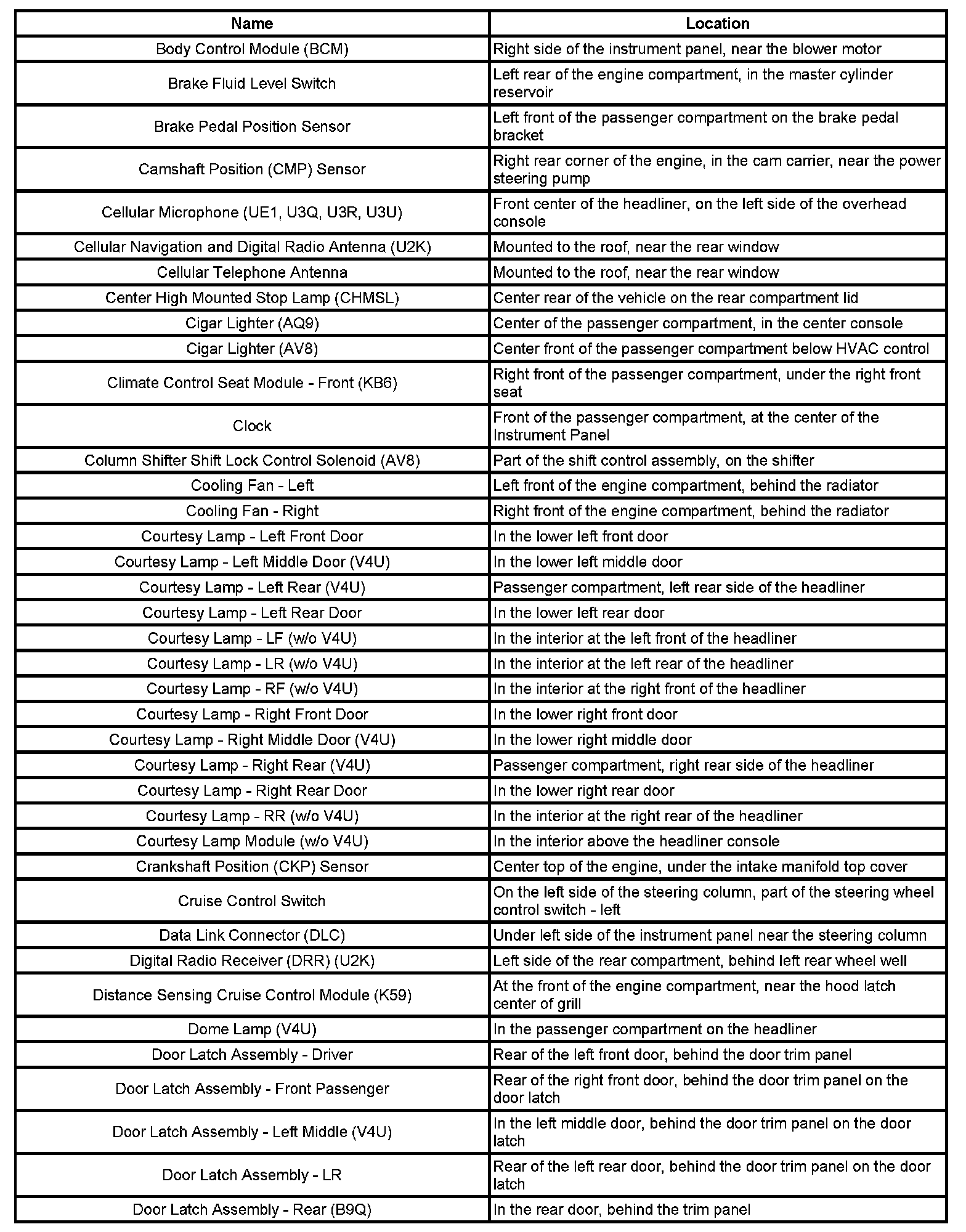

Bo - Do:

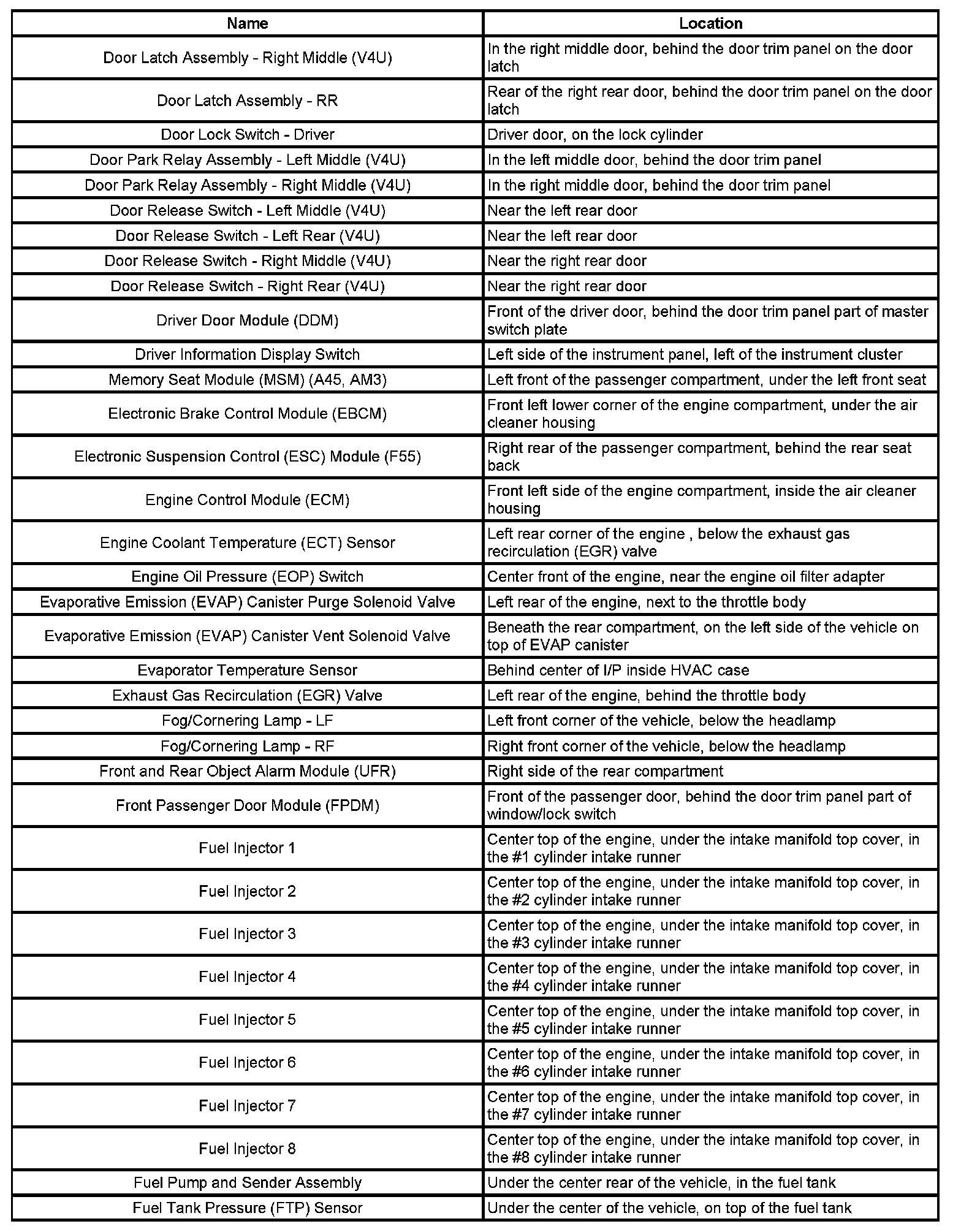

Do - Fu:

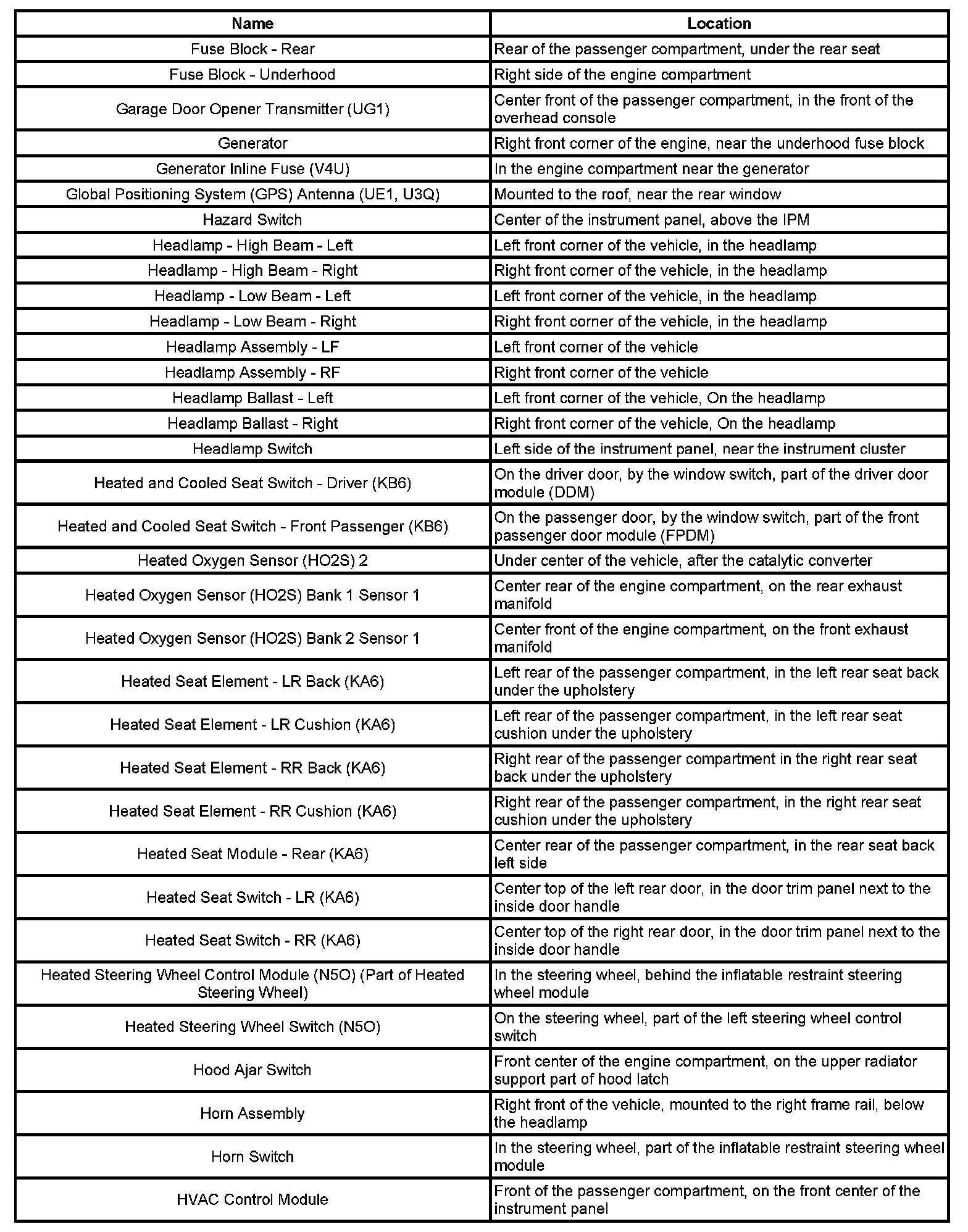

Fu - HV:

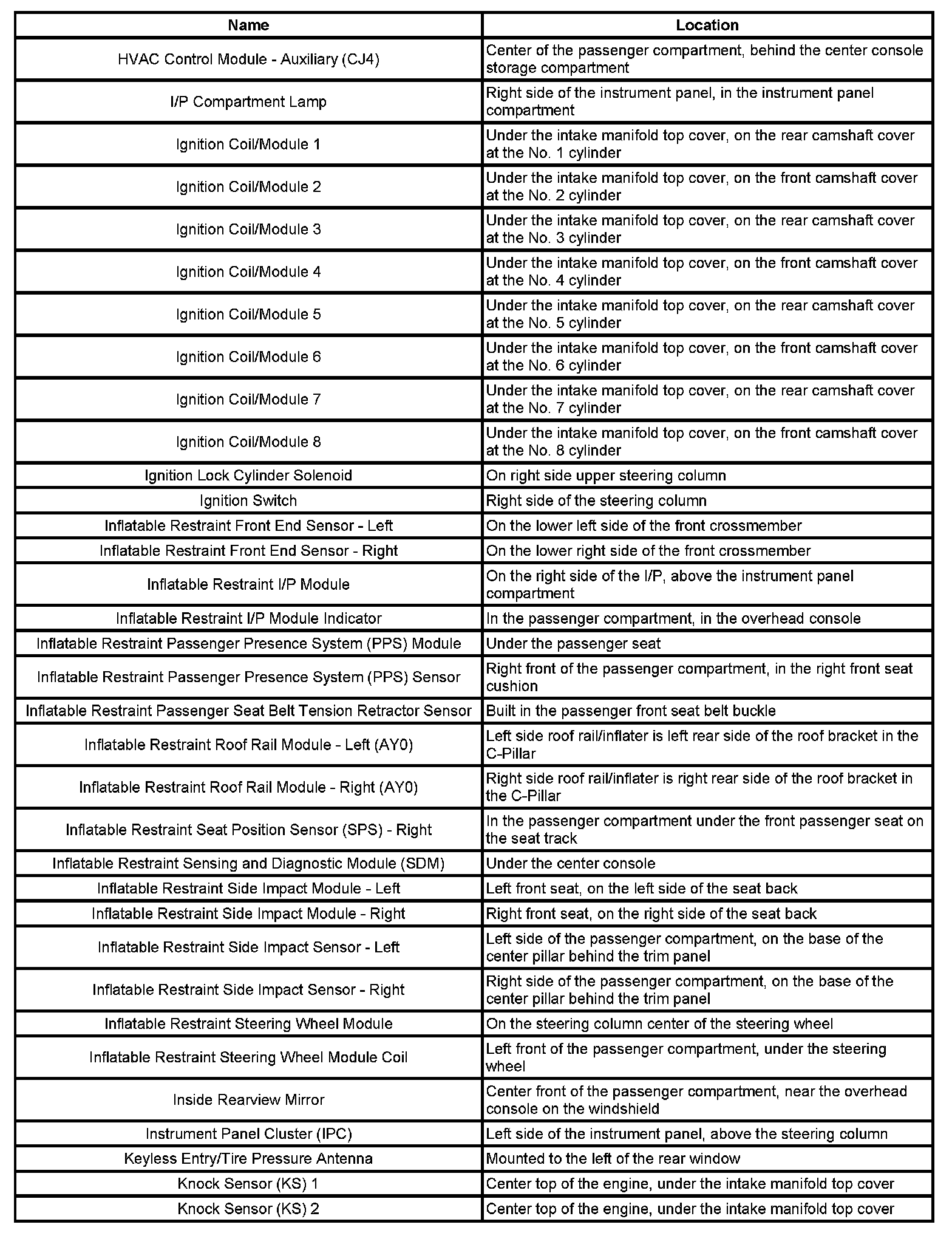

HV - Kn:

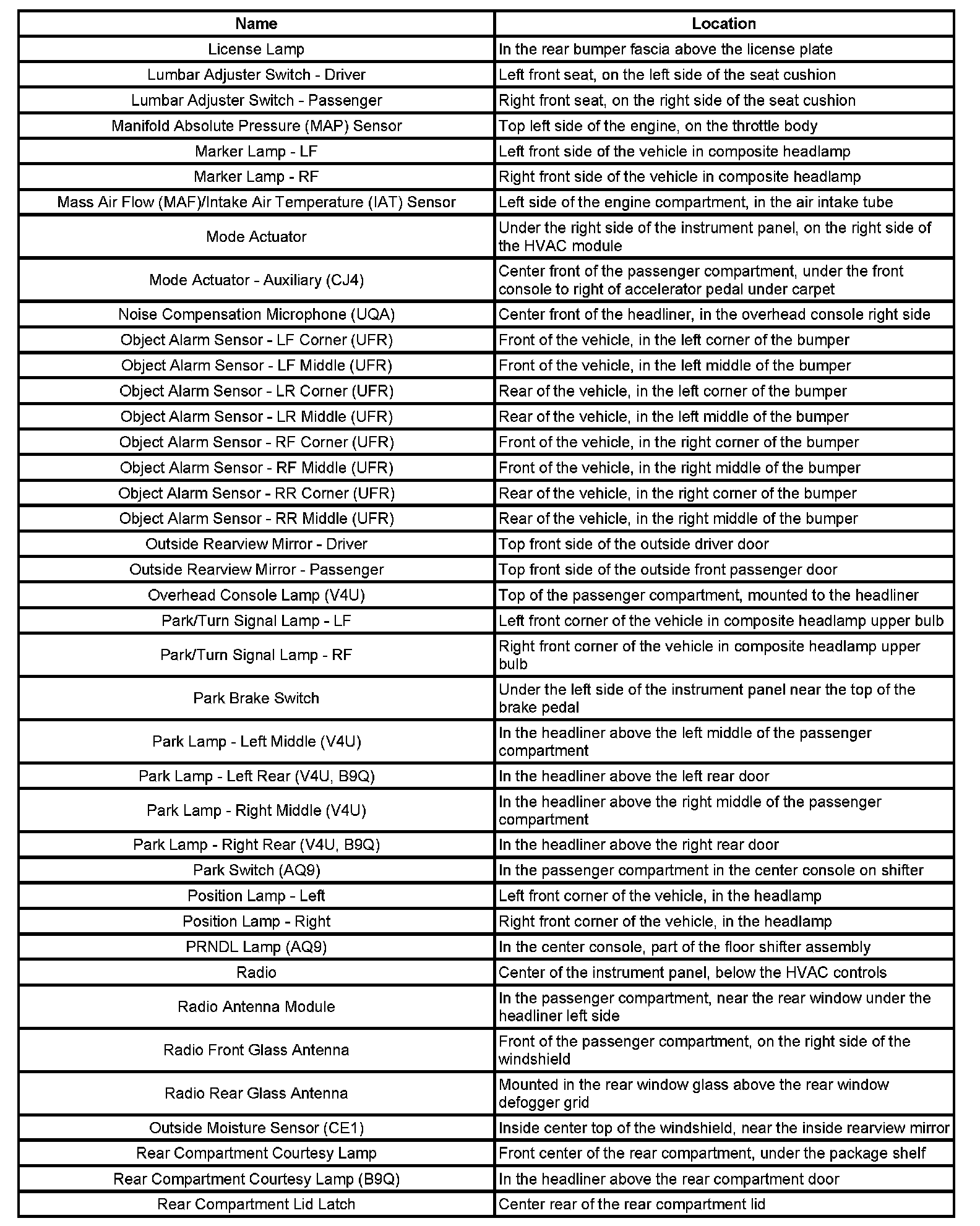

Li - Re:

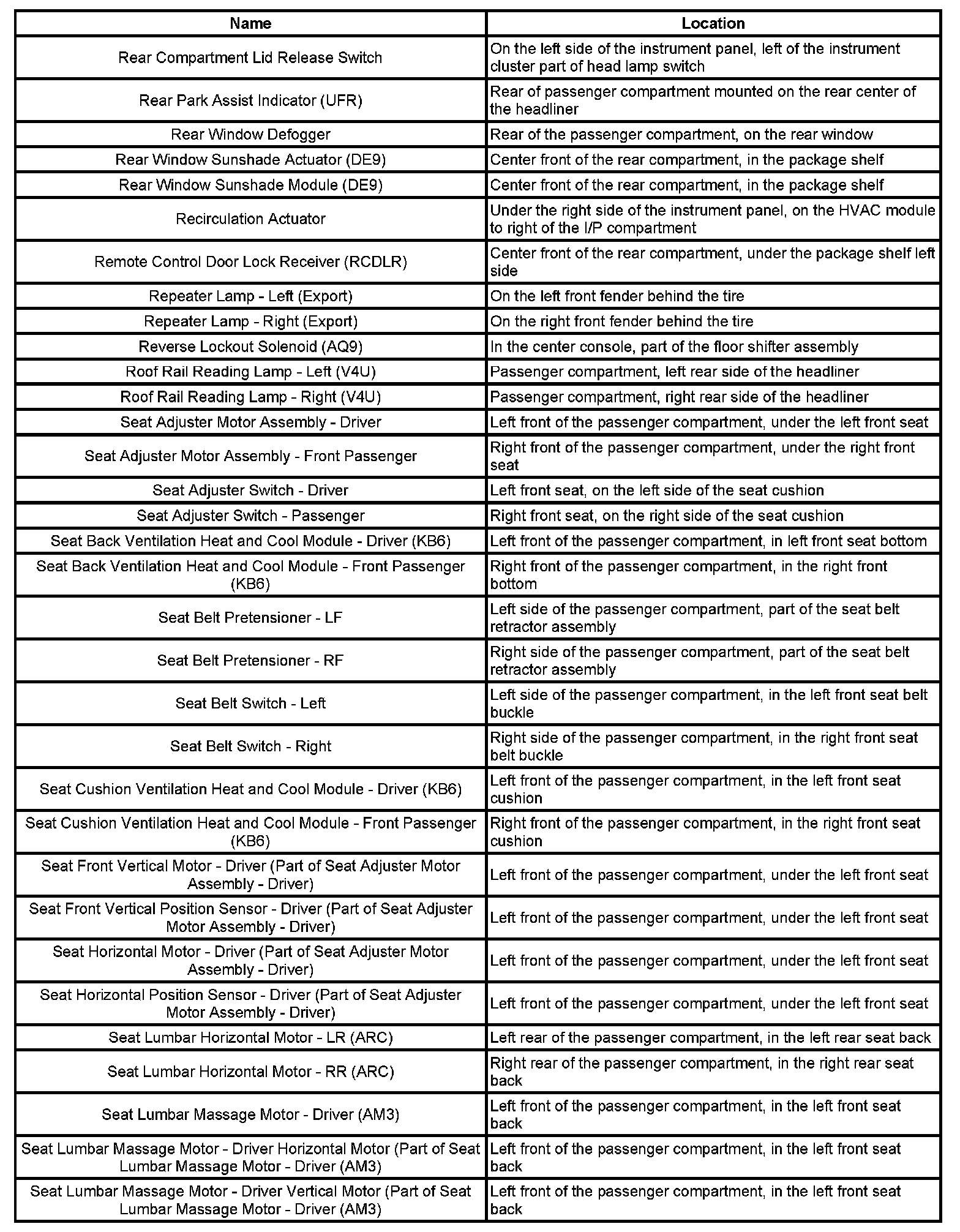

Re - Se:

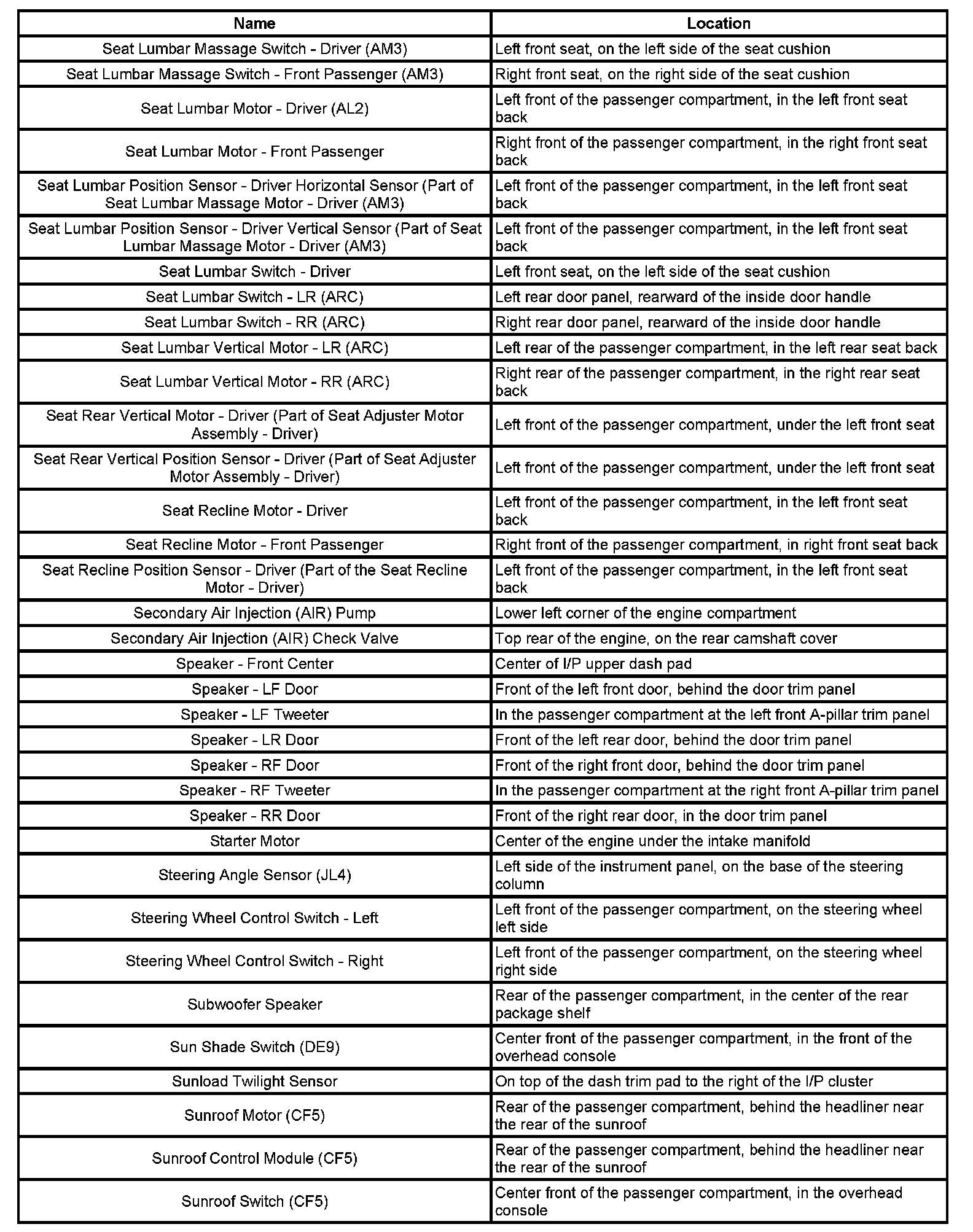

Se - Su:

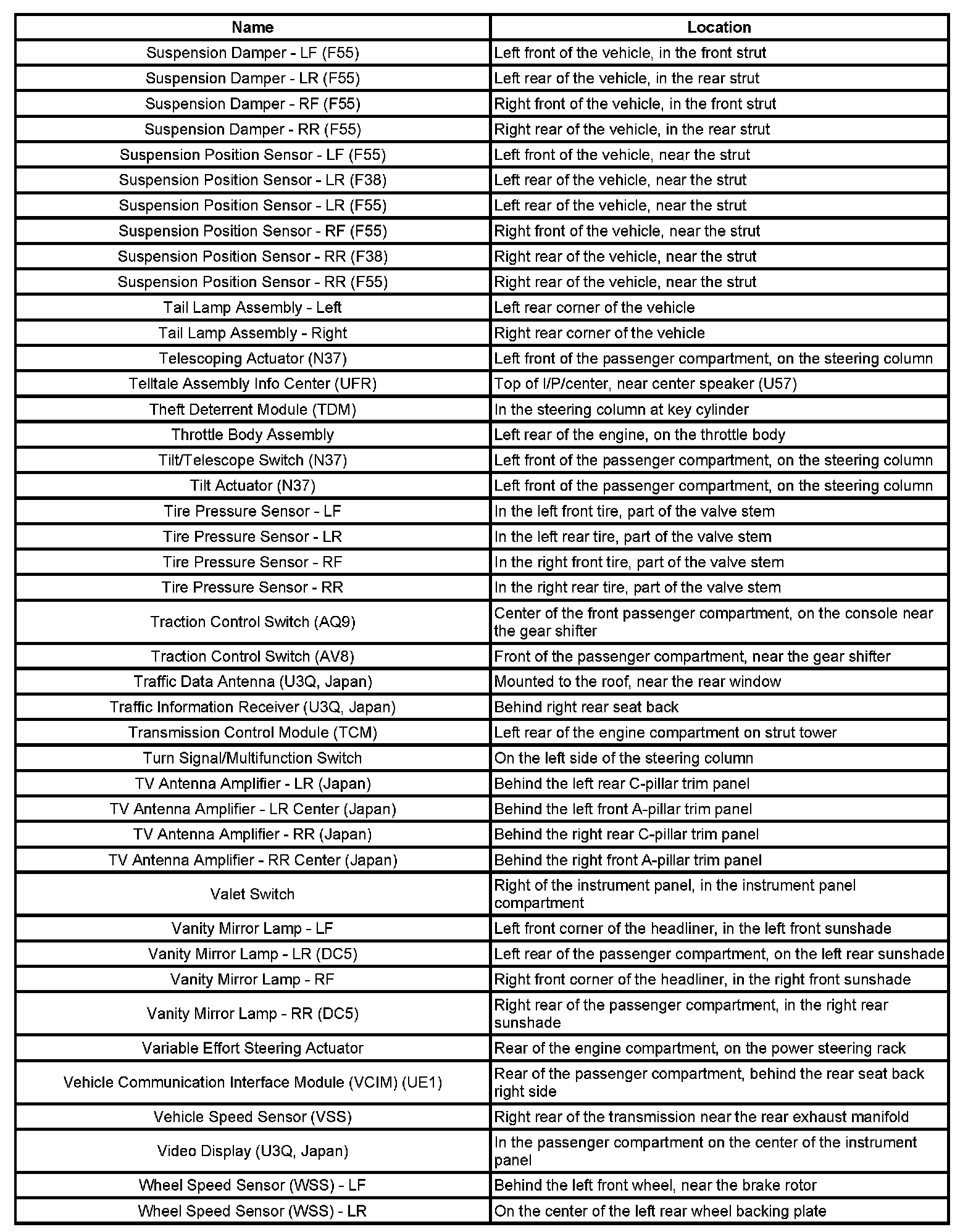

Su - Wh:

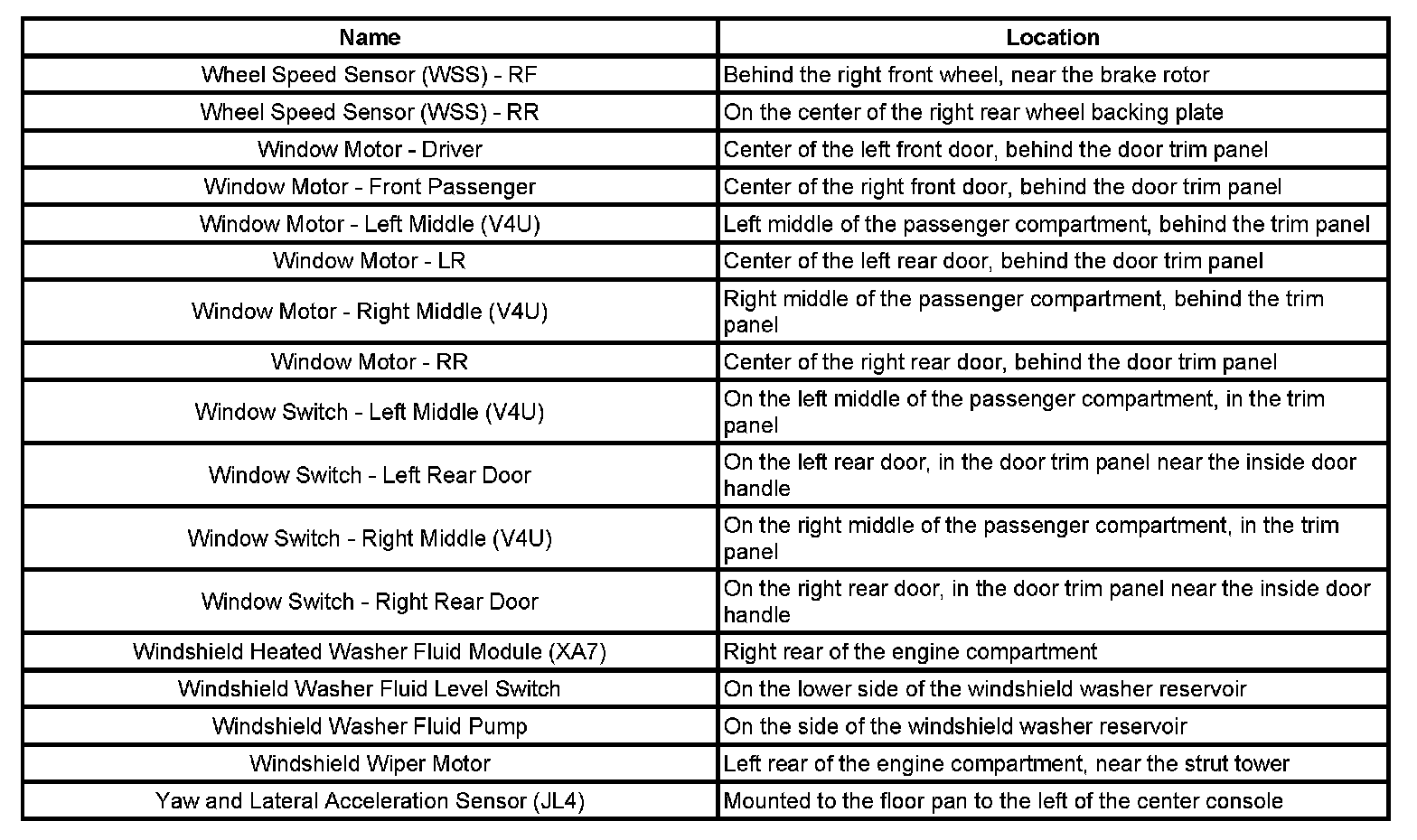

Wh - Ya:
