System Diagram
Lighting Systems Connector End Views

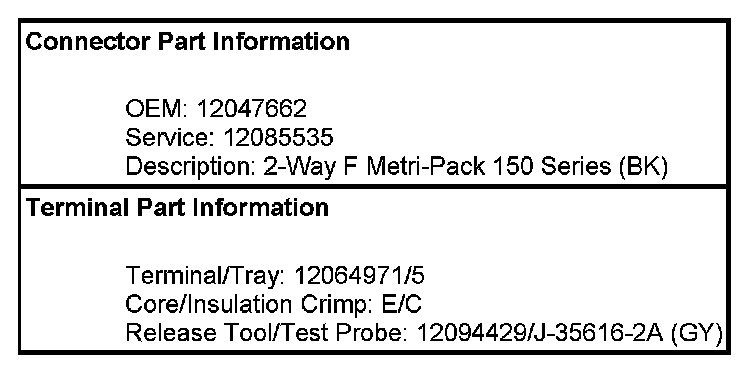

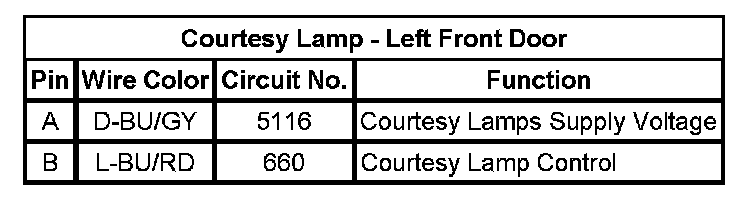

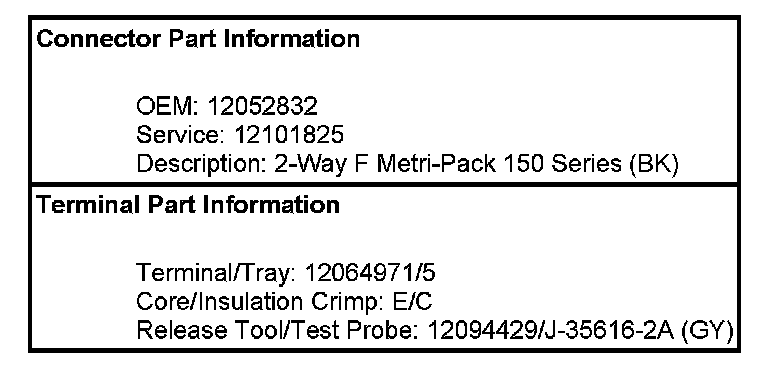

Courtesy Lamp - Left Front Door

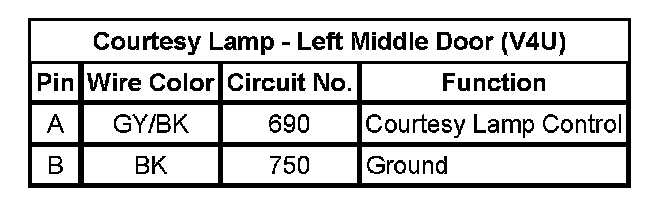

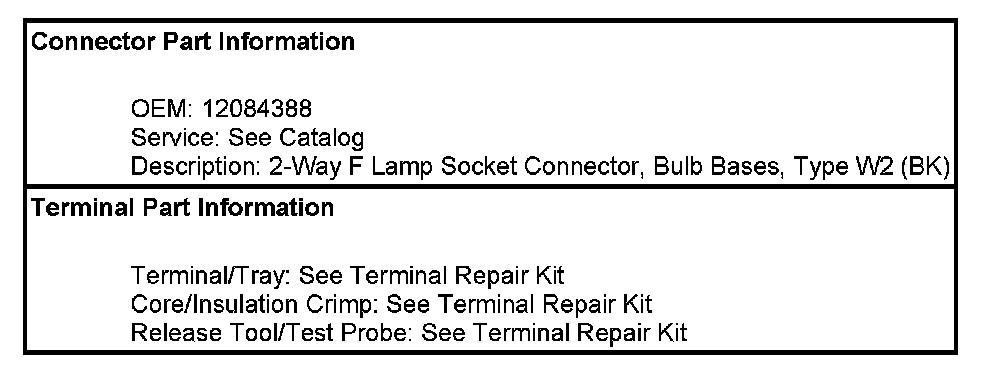

Courtesy Lamp - Left Middle Door (V4U)

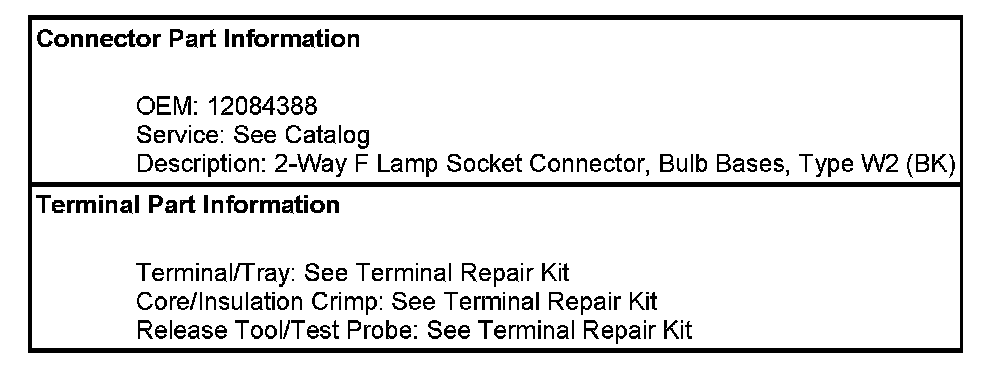

Courtesy Lamp - Left Rear (V4U)

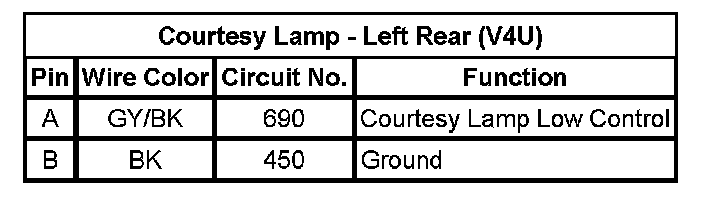

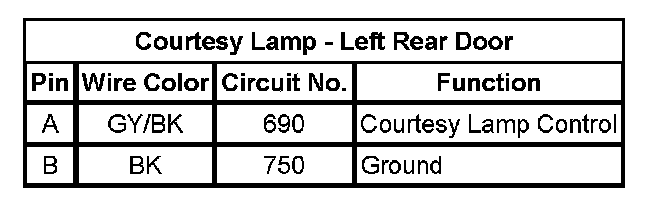

Courtesy Lamp - Left Rear Door

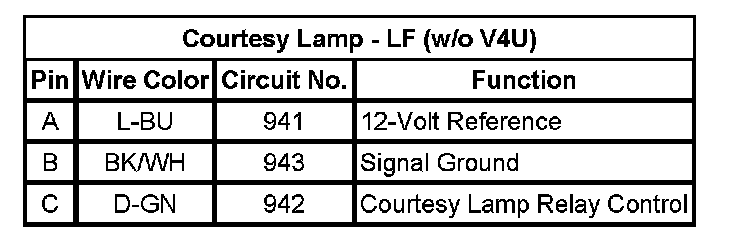

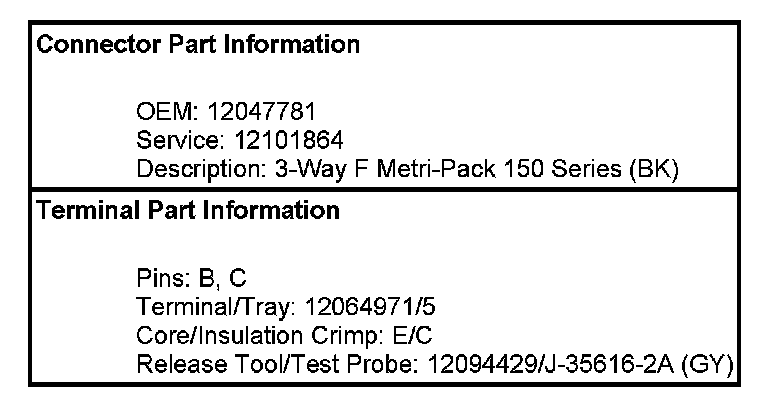

Courtesy Lamp - LF (w/o V4U)

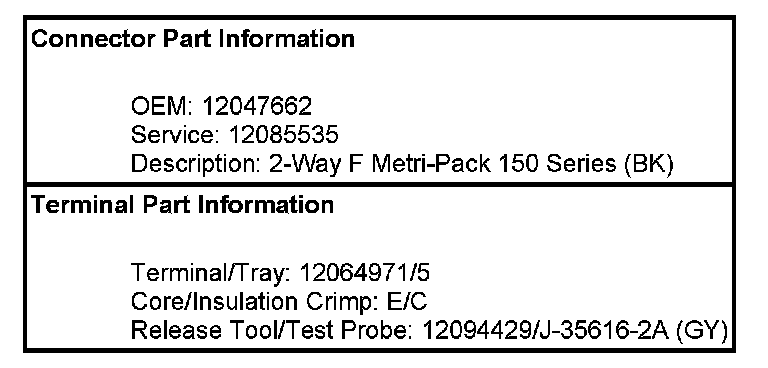

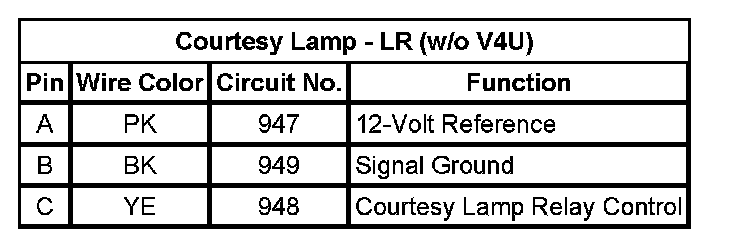

Courtesy Lamp - LR (w/o V4U)

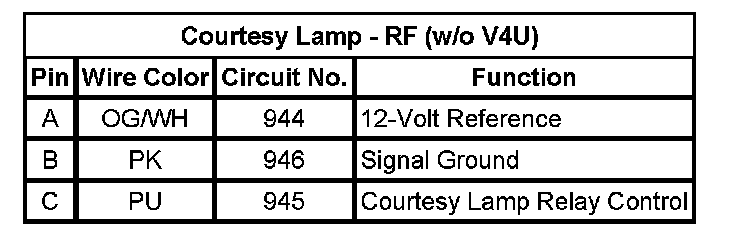

Courtesy Lamp - RF (w/o V4U)

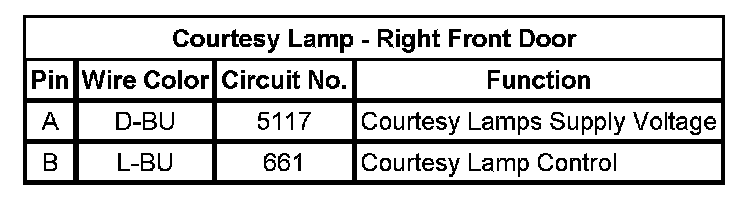

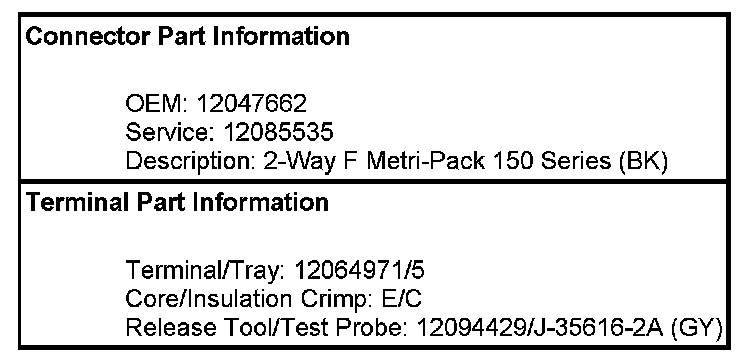

Courtesy Lamp - Right Front Door

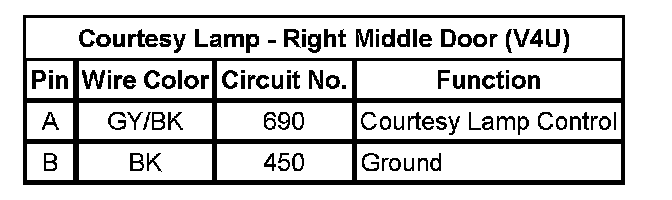

Courtesy Lamp - Right Middle Door (V4U)

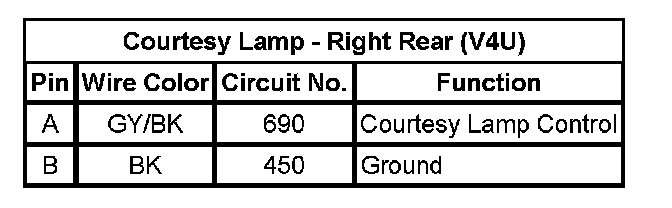

Courtesy Lamp - Right Rear (V4U)

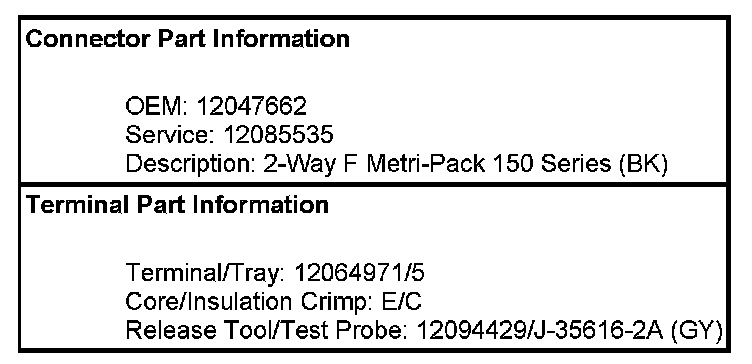

Courtesy Lamp - Right Rear Door

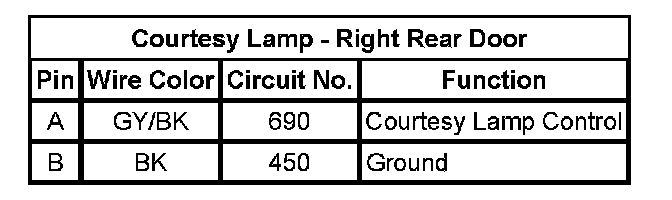

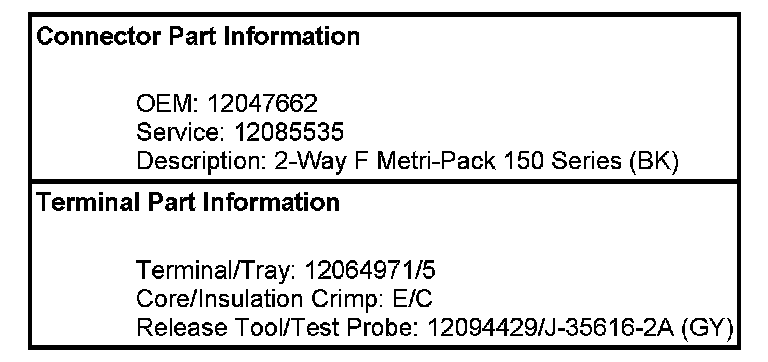

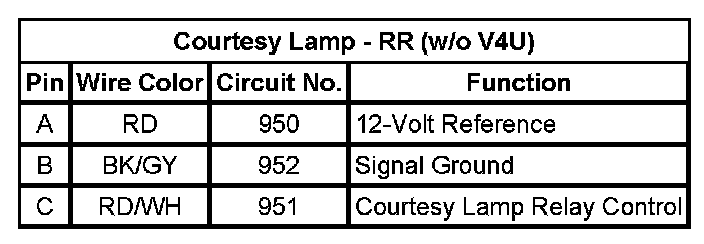

Courtesy Lamp - RR (w/o V4U)

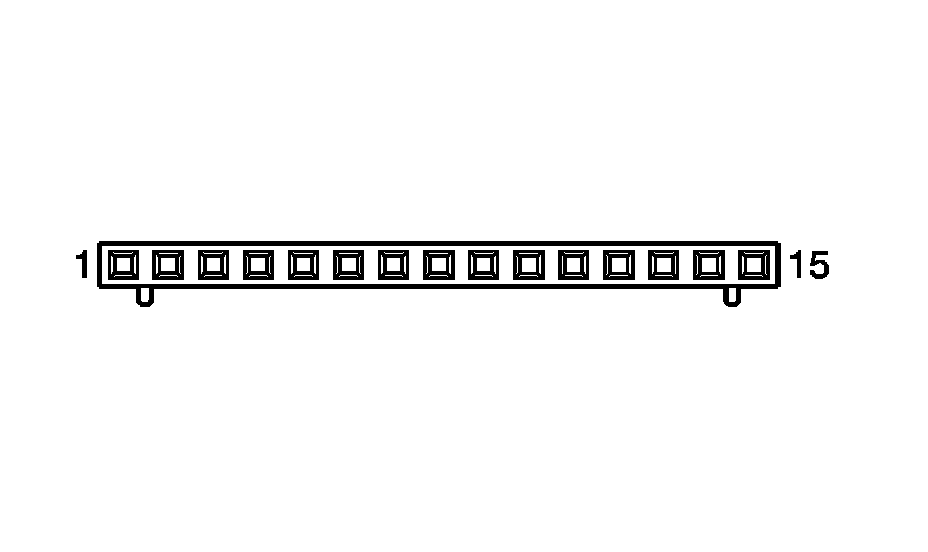

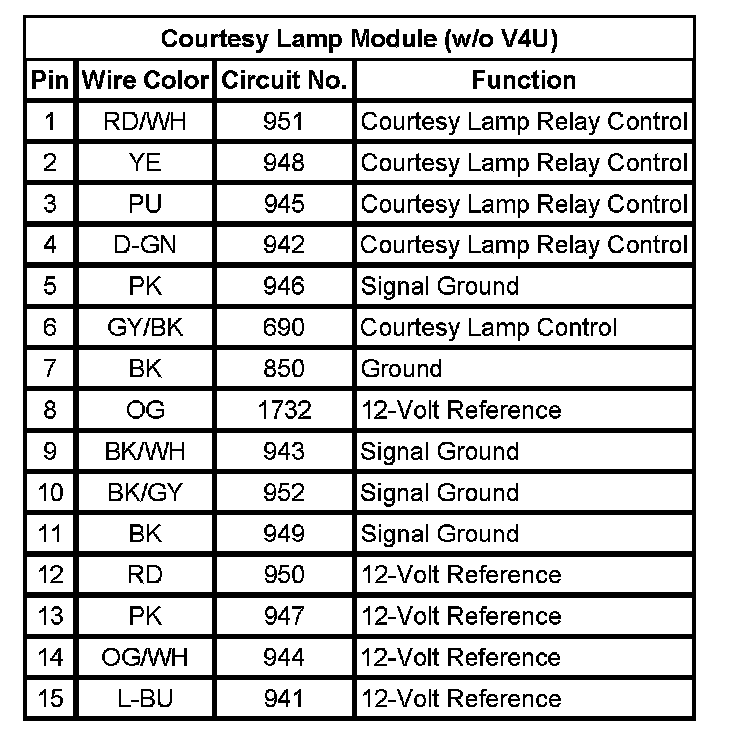

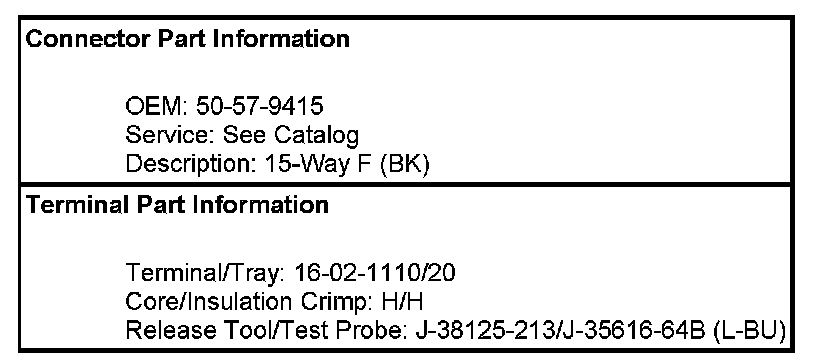

Courtesy Lamp Module (w/o V4U)

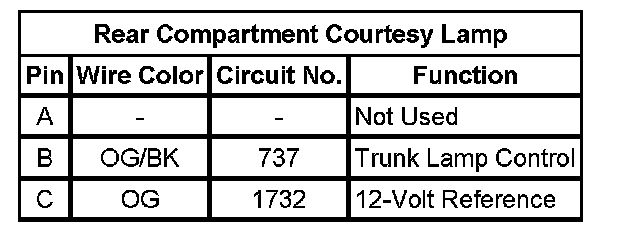

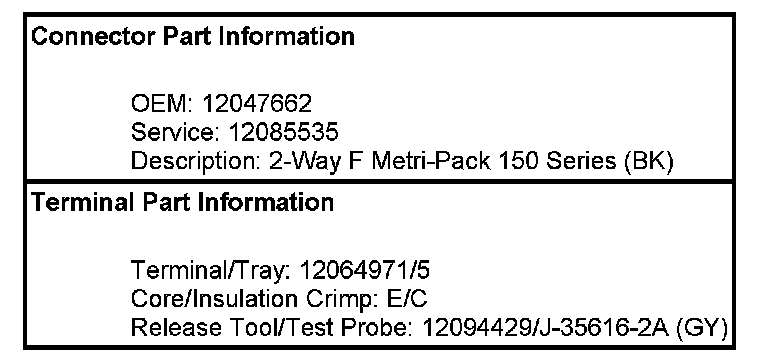

Rear Compartment Courtesy Lamp

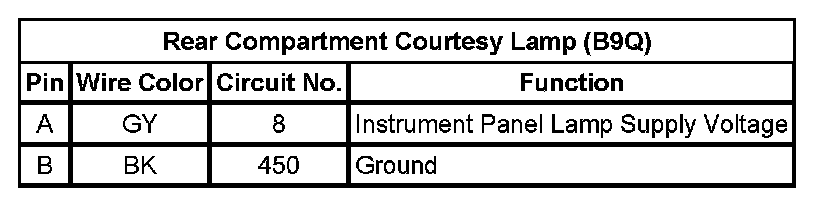

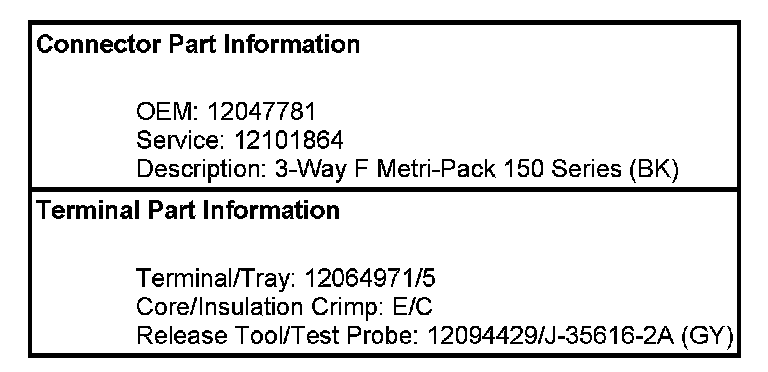

Rear Compartment Courtesy Lamp (B9Q)
A/T Shift Lock Control Solenoid:
