Door Switch

Vehicle Access Connector End Views

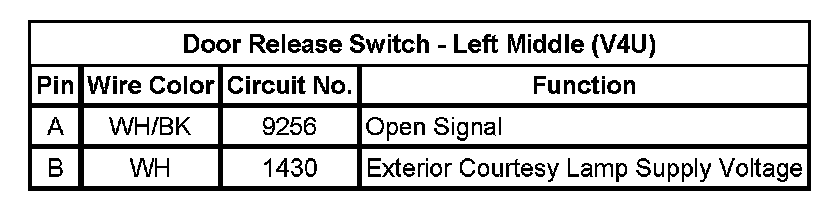

Door Release Switch - Left Middle (V4U)

A/T Shift Lock Control Solenoid:

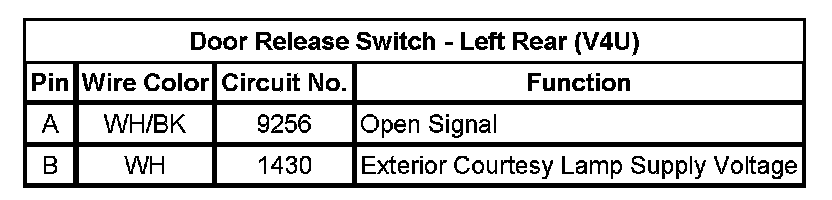

Door Release Switch - Left Rear (V4U)

A/T Shift Lock Control Solenoid:

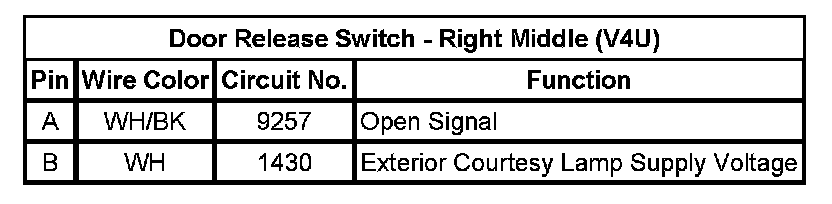

Door Release Switch - Right Middle (V4U)

A/T Shift Lock Control Solenoid:

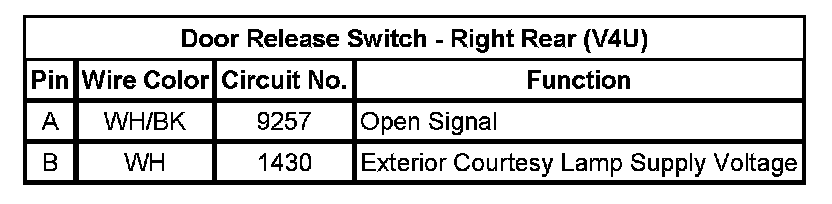

Door Release Switch - Right Rear (V4U)
