Fuel Injector



Engine Controls Connector End Views

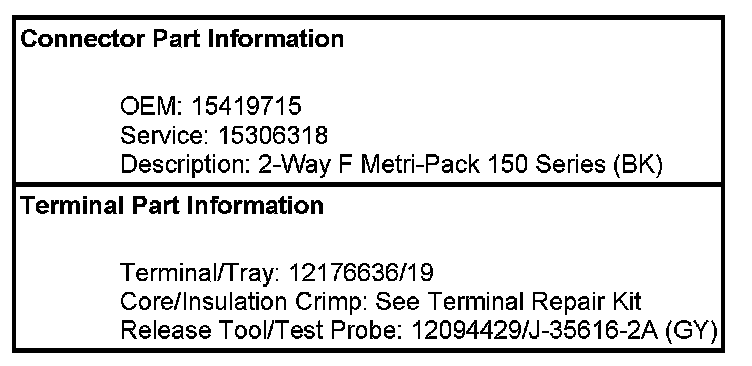

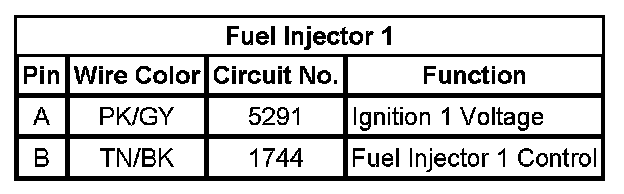

Fuel Injector 1

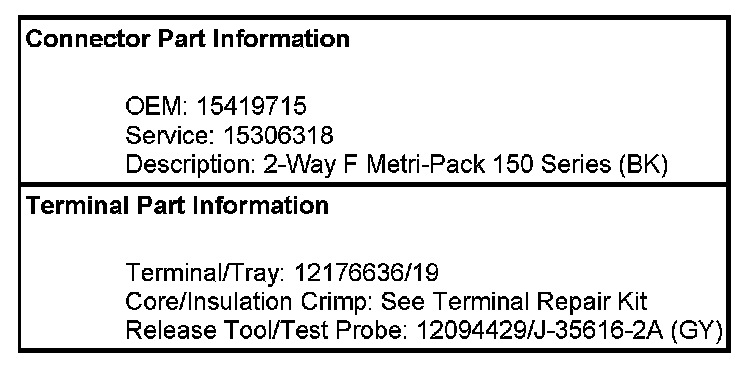

Fuel Injector 2

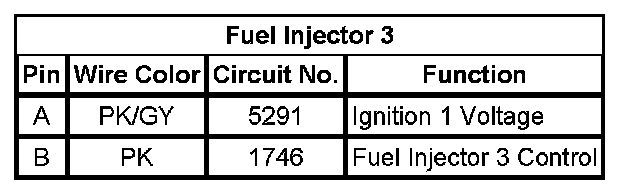

Fuel Injector 3

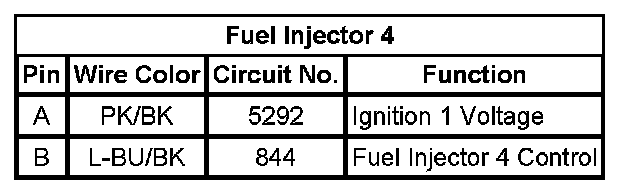

Fuel Injector 4

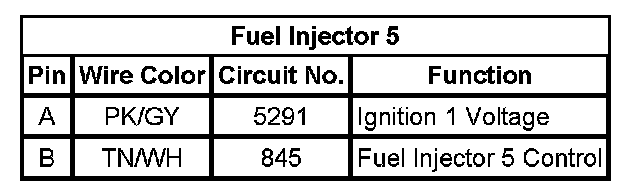

Fuel Injector 5

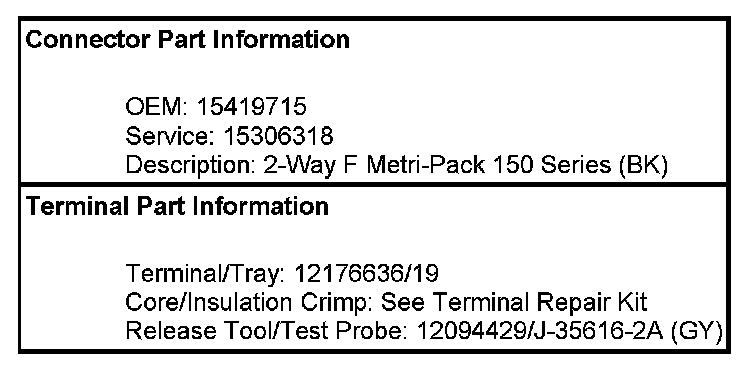

Fuel Injector 6

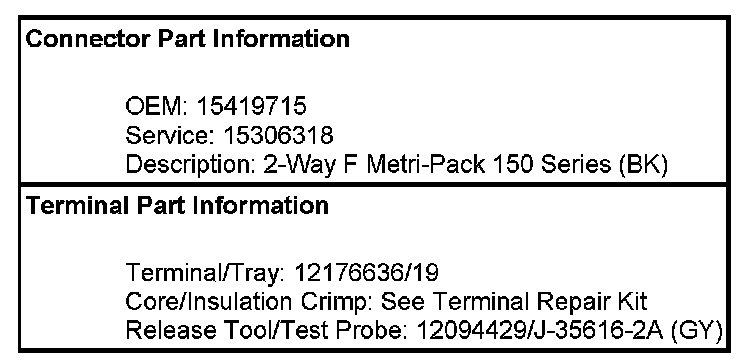

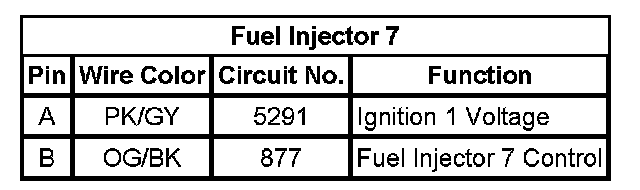

Fuel Injector 7

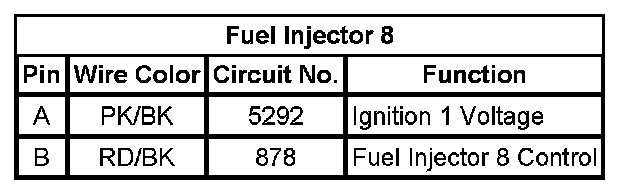

Fuel Injector 8
