Rear Fuse Block
Electrical Center Identification Views

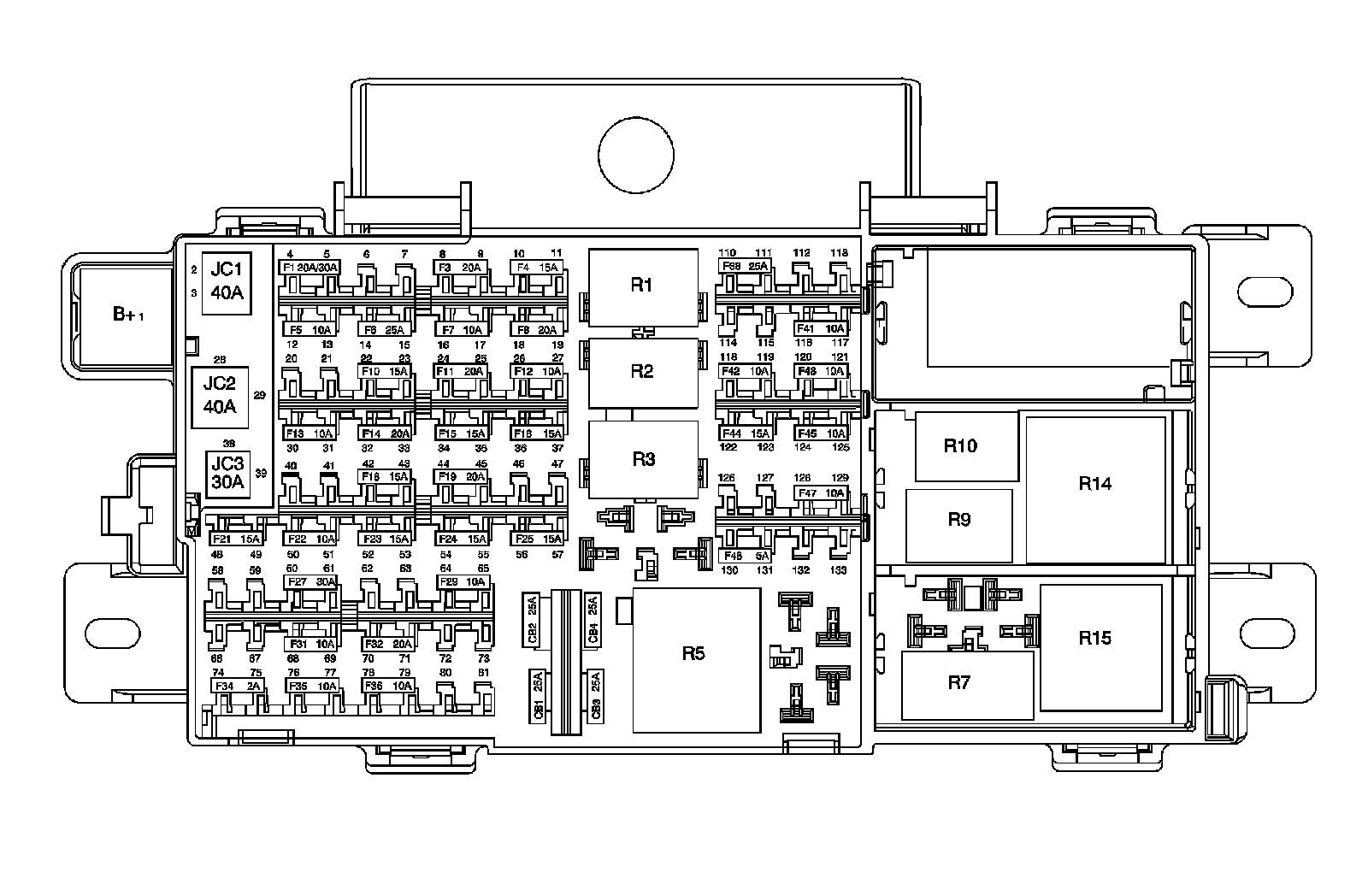

Fuse Block - Rear Top View
Fuse Block - Rear Bottom View

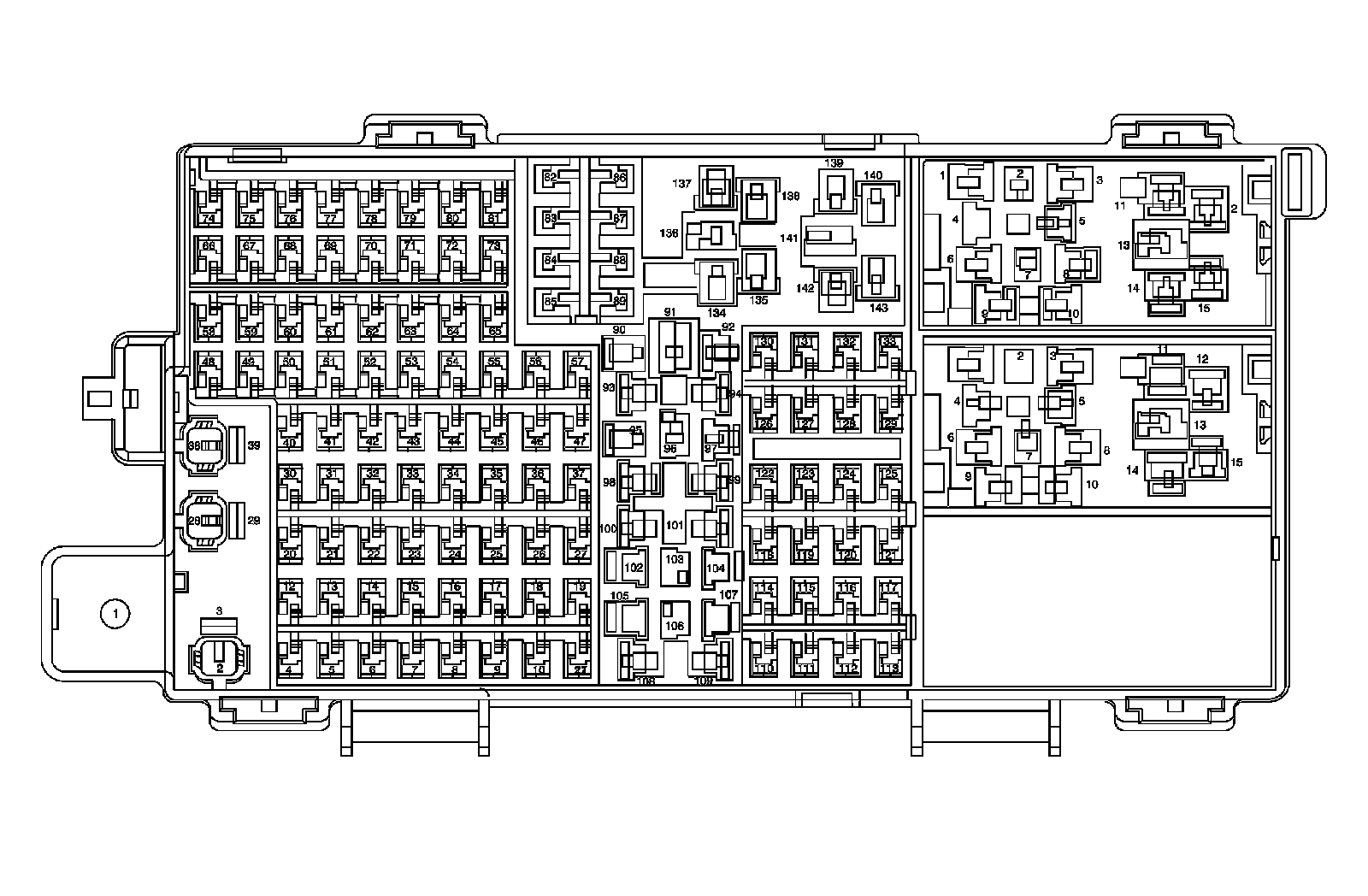

Fuse Block - Rear (Wire Entry)

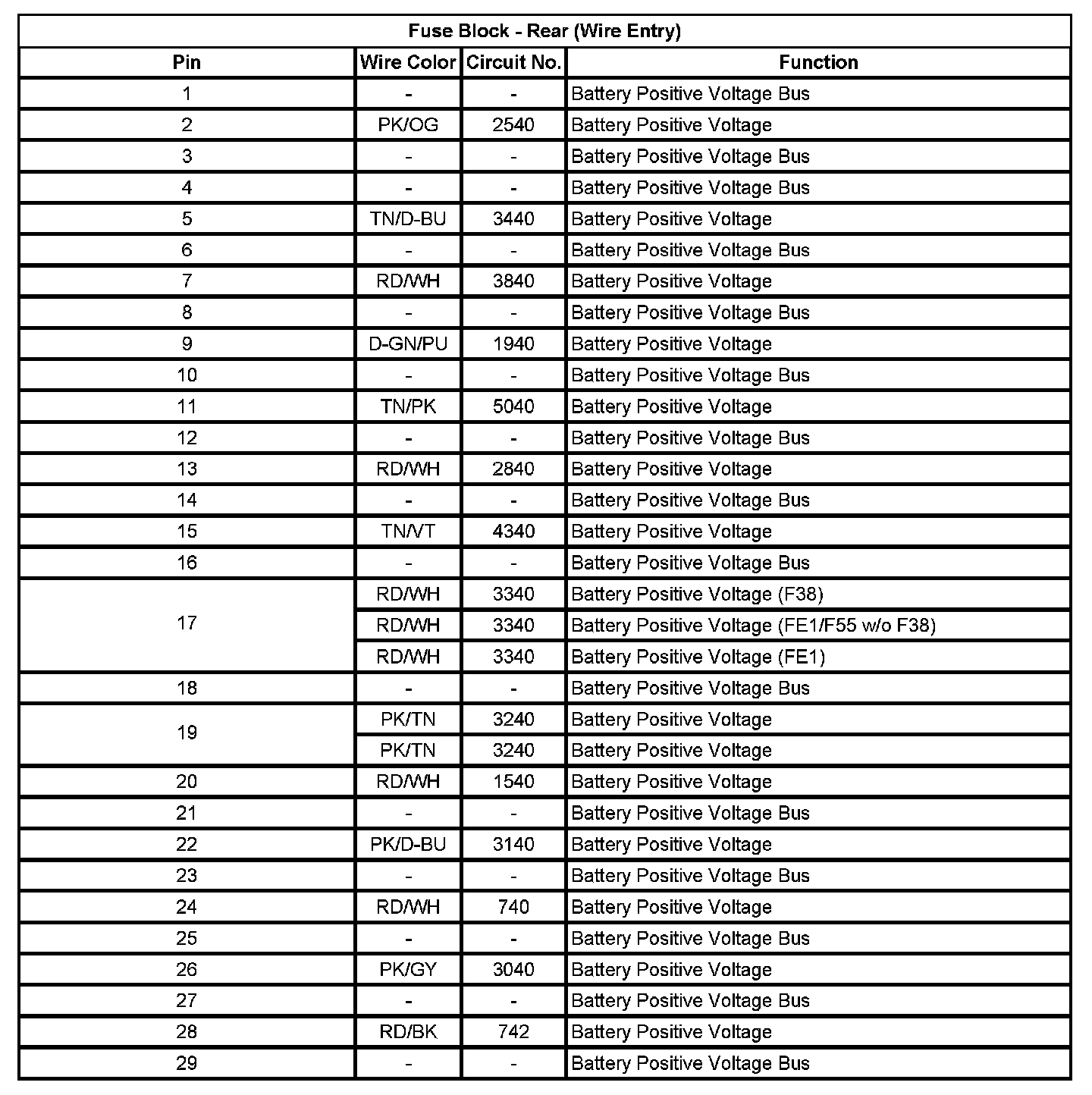

Fuse Block - Rear (Wire Entry) (Pin 1 To 29):

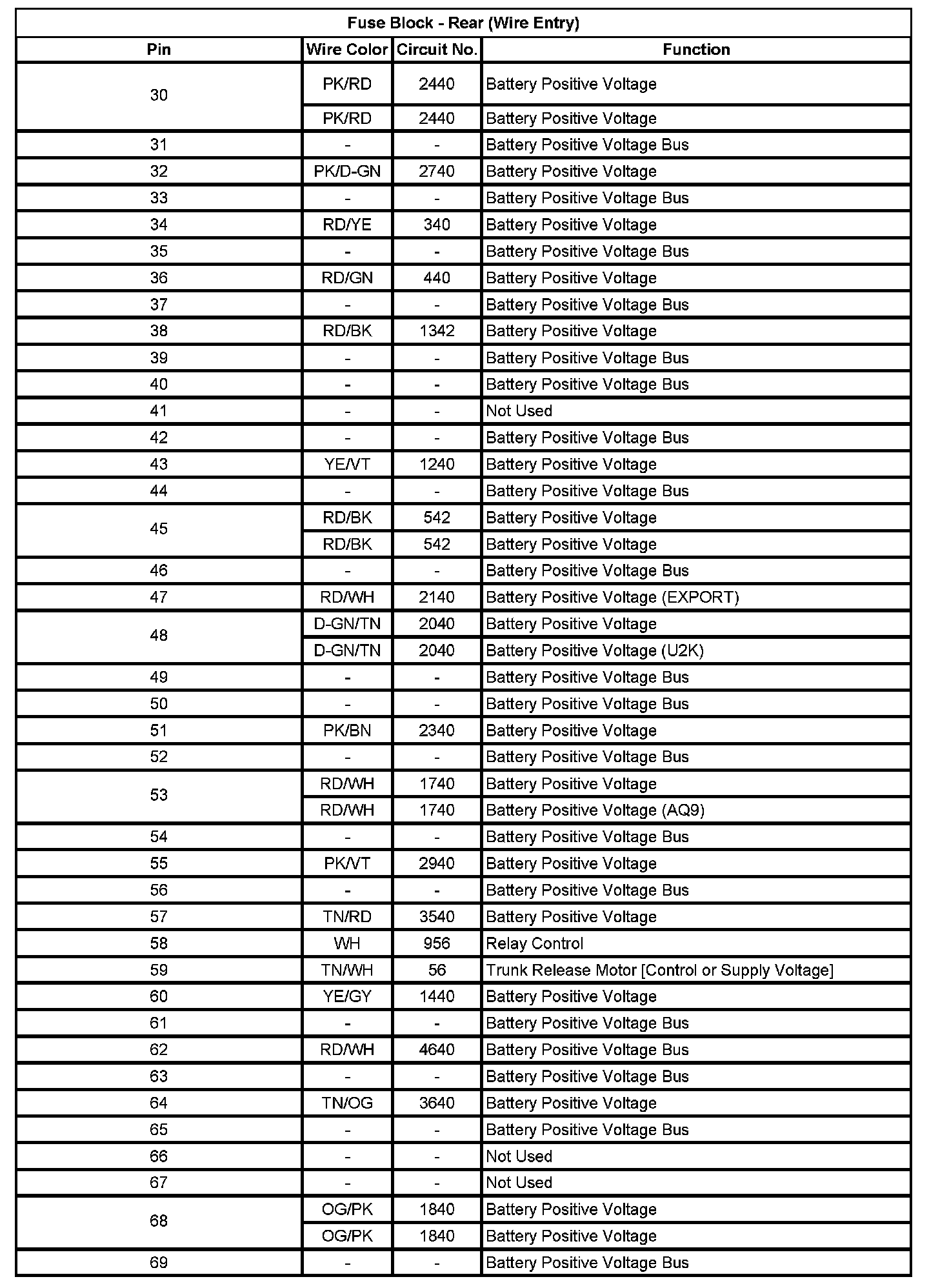

Fuse Block - Rear (Wire Entry) (Pin 30 To 69):

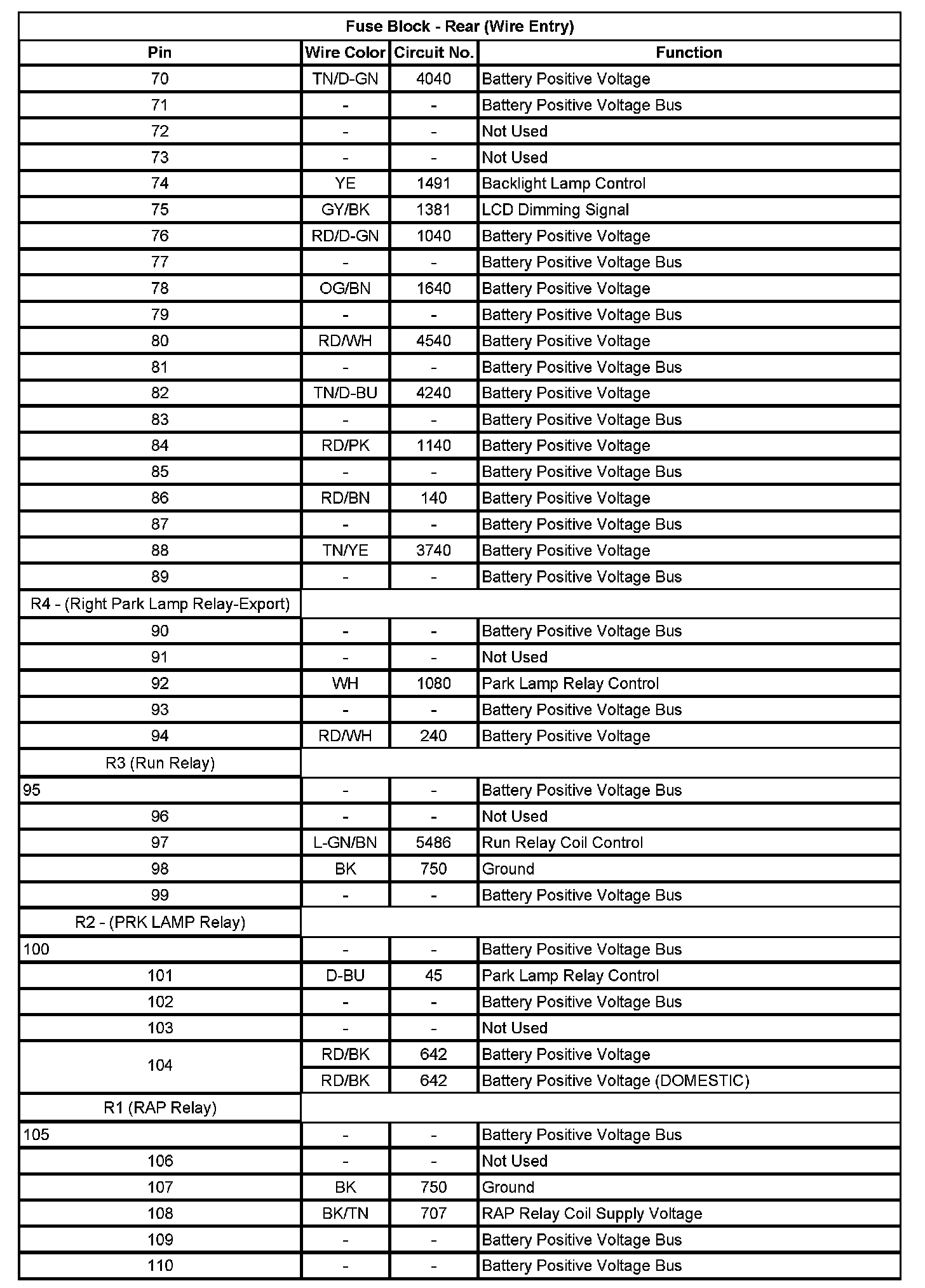

Fuse Block - Rear (Wire Entry) (Pin 70 To 110):

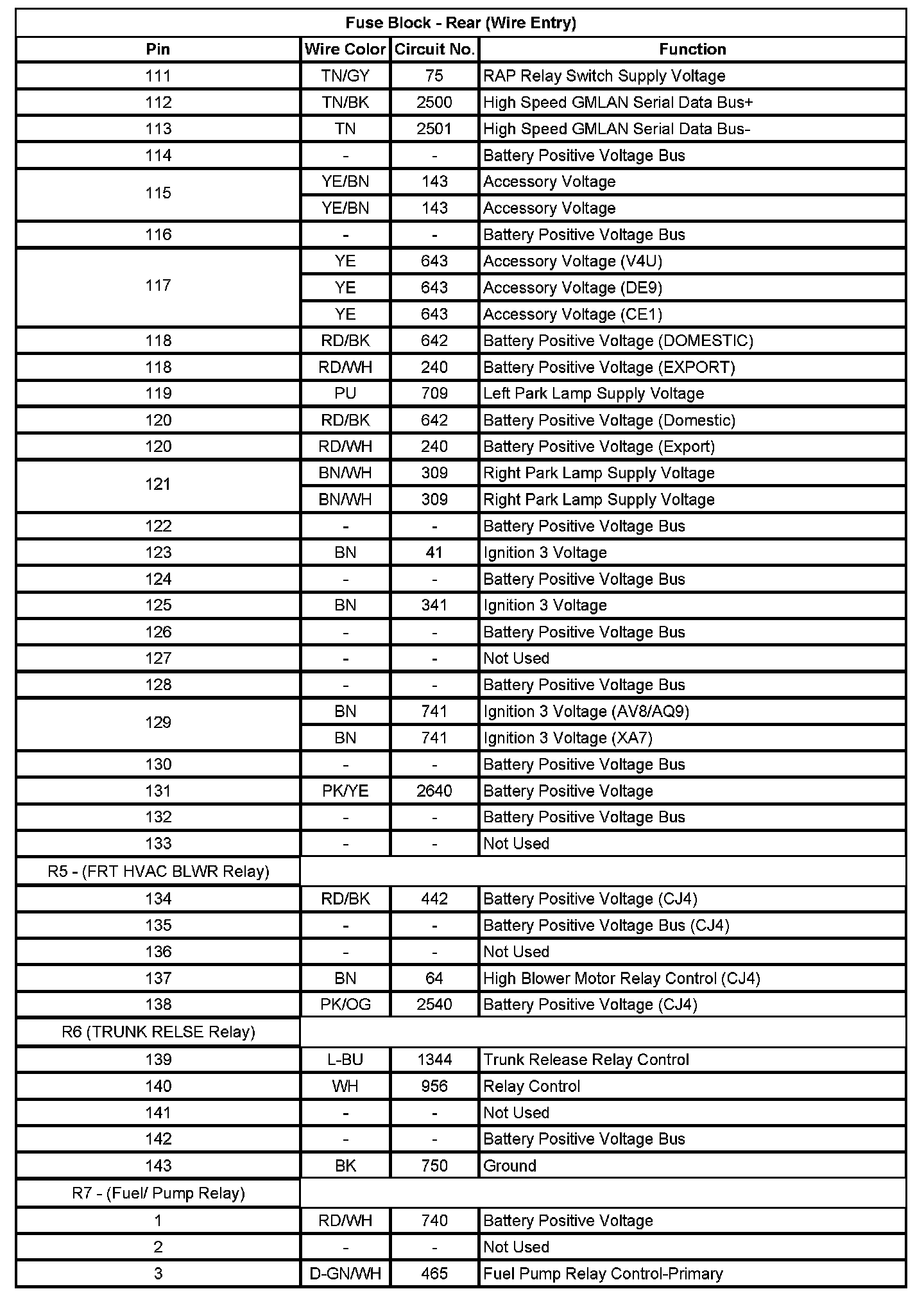

Fuse Block - Rear (Wire Entry) (Pin 111 To 3):
Fuse Block - Rear (Wire Entry) (Pin 4 To 12):

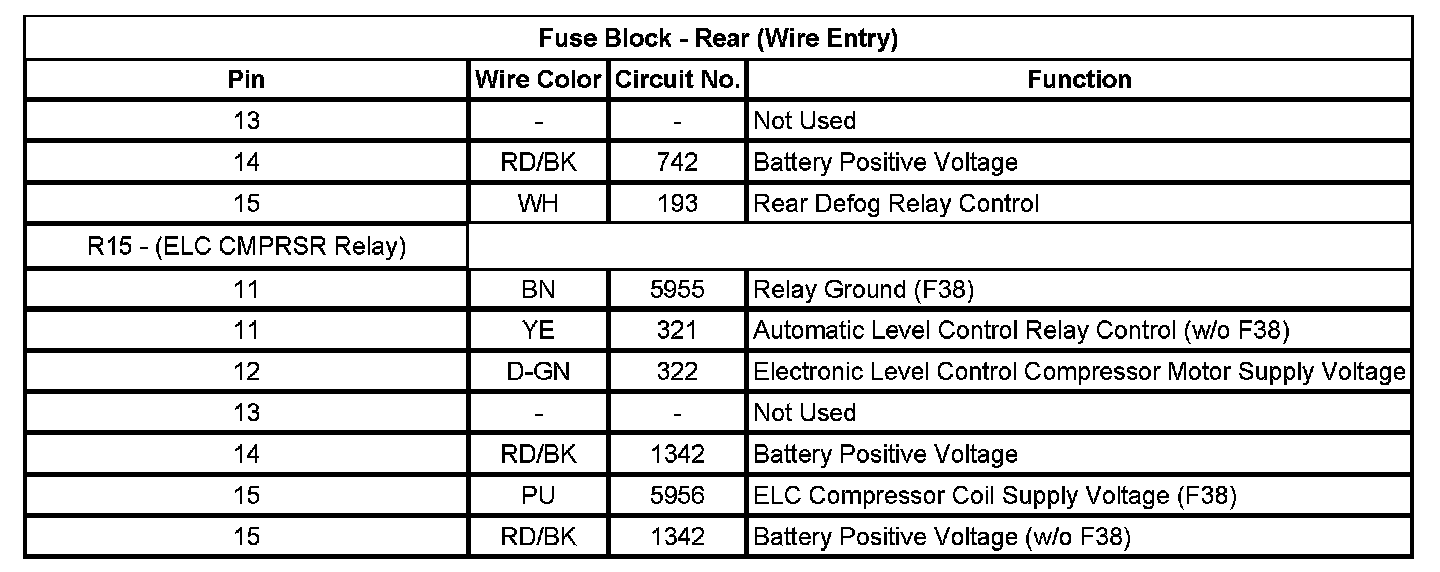

Fuse Block - Rear (Wire Entry) (Pin 13 To 15):
