Impact Sensor



SIR Connector End Views

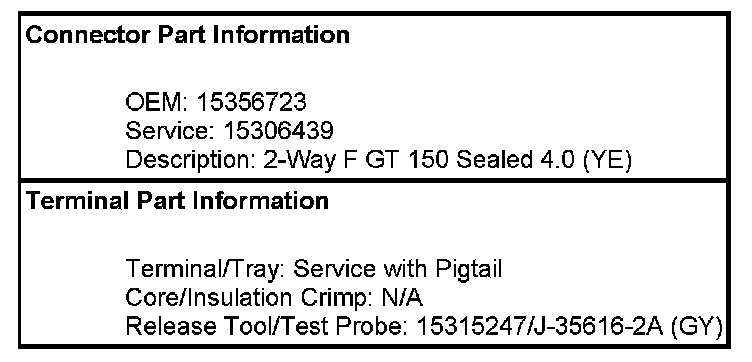

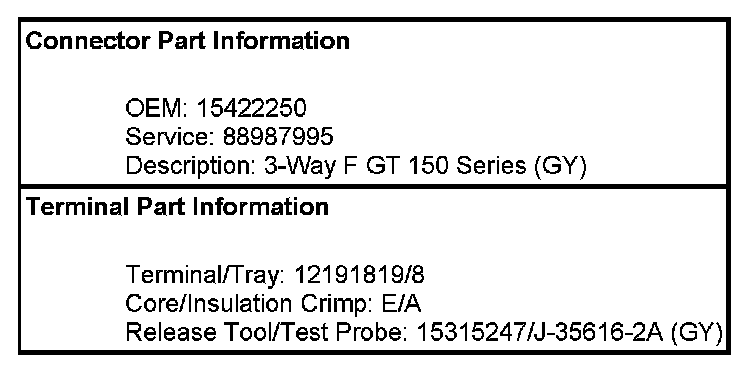

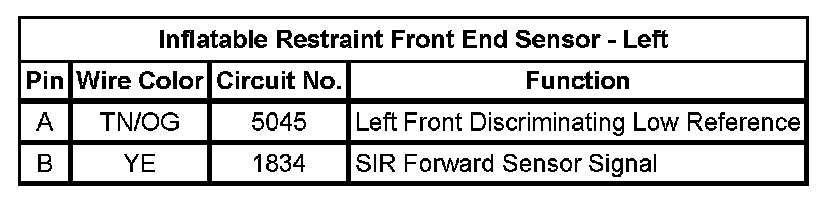

Inflatable Restraint Front End Sensor - Left

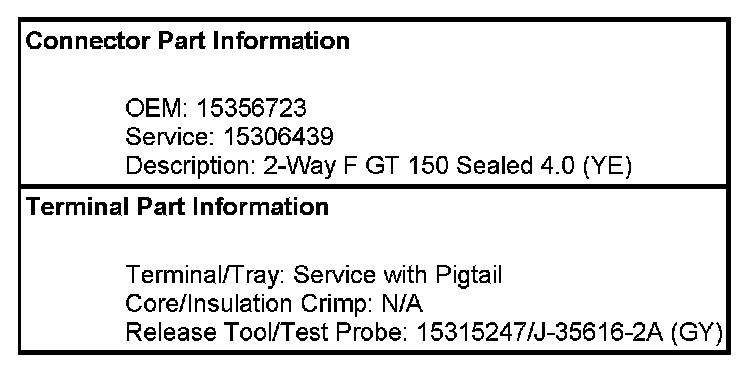

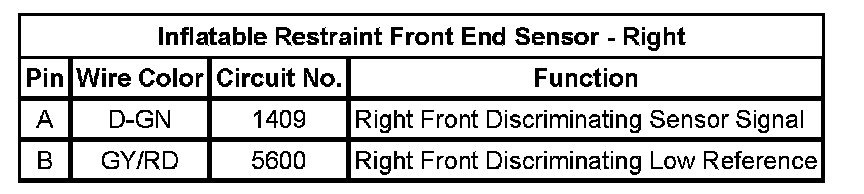

Inflatable Restraint Front End Sensor - Right

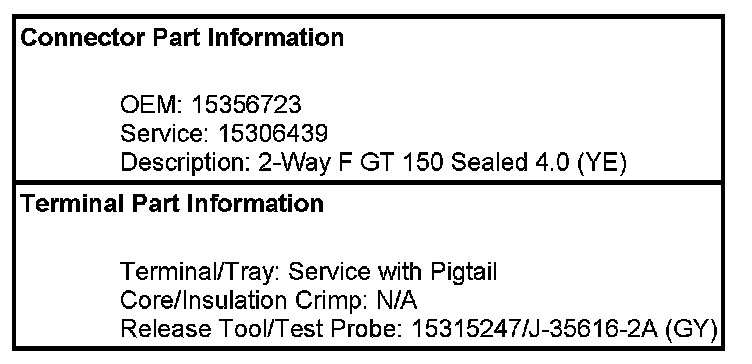

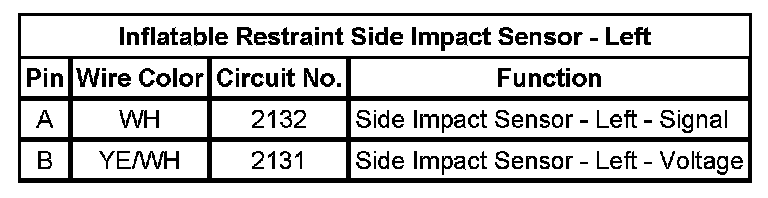

Inflatable Restraint Side Impact Sensor - Left

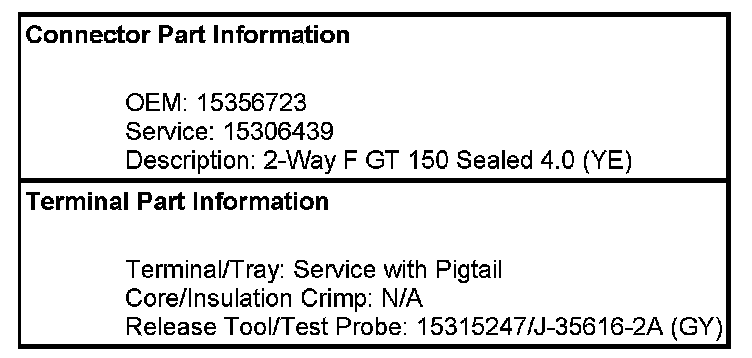

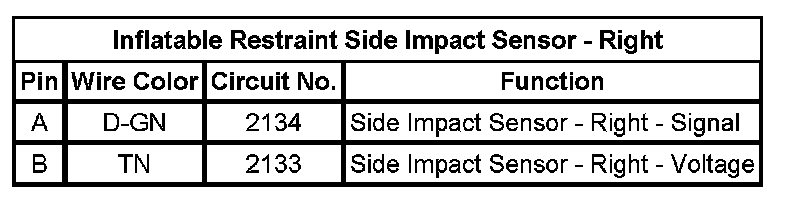

Inflatable Restraint Side Impact Sensor - Right

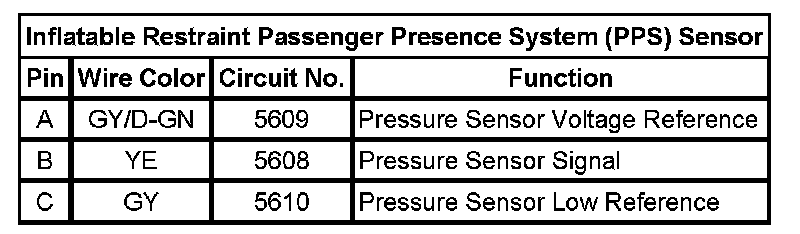

Inflatable Restraint Passenger Presence System (PPS) Sensor
