Map Light



Lighting Systems Connector End Views

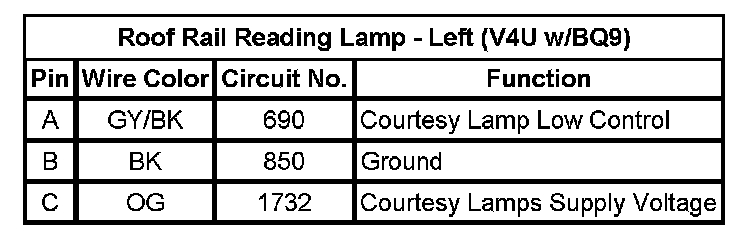

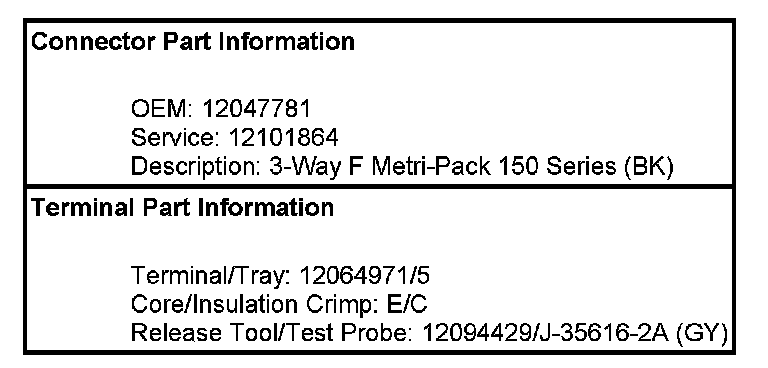

Roof Rail Reading Lamp - Left (V4U w/BQ9)

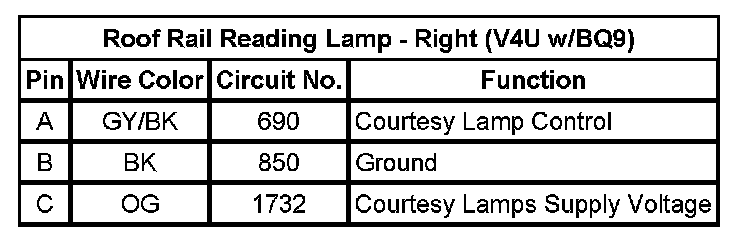

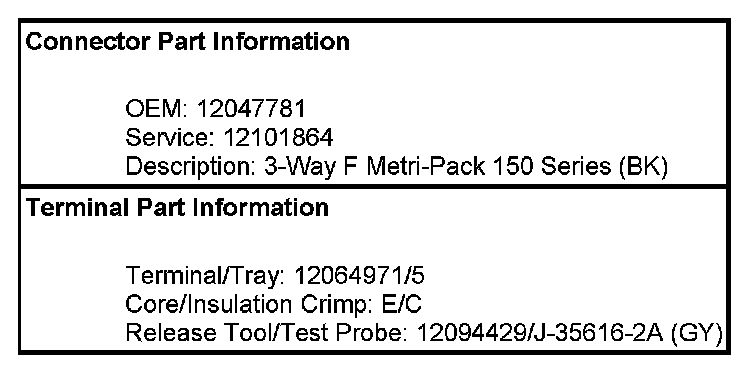

Roof Rail Reading Lamp - Right (V4U w/BQ9)
