Mirrors

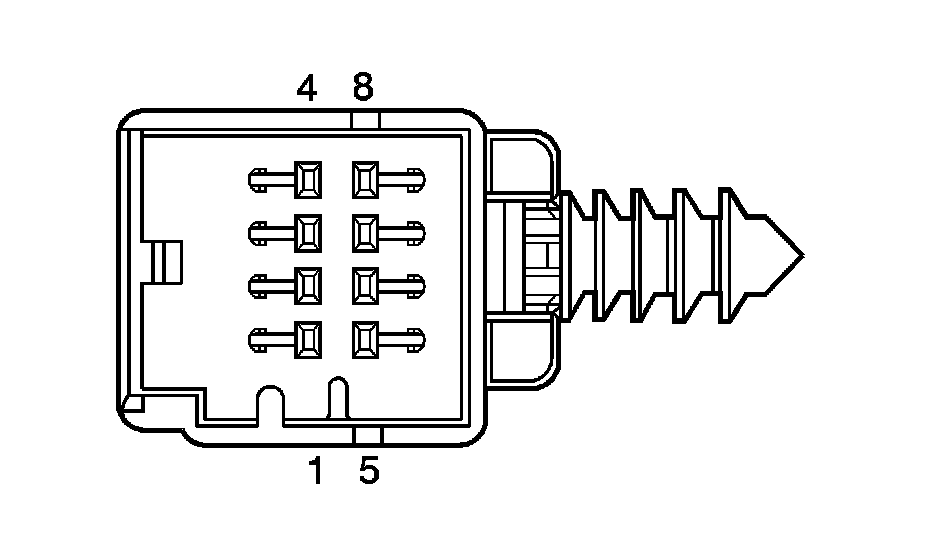

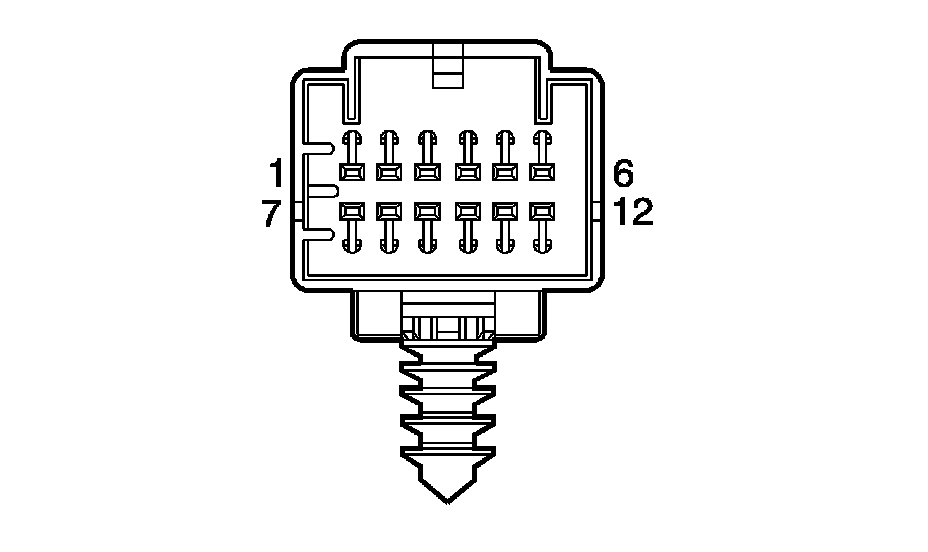

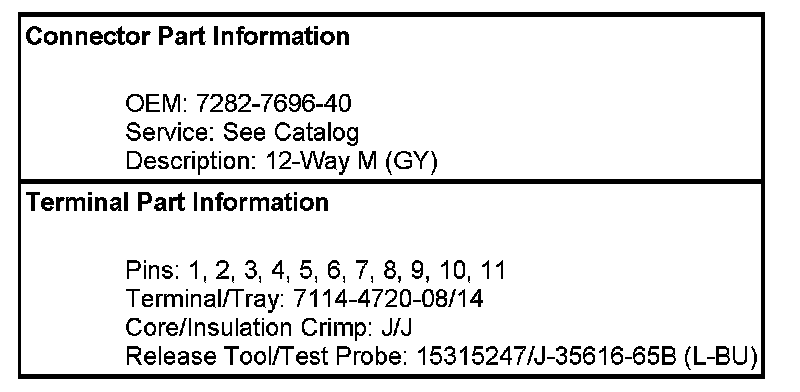

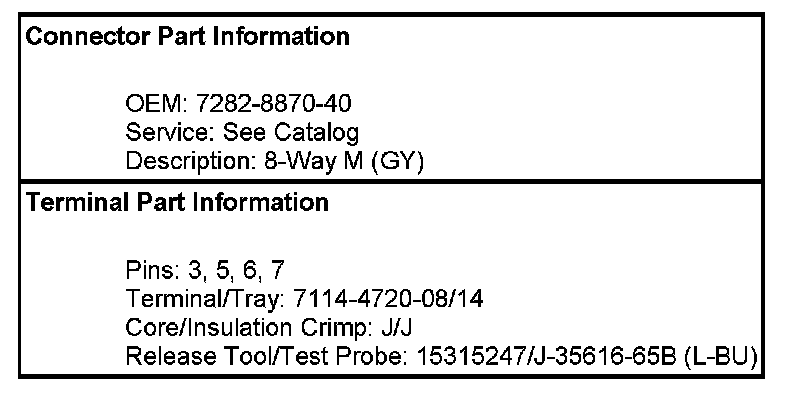

Mirror Connector End Views

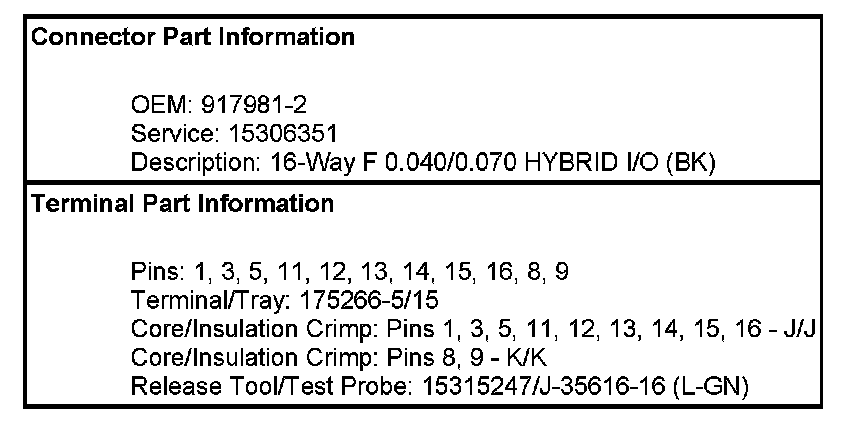

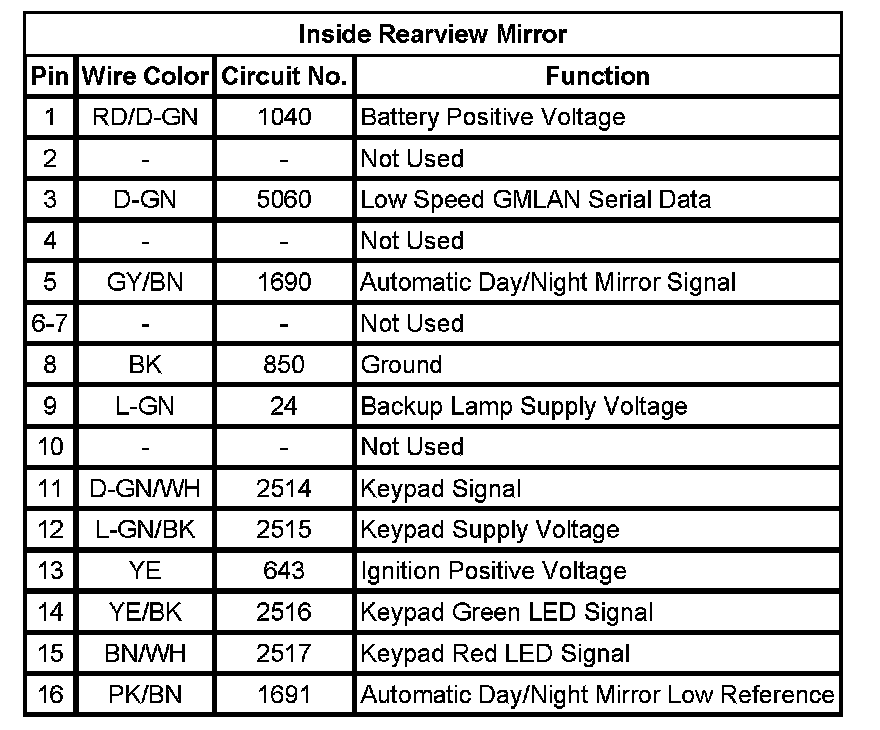

Inside Rearview Mirror

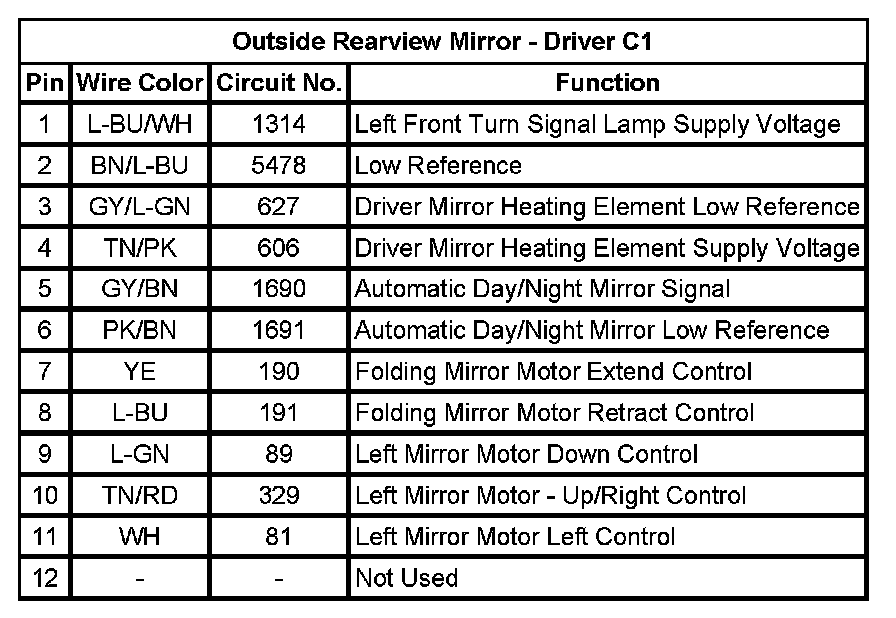

Outside Rearview Mirror - Driver C1

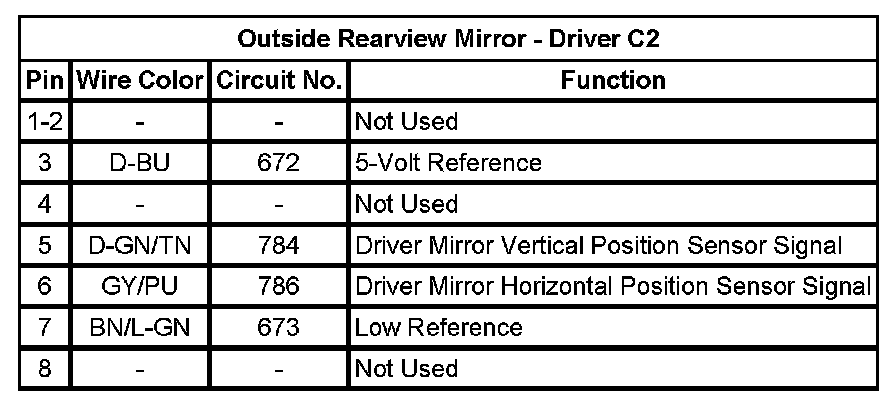

Outside Rearview Mirror - Driver C2

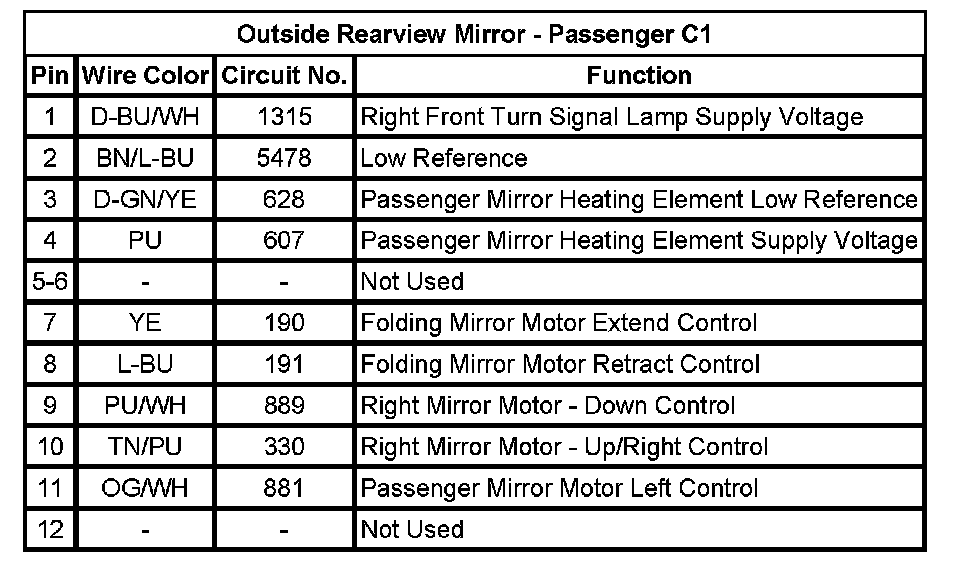

Outside Rearview Mirror - Passenger C1

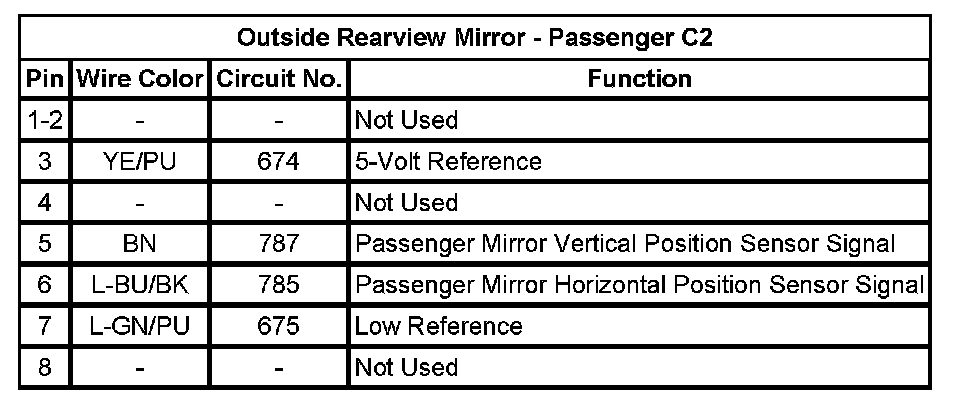

Outside Rearview Mirror - Passenger C2
