Power Seat Switch

Power Seat Connector End Views

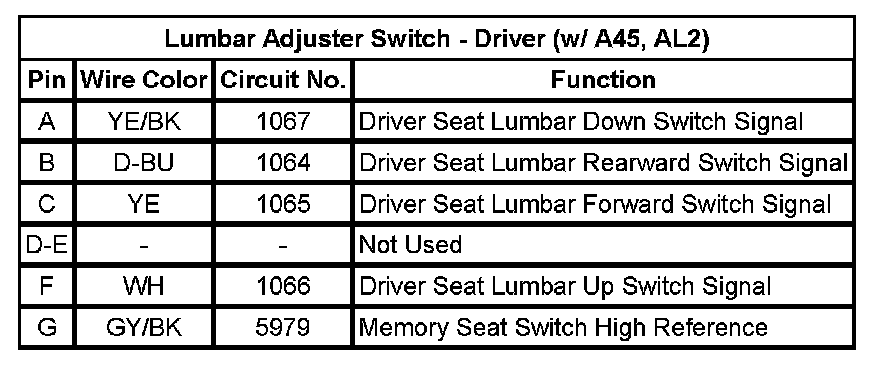

Lumbar Adjuster Switch - Driver (w/ A45, AL2)

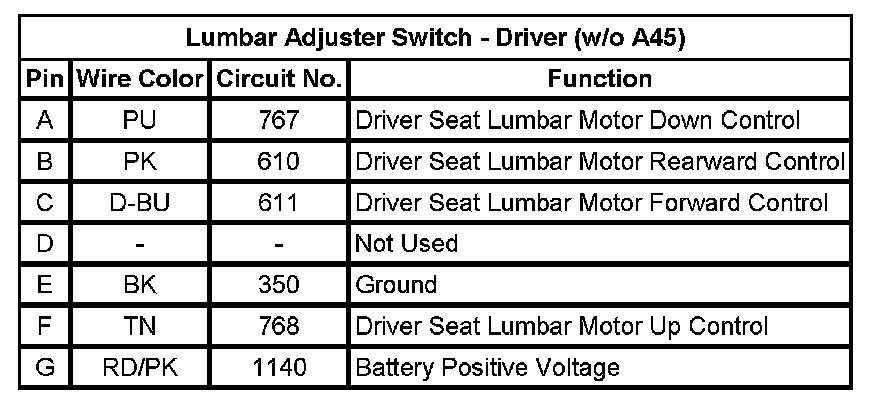

Lumbar Adjuster Switch - Driver (w/o A45)

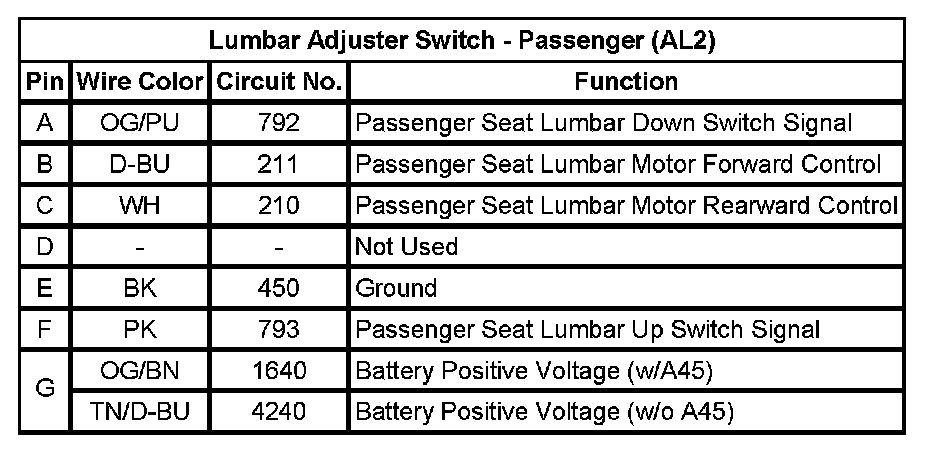

Lumbar Adjuster Switch - Passenger (AL2)

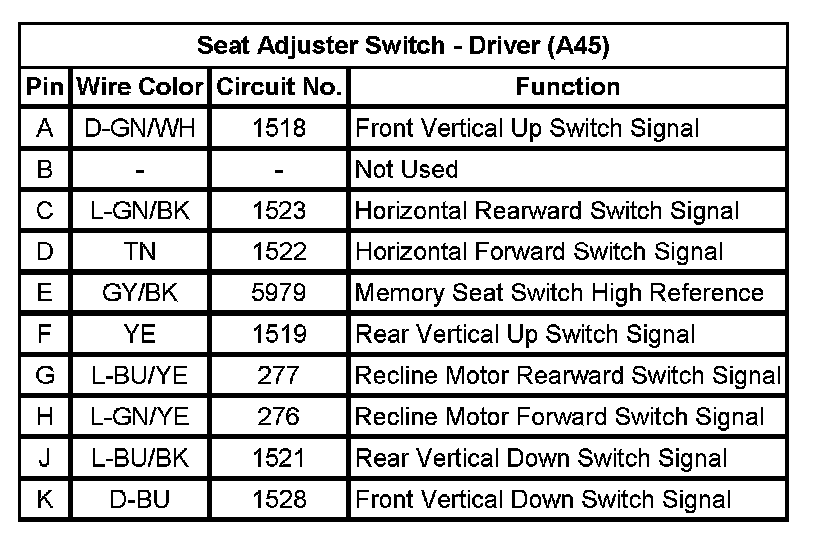

Seat Adjuster Switch - Driver (A45)

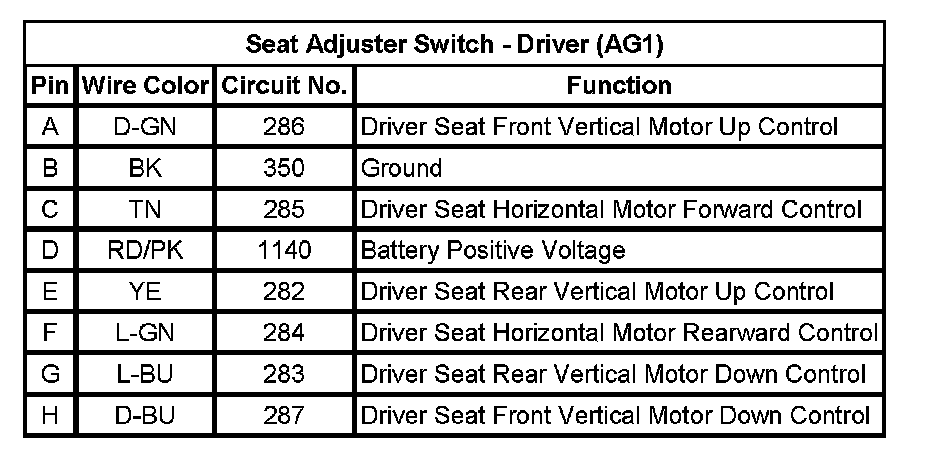

Seat Adjuster Switch - Driver (AG1)

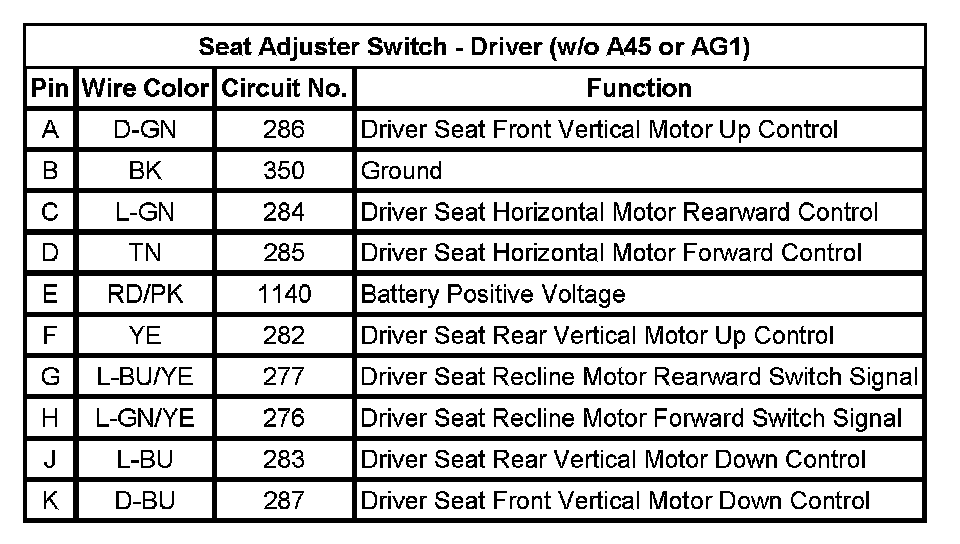

Seat Adjuster Switch - Driver (w/o A45 or AG1)

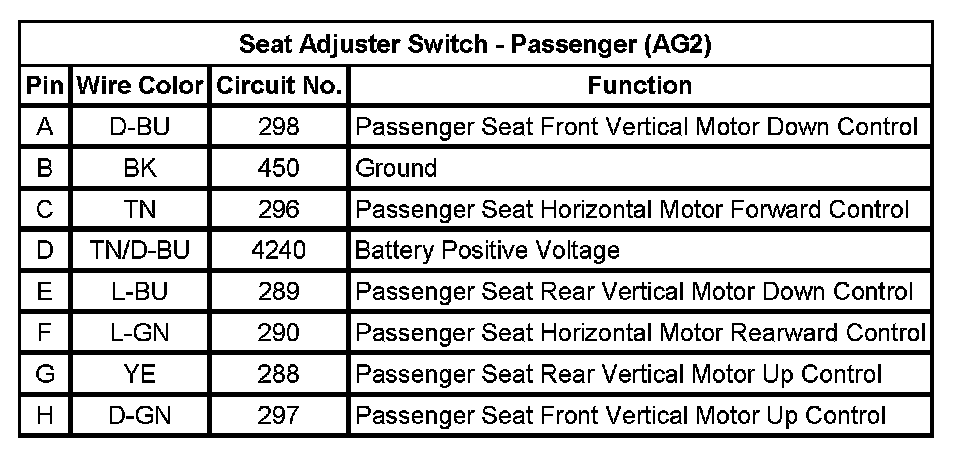

Seat Adjuster Switch - Passenger (AG2)

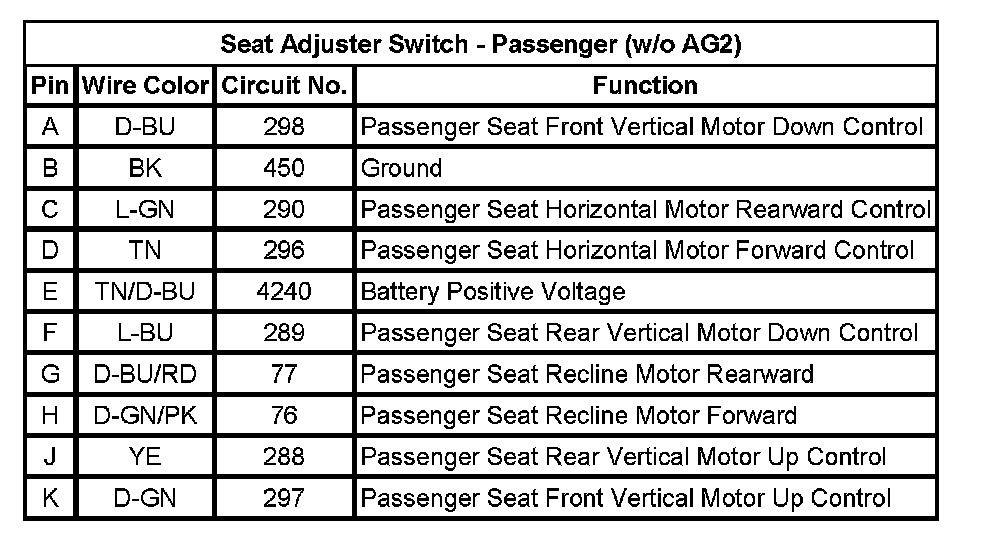

Seat Adjuster Switch - Passenger (w/o AG2)

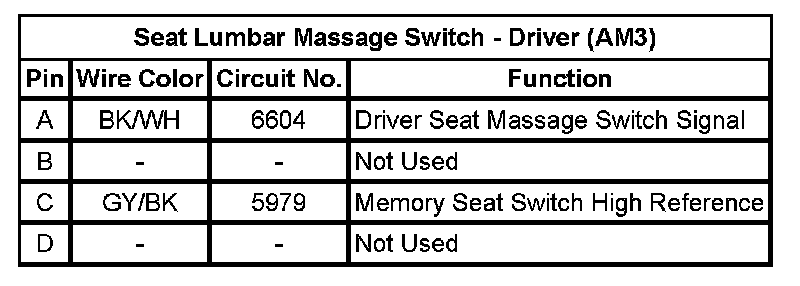

Seat Lumbar Massage Switch - Driver (AM3)

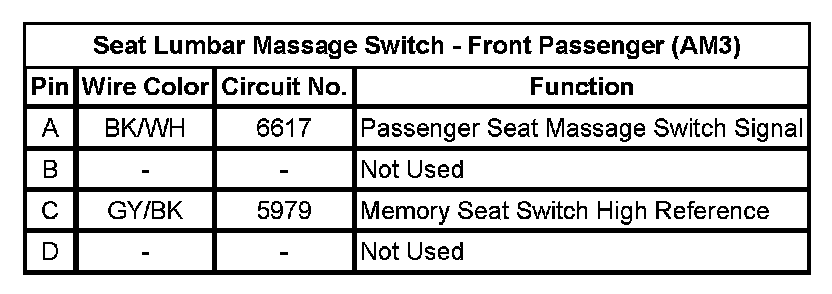

Seat Lumbar Massage Switch - Front Passenger (AM3)

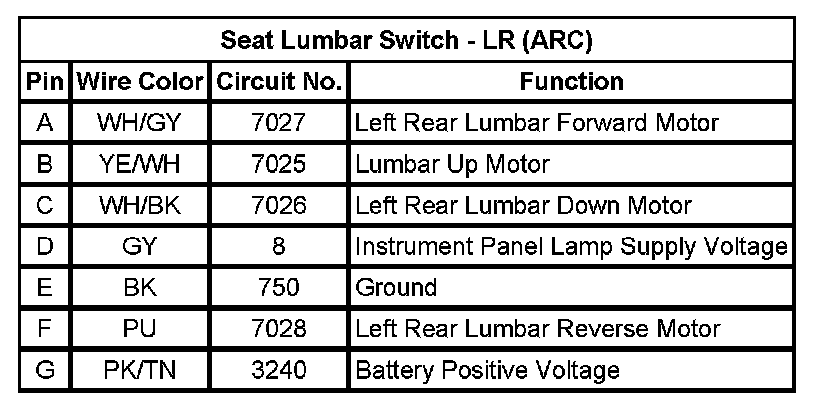

Seat Lumbar Switch - LR (ARC)

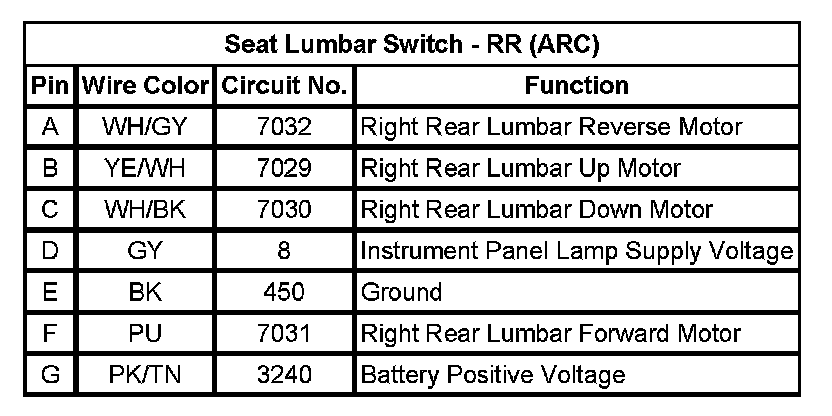

Seat Lumbar Switch - RR (ARC)
